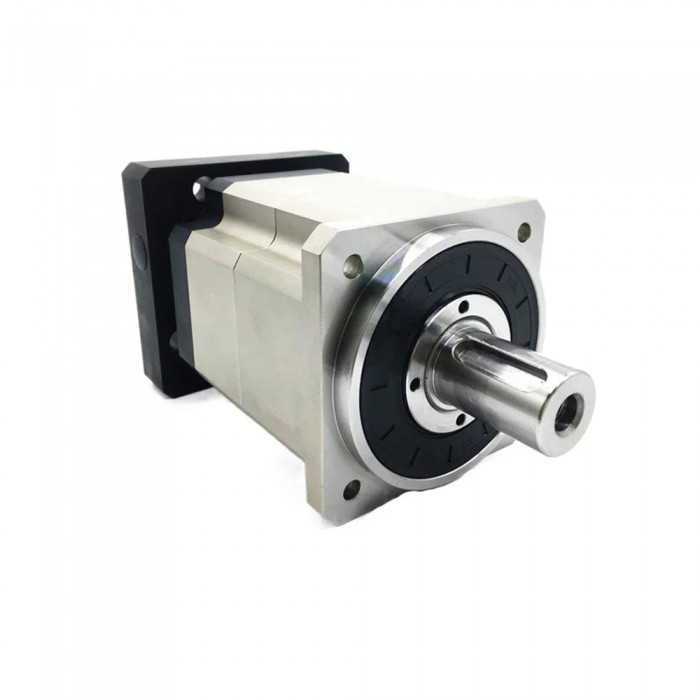

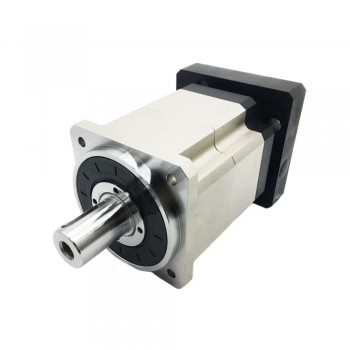

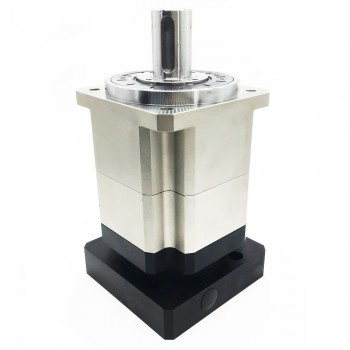

Helical Planetary Gearbox Speed Reducer for 19mm/22mm/24mm Input Servo Motor

Name: Helical Planetary Gearbox Speed Reducer for 19mm/22mm/24mm Input Servo Motor
Brand: HLTNC
SKU: PLG120-3-19-95-130
Price: 499.00 USD
Availability: InStock

NO.:PLG120-3-19-95-130
Post a review

Our Price:$499.00

Ratio:

Input Shaft:

Quantity:- +

Add To Cart

Add To My Favorites

Affiliate Link

Description Specification Custom Options Review

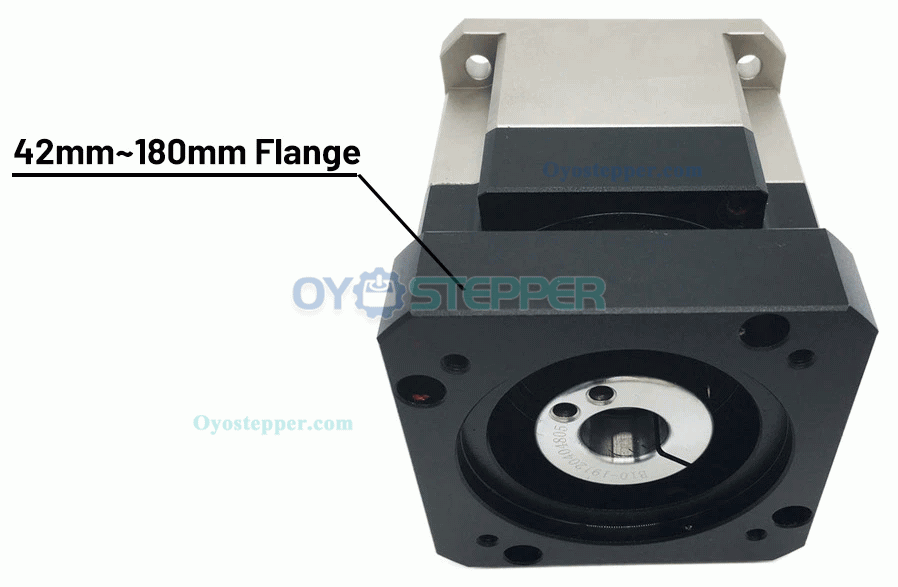

PLG120 Series Helical Planetary Gearbox 19mm/22mm/24mm Input Shaft for Nema42 /Nema 52 Svero Motor

Features:

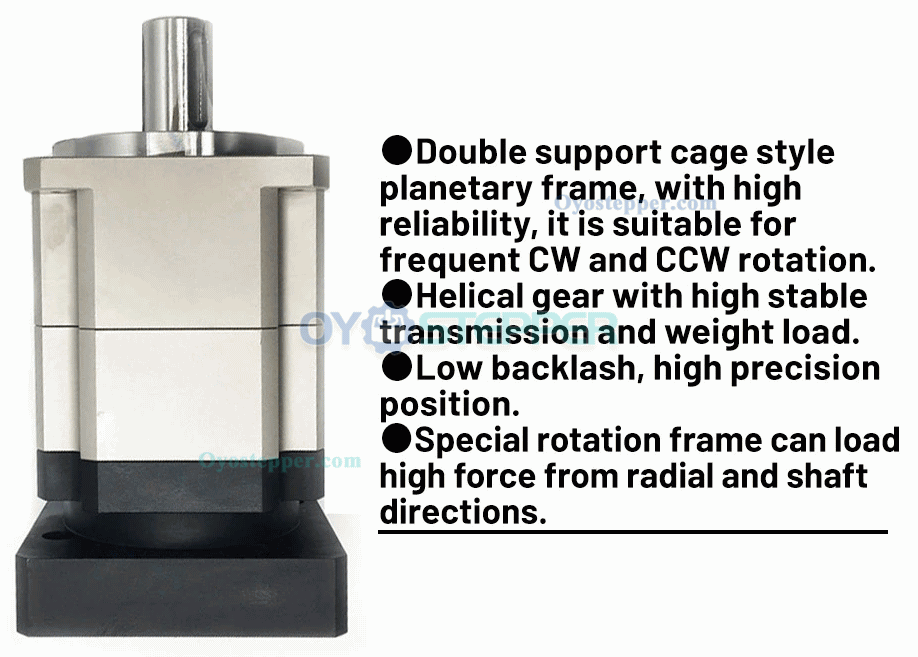

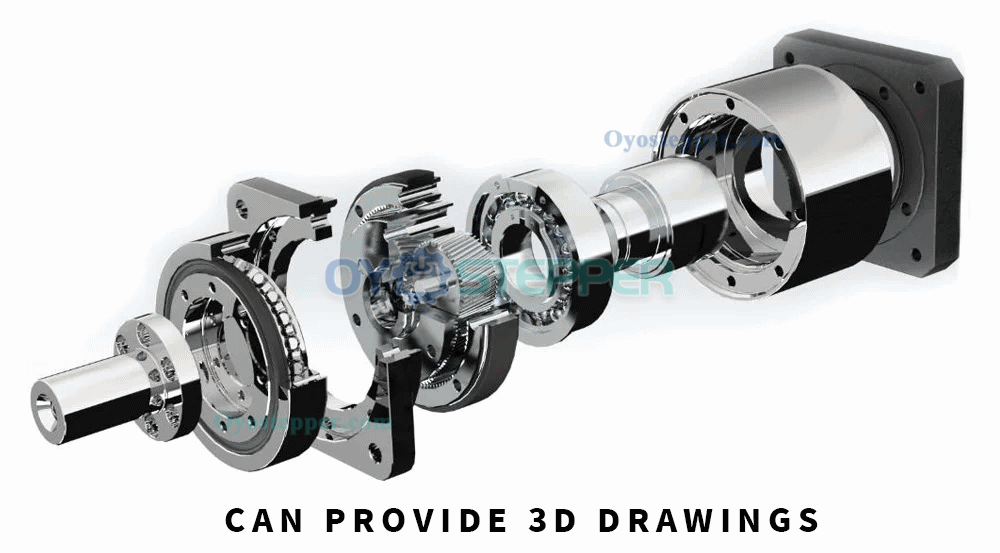

Double support cage style planetary frame, with high reliability, it is suitable for frequent CW and CCW rotation.

Helical gear with high stabletransmission and weight load.

Low backlash, high precision position.

Special rotation frame can load high force from radial and shaft directions.

Specifications:

Construction: Gearbox

Type: Planetary Reducer

Protect Feature: Drip-proof

Commutation: Brush

Efficiency: IE 1

Certification: CCC;

Package List:

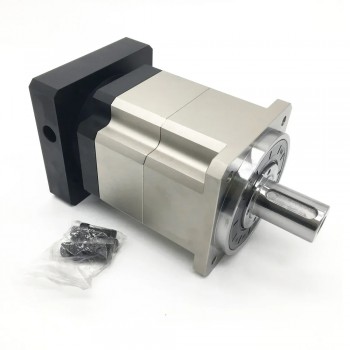

1* Planetary reducer

1* Key

4* Install screws

(Click on the model to jump→)				PLG042	PLG060	PLG090	PLG120	PLG140	PLG180
Max. Output Torque			Nm	2 Times Rated Output Torque
Instant Braking Torque			Nm	3 Times Rated Output Torque
Max Radial Torque			N	780	1530	3250	6700	9400	14500
Max Axis Torque			N	390	630	1300	3000	4700	7250
Torsional Stiffness			Nm/arcmin	2.5	6	12	23	47	130
Max Input Speed			rpm	8000	8000	8000	8000	6000	6000
Rated Input Speed			rpm	4000	5000	4000	4000	3000	3000
Noise			dB	≤56	≤58	≤60	≤65	≤68	≤68
Life time			h	20000
Full Load Efficiency			%	L1≥95%, L2≥90%

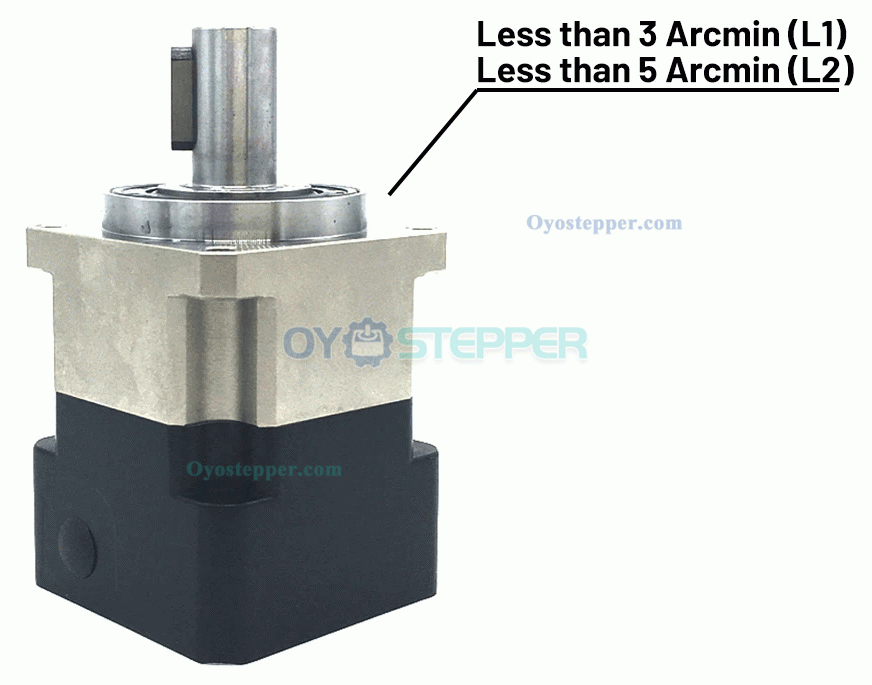

Backlash	PO	L1	arcmin	≤3	≤3	≤3	≤3	≤3	≤3
Backlash	PO	L2	arcmin	≤5	≤5	≤5	≤5	≤5	≤5
Moment of Inertia	L1	3:1	Kg.cm2	0.03	0.16	0.61	3.25	9.21	28.98
		4:1	Kg.cm2	0.03	0.14	0.48	2.74	7.54	23.67
		5:1	Kg.cm2	0.03	0.13	0.47	2.71	7.42	23.29
		7:1	Kg.cm2	0.03	0.13	0.45	2.62	7.14	22.48
		10:1	Kg.cm2	0.03	0.13	0.42	2.59	7.03	22.51
	L2	9:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		12:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		15:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		16:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		20:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		25:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		28:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		30:1	Kg.cm2	0.03	0.13	0.45	0.45	2.63	7.30
		35:1	Kg.cm2	0.03	0.13	0.45	0.45	2.43	7.10
		40:1	Kg.cm2	0.03	0.13	0.45	0.45	2.43	6.92
		50:1	Kg.cm2	0.03	0.13	0.40	0.40	2.39	6.92
		70:1	Kg.cm2	0.03	0.13	0.40	0.40	2.39	6.72
		100:1	Kg.cm2	0.03	0.13	0.40	0.40	2.39	6.72

Parameter	Stage	Ratio		PLG042	PLG060	PLG090	PLG120	PLG140	PLG180
Rated Output Torque (Nm)	L1	3:1		19	40	105	165	360	880
		4:1		19	45	130	230	480	880
		5:1		17	45	130	230	480	1100
		7:1		14	45	100	220	480	1100
		10:1		11	30	75	175	360	770
	L2	9:1		19	40	105	165	360	880
		12:1		19	40	105	165	360	880
		15:1		19	40	105	165	360	880
		16:1		19	45	110	230	480	880
		20:1		19	45	110	230	480	880
		25:1		17	45	110	230	480	1100
		28:1		19	45	110	220	480	1100
		30:1		19	40	105	165	360	880
		35:1		17	45	110	230	480	1100
		40:1		19	45	110	230	480	1100
		50:1		17	45	110	230	480	1100
		70:1		14	45	100	220	480	1100
		100:1		11	30	75	175	360	770
IP Degree		IP65
Operating Temp		-10℃~~90℃

Helical Planetary Gearbox Speed Reducer for 19mm/22mm/24mm Input Servo Motor

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Neme 17 Stepper Motor + Harmonic Gear Speed Reducer + Stepper Driver Kit
Next: Helical Gear Reducer Planetary Gearbox for Nema 23 Stepper Motor / 60mm Servo Motor

Physical Specification

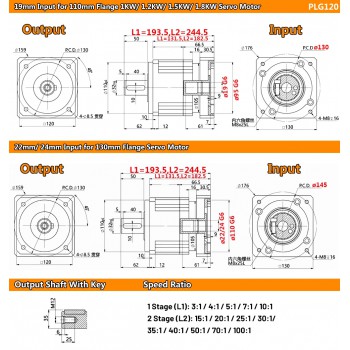

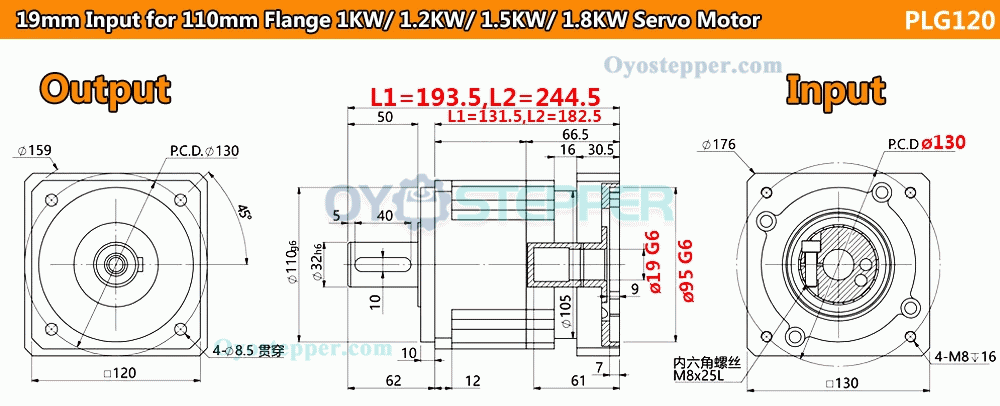

Frame Size(mm)	130 x 130
Gearbox Length(mm)	131 / 182.5

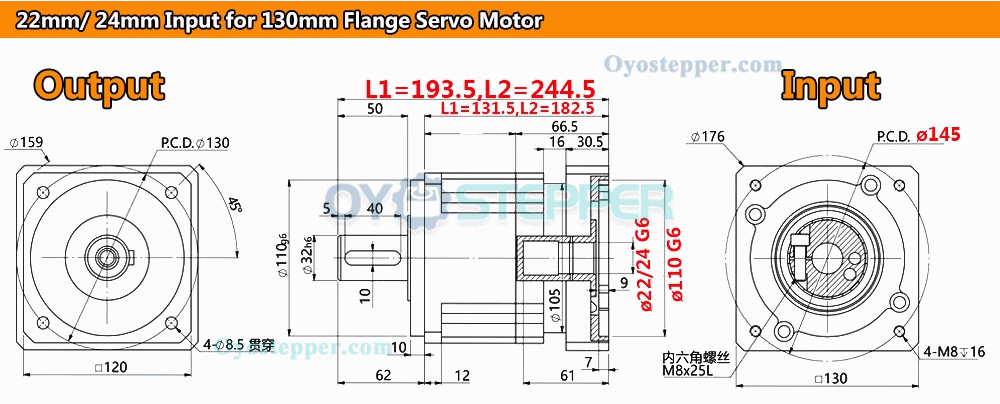

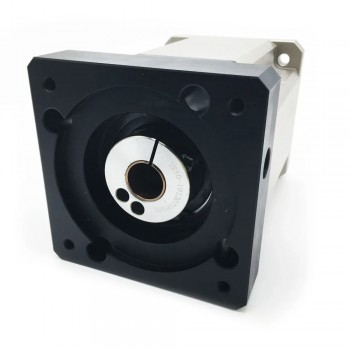

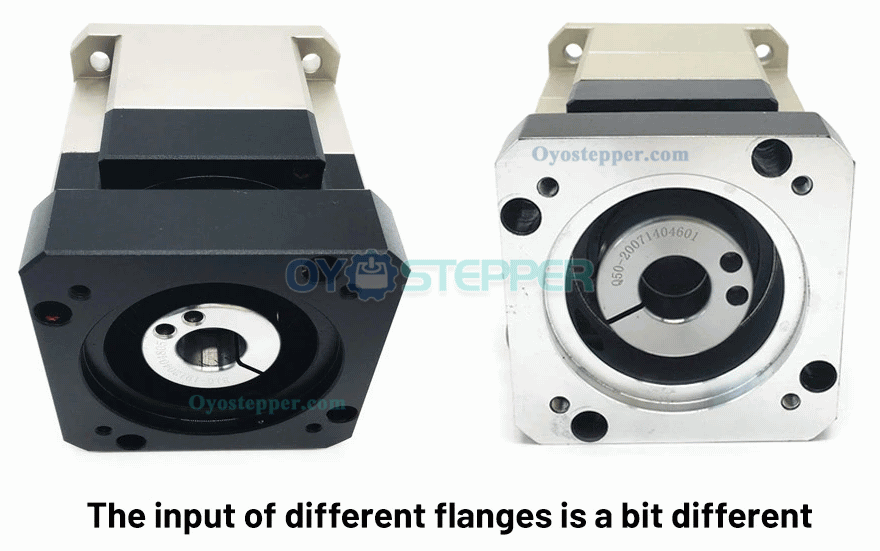

Input Shaft Diameter(mm)	19 / 22 / 24
Input Shaft Length(mm)	61
Output Shaft Diameter(mm)	32
Output Shaft Length(mm)	50
Suit for Motor	110 Frame Servo Motor / 130 Frame Servo Motor
Gearbox Type	Helical Planetary Gearbox

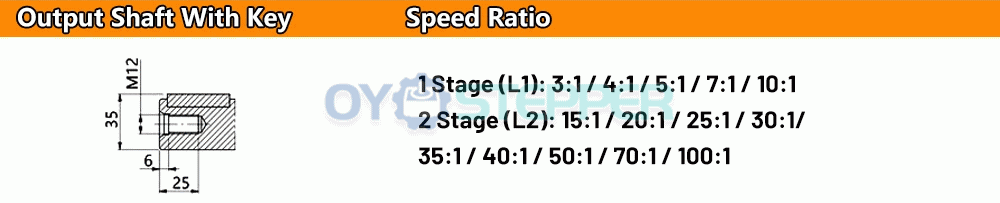

Gear Ratio	3:1 / 4:1 / 5:1 / 7:1 / 10:1 / 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1

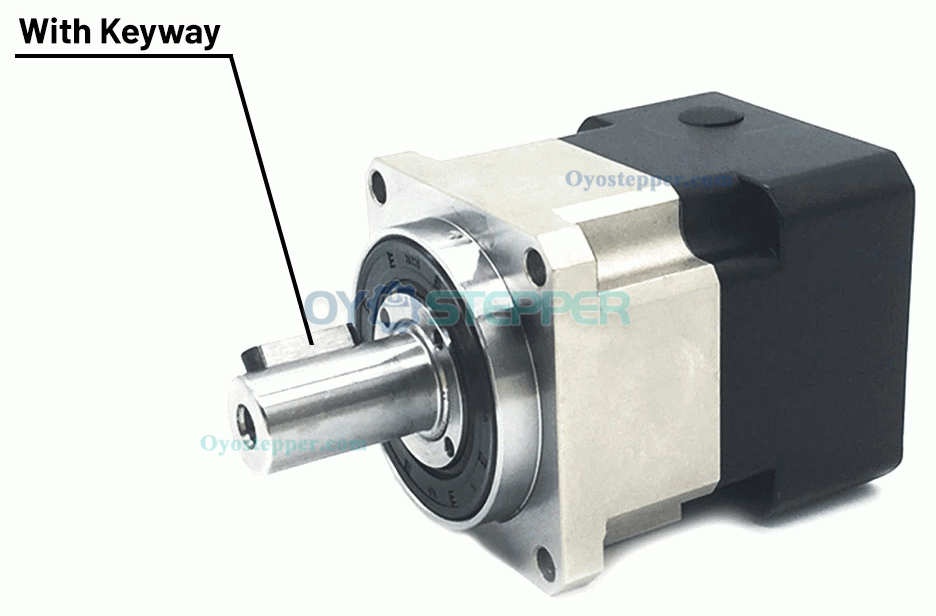

Output Shaft Type	Keyway
Product Series	PLG120
