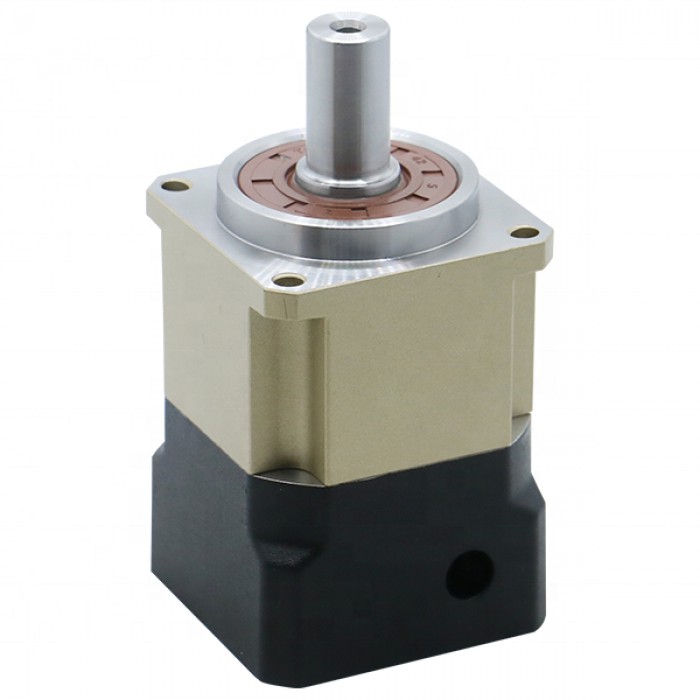

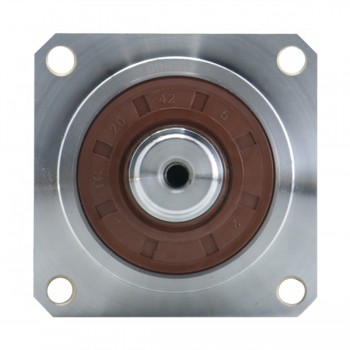

Precision Helical Planetary Gearbox Reducer For Nema 23, Nema 24 Stepper Motor 16mm Axis

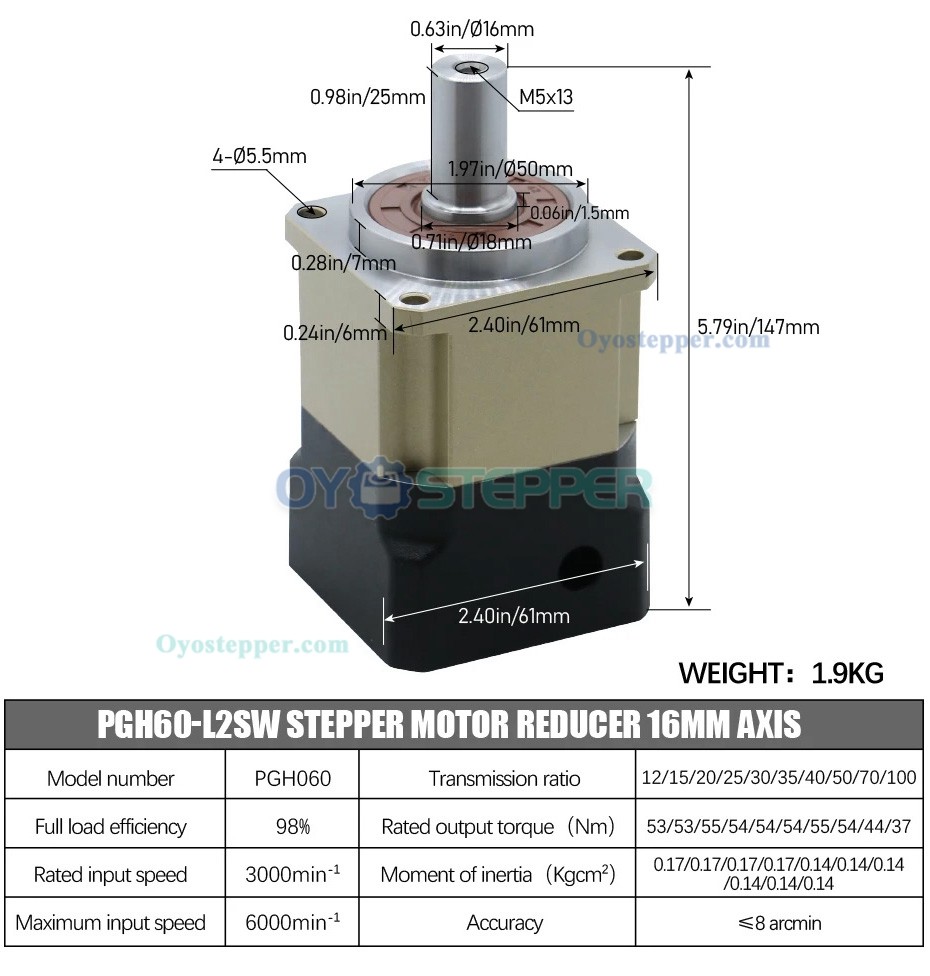

PGH60 Series Helical Planetary Gearbox Max.Ratio 100:1 PGH60-L2SW-Stepper Backlash 8 Arc-min for Nema 23,24 Stepper Motor
Gearbox Specifications:
Manufacturer Part Number: PGH60-L2SW-Stepper
Gearbox Type: Helical Planetary
Efficiency: 98%
Backlash at No-load: <=8 arcmin
Transmission ratio:12/15/20/25/30/40/50/70/100
Rated output torque(Nm):53/53/55/54/54/54/55/54/44/37
Moment of inertia(Kgc㎡):0.17/0.17/0.17/0.17/0.14/0.14/0.14/0.14/0.14/0.14
Rated input speed:3000min-1
Maximum input speed:6000min-1

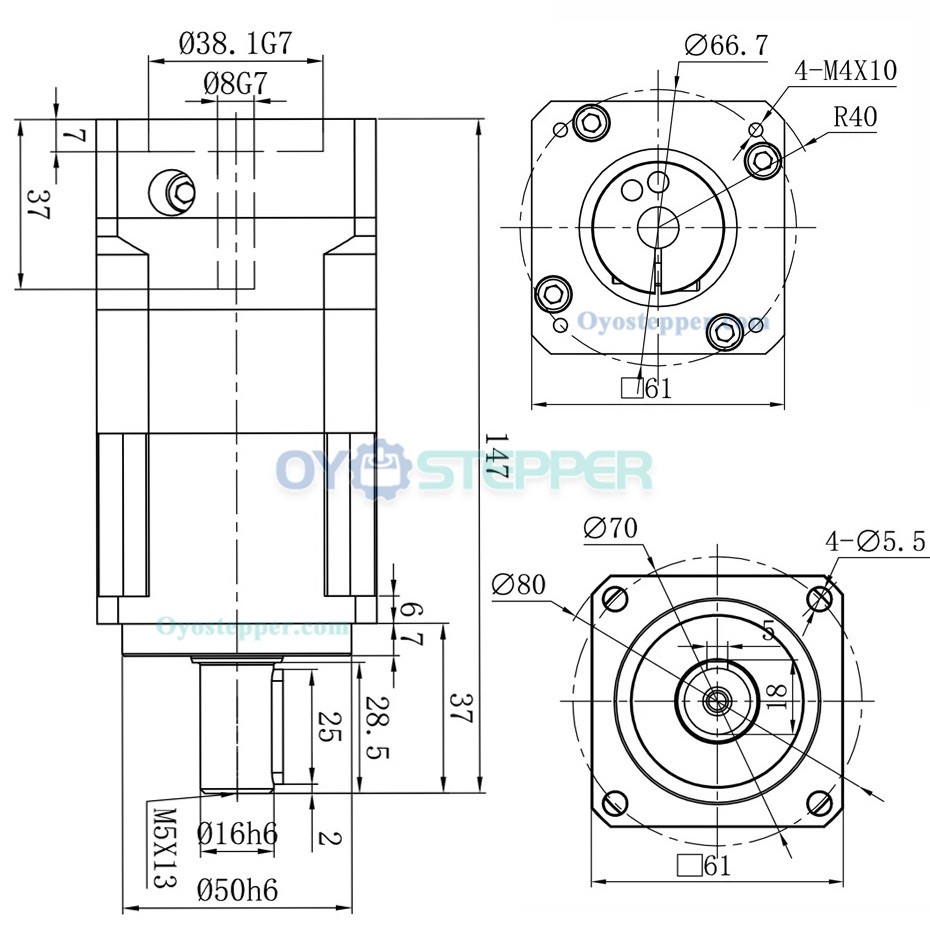

Physical Specifications:
Frame Size: 61 x 61 mm
Gearbox Length: 110 mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ16 mm
Output Shaft Length: 28.5 mm
Input Shaft Diameter: Φ8 mm
Input Shaft Length: 37 mm
(2).jpg "Precision Helical Planetary Gearbox Reducer For Nema 23, Nema 24 Stepper Motor 16mm Axis")
.jpg "Precision Helical Planetary Gearbox Reducer For Nema 23, Nema 24 Stepper Motor 16mm Axis")
.jpg "Precision Helical Planetary Gearbox Reducer For Nema 23, Nema 24 Stepper Motor 16mm Axis")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Gear Ratio | 12:1 / 15:1 / 20:1 / 25:1 / 30:1 / 40:1 / 50:1 / 70:1 / 100:1 |
| Suit for Motor | Nema 23 / Nema 24 |
| Frame Size(mm) | 61 x 61 |
| Gearbox Length(mm) | 110 |
| Input Shaft Diameter(mm) | 8 |
| Input Shaft Length(mm) | 37 |
| Output Shaft Diameter(mm) | 16 |
| Output Shaft Length(mm) | 28.5 |
| Gearbox Type | Helical Planetary |
| Backlash at No-load | <=8 arcmin |
| Output Shaft Type | Keyway Shaft |
| Product Series | PGH60 Series |
