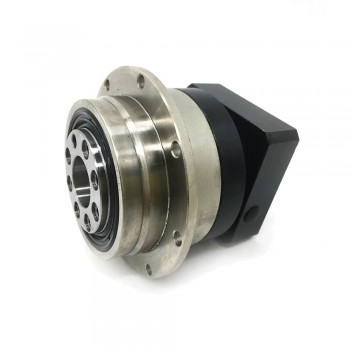

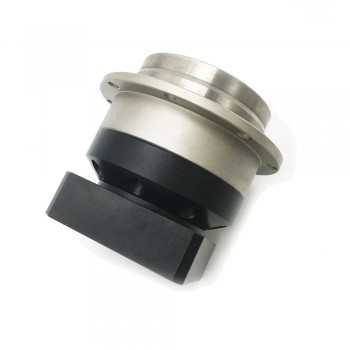

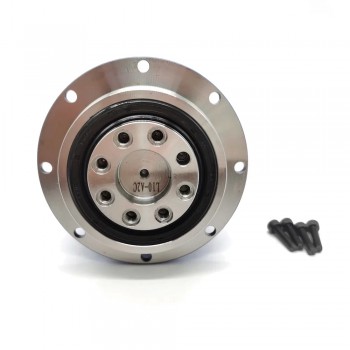

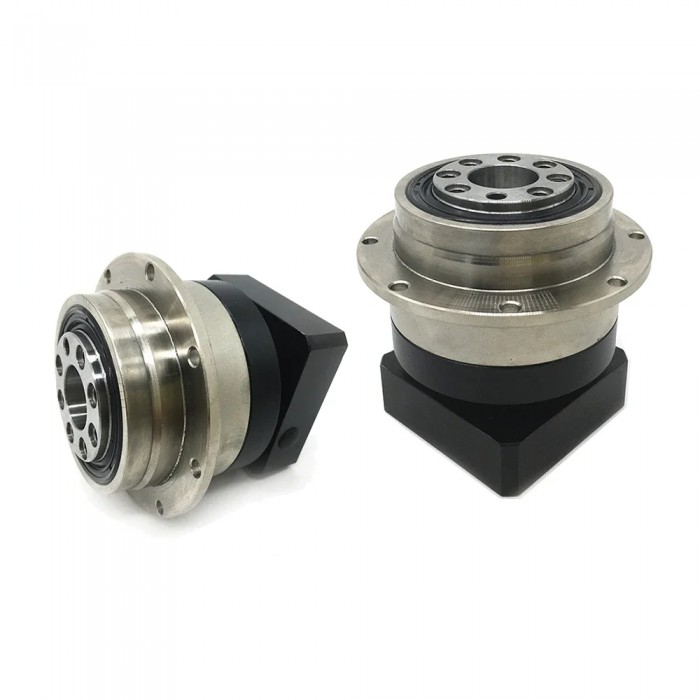

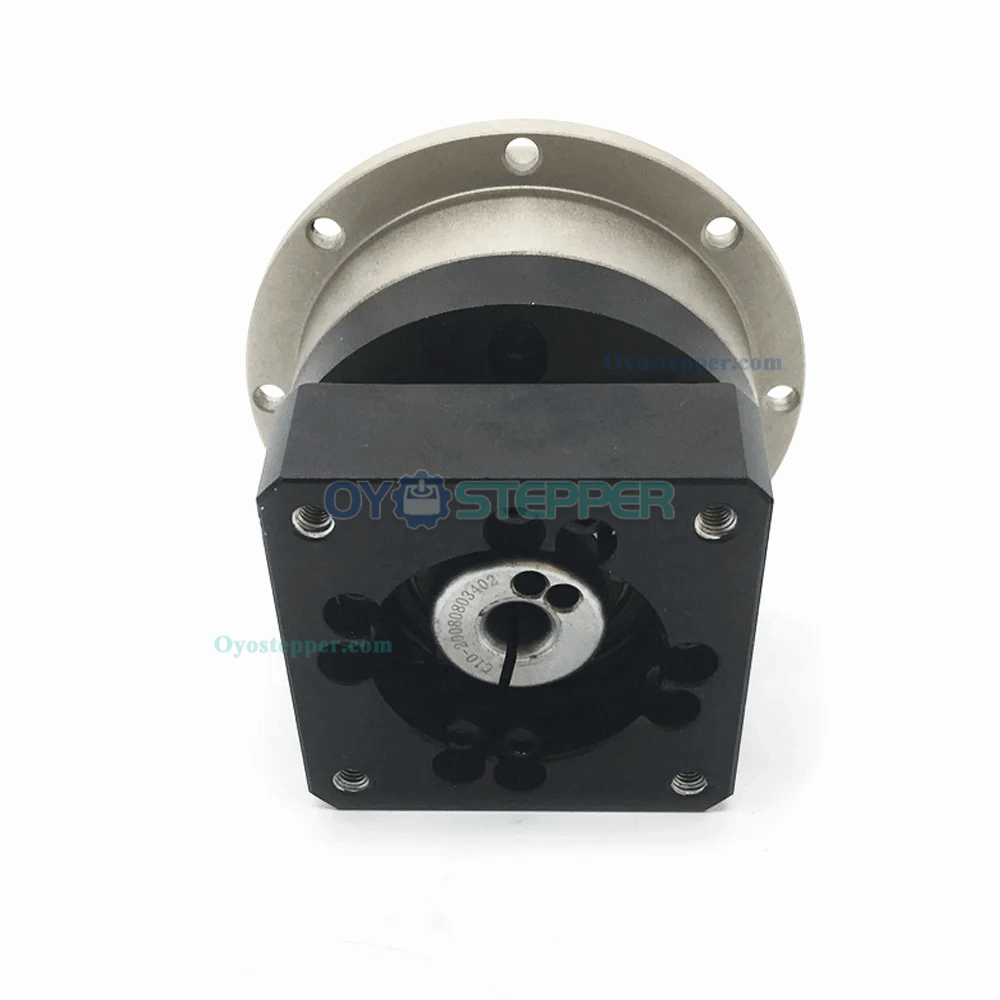

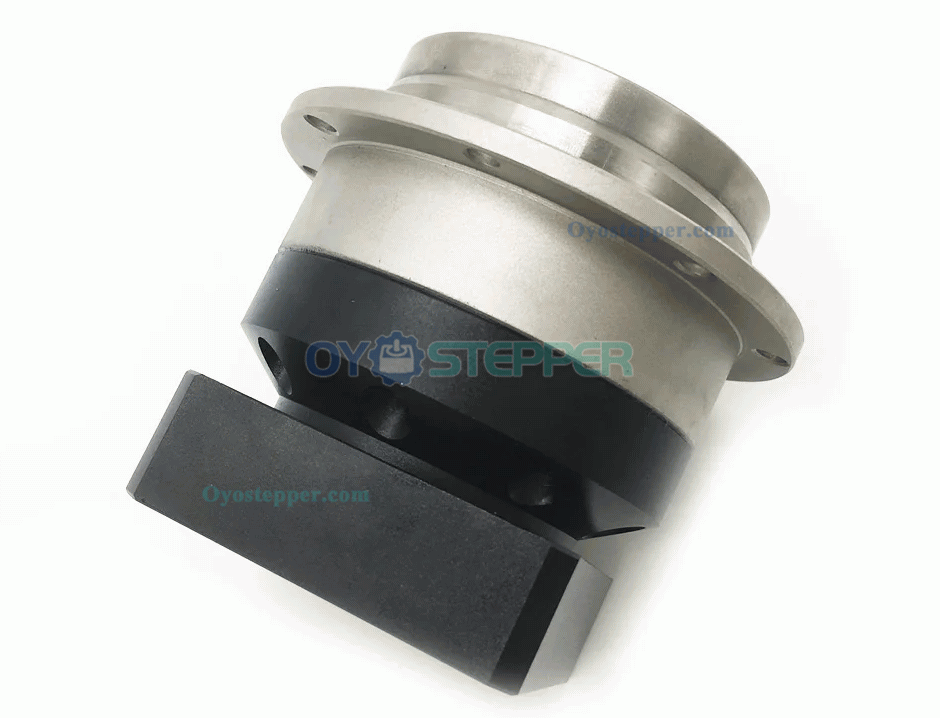

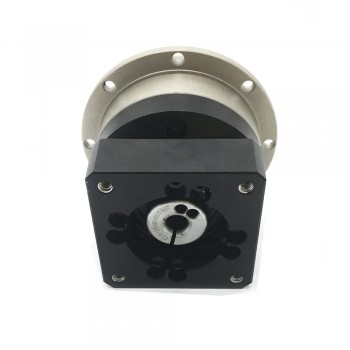

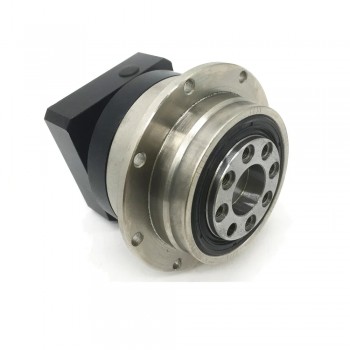

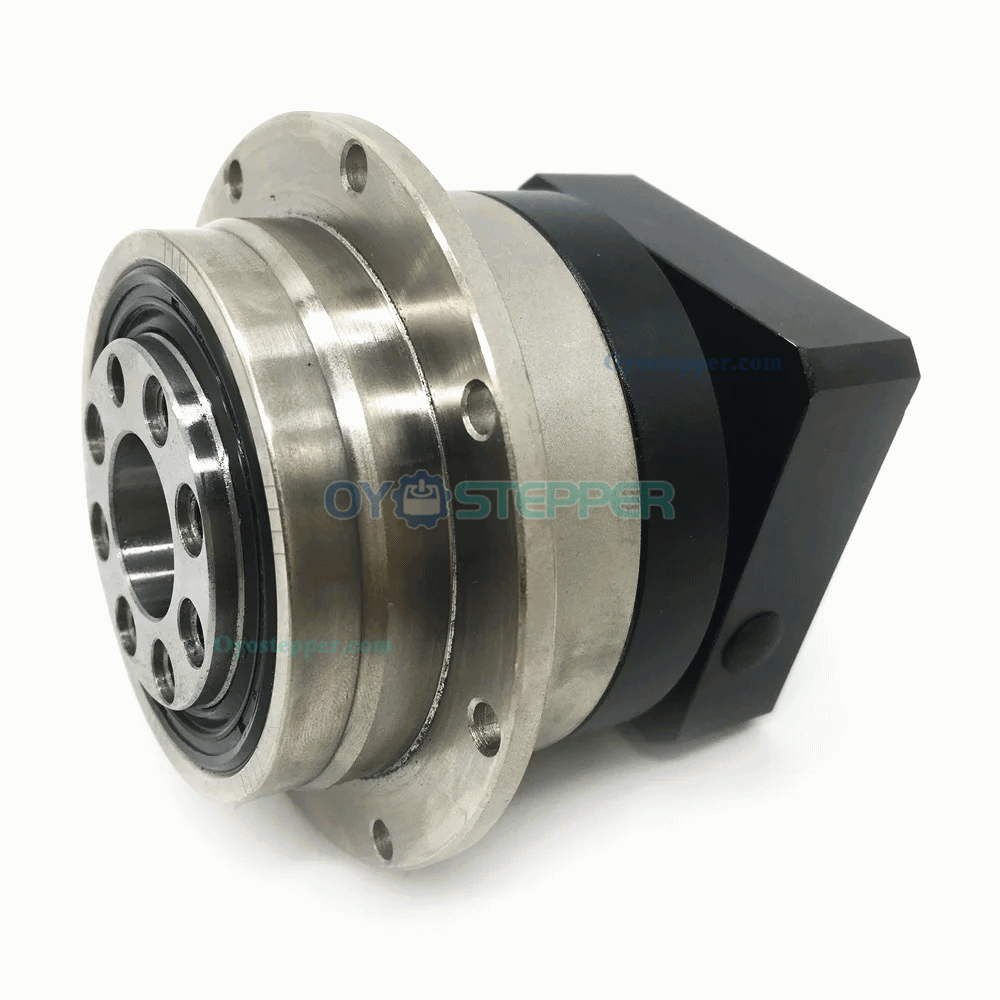

Helical Gear Planetary Gearbox Speed Reducer NEMA34 86mm Stepper Motor / 90mm Servo Motor
PLX090 Series Helical Flange Plate Output Planetary Gearbox for Nema NEMA34 Stepper Motor / 90mm Servo Motor
Features:
1. The unique circular flange output mode provides greater installation freedom.
2. The body size is shorter and the installation space requirement is low.
3. Low return clearance, high precision and more precise positioning.
4. Double-supported cage type planet carrier structure, it can adapt to frequent positive and negative rotation.
5. The turret is equipped with tapered roller shaft to meet the requirements of heavy load conditions.
Specifications:
Usage: FAN,Home Appliance,Other
Model Number: PLX090
Construction: Helical
Type: Servo Motor
Protect Feature: Drip-proof
Commutation: Brush
Efficiency: IE 1
Output Power: 97%
Certification: CE
Input Shaft: 12.7/16/19mm
Max radial force: 4100N
Max axial force: 1025N
Max input speed: 6000rpm
Rated input speed: 3000rpm
Transmission efficiency: L1≥ 95% L2≥90%

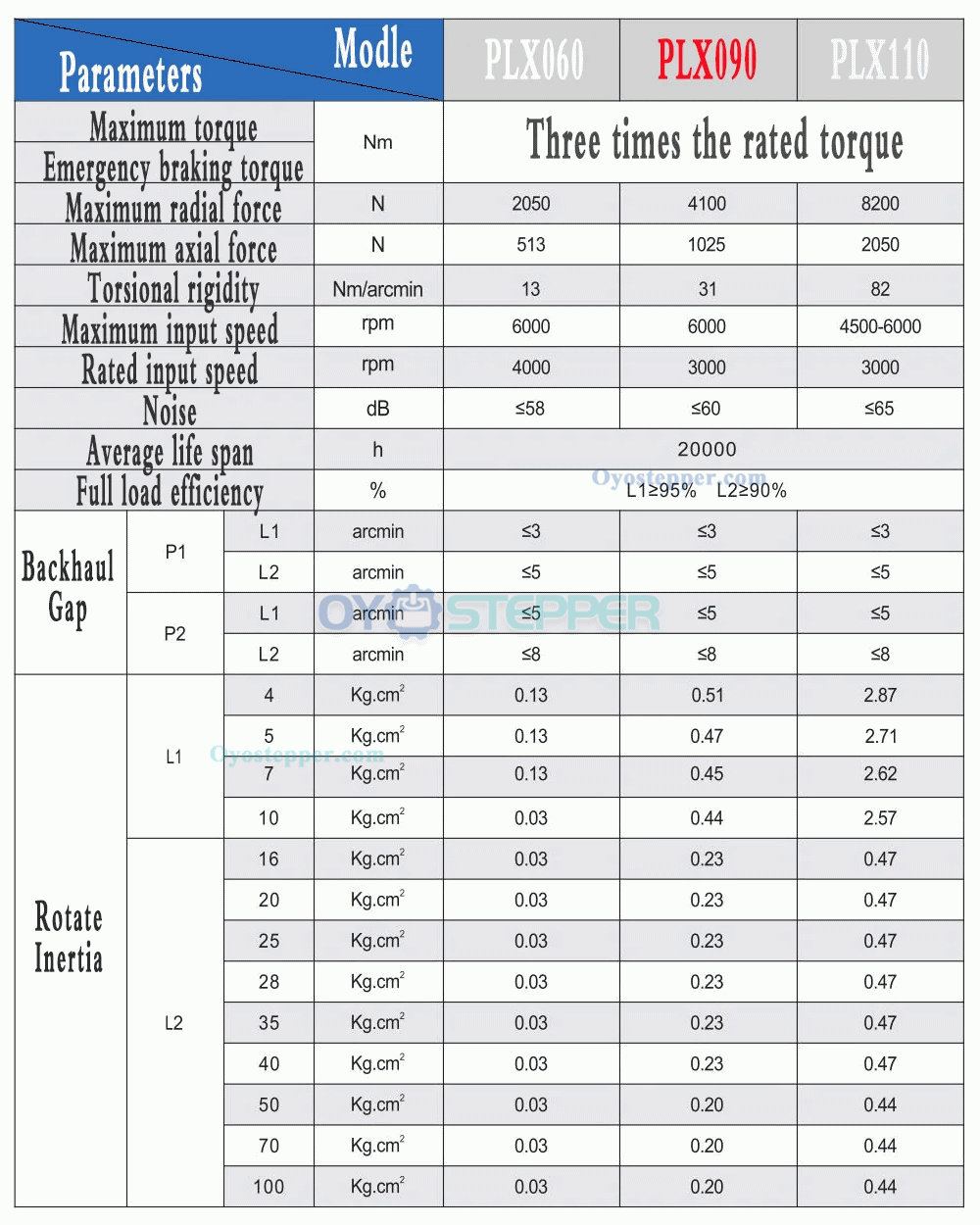

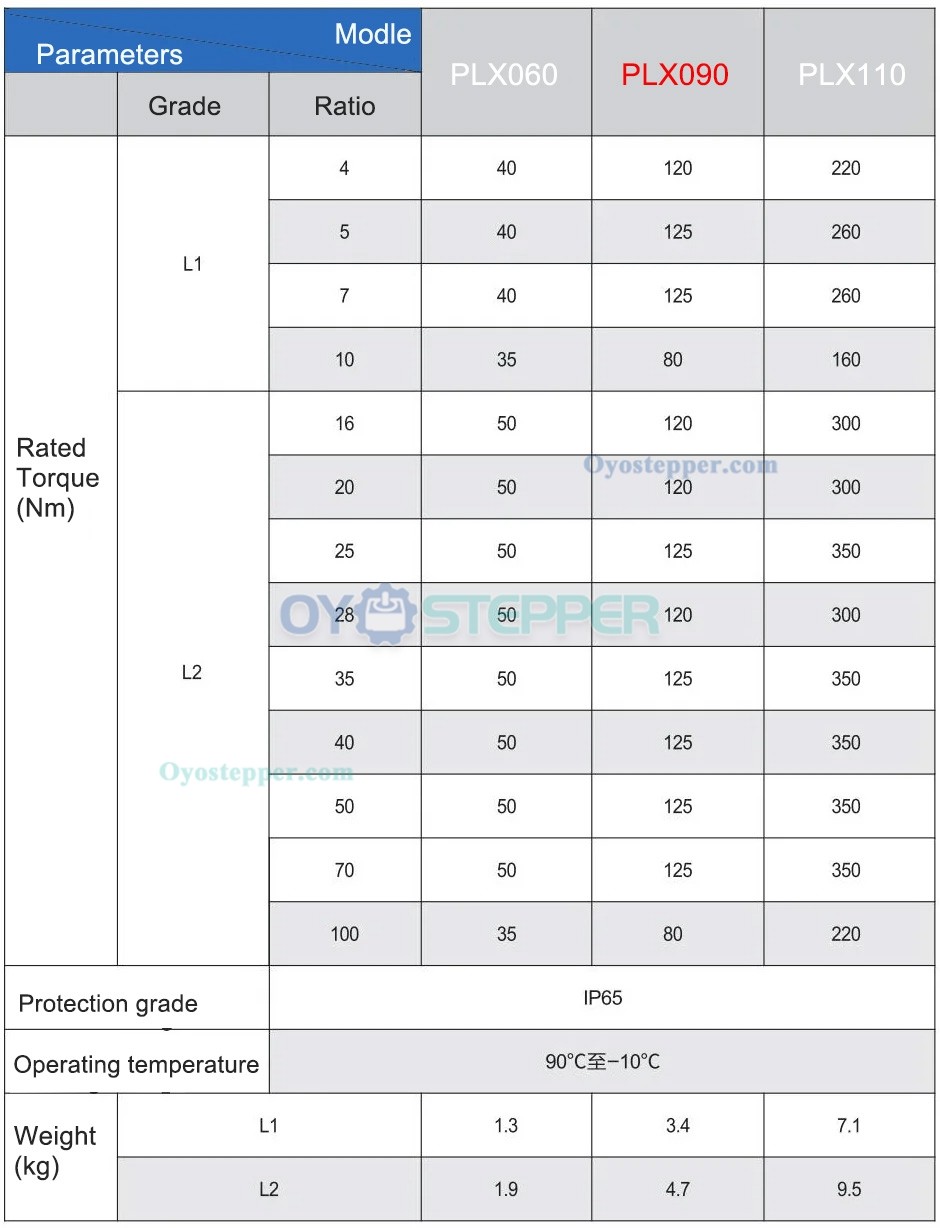

Parameter:
Model: PLX090
Input Shaft: 12.7/16/19mm
Backlash Precision: Less than 5 Arcmin
Gear type: Helical Gear
Maximum torque:Three times the rated torque
Emergency braking torque:Three times the rated torque
Max radial force: 4100N
Max axial force : 1025N
Max input speed: 6000rpm
Rated input speed: 3000rpm
Transmission efficiency: L1≥ 95% L2≥90%
Noise: less than 60dB
Protection level:IP65

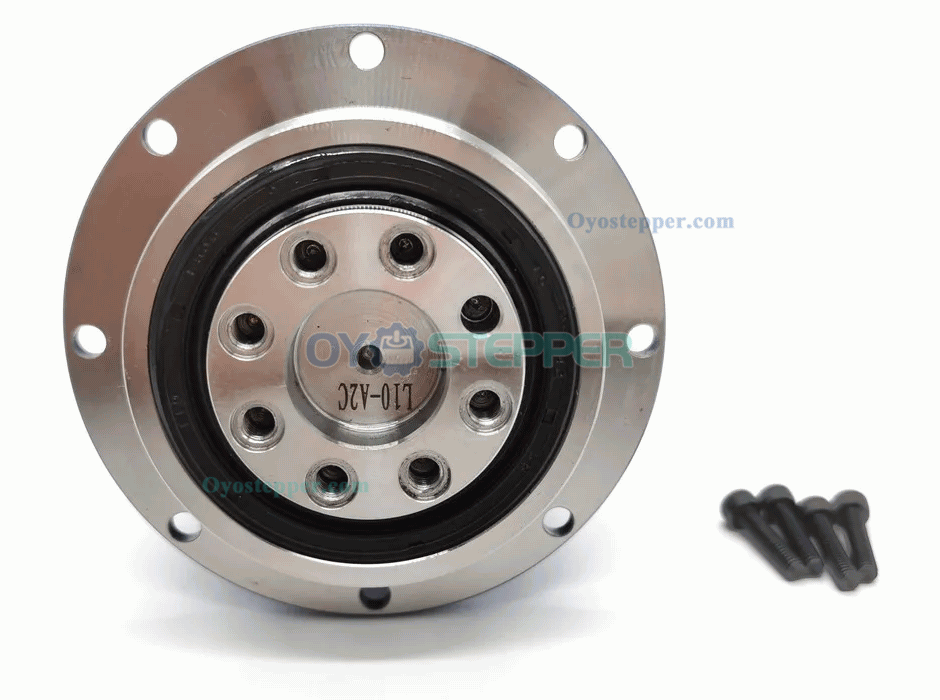

Package List:
1X Planetary reducer
1X Key
4X Install screw.
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

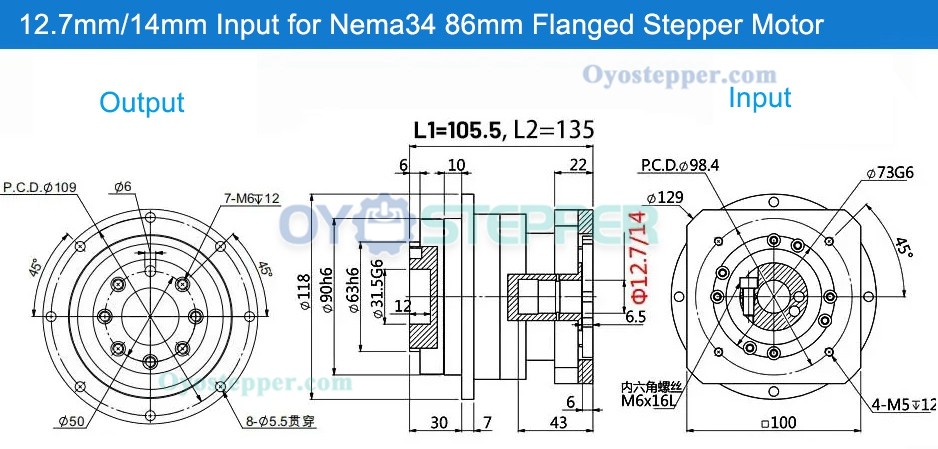

| Physical Specification | |
|---|---|
| Frame Size(mm) | 90 x 90 |
| Gearbox Length(mm) | 105.5 / 135 |

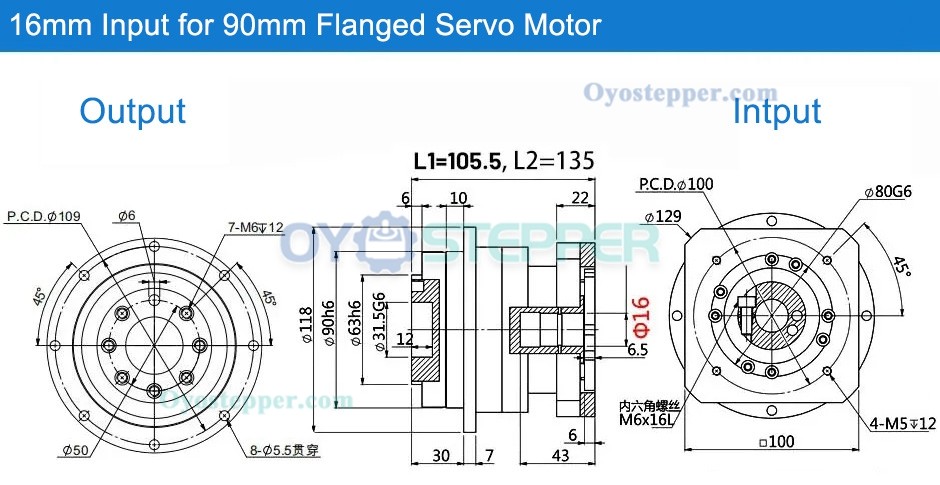

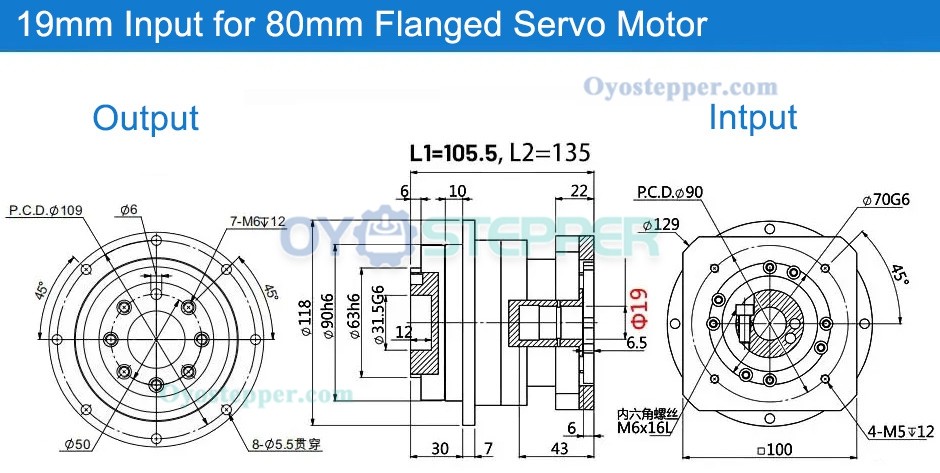

| Input Shaft Diameter(mm) | 12.7 / 14 / 16 / 19 |
| Input Shaft Length(mm) | 43 |
| Suit for Motor | Nema 34 Stepper Motor / 80 Frame Servo Motor / 90 Frame Servo Motor |
| Gearbox Type | Helical Planetary Gearbox |

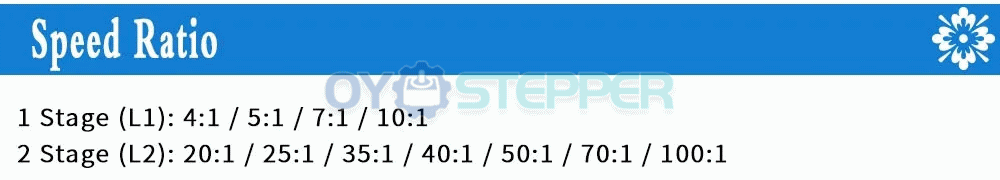

| Gear Ratio | 4:1 / 5:1 / 7:1 / 10:1 / 20:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 |
| Output Shaft Type | Output Bore |
| Output Bore Diameter(mm) | 31.5 |
