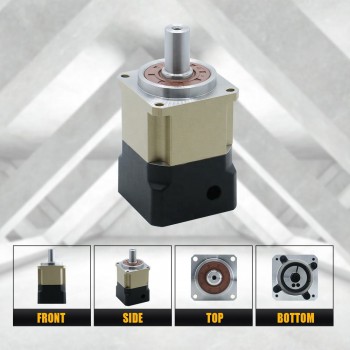

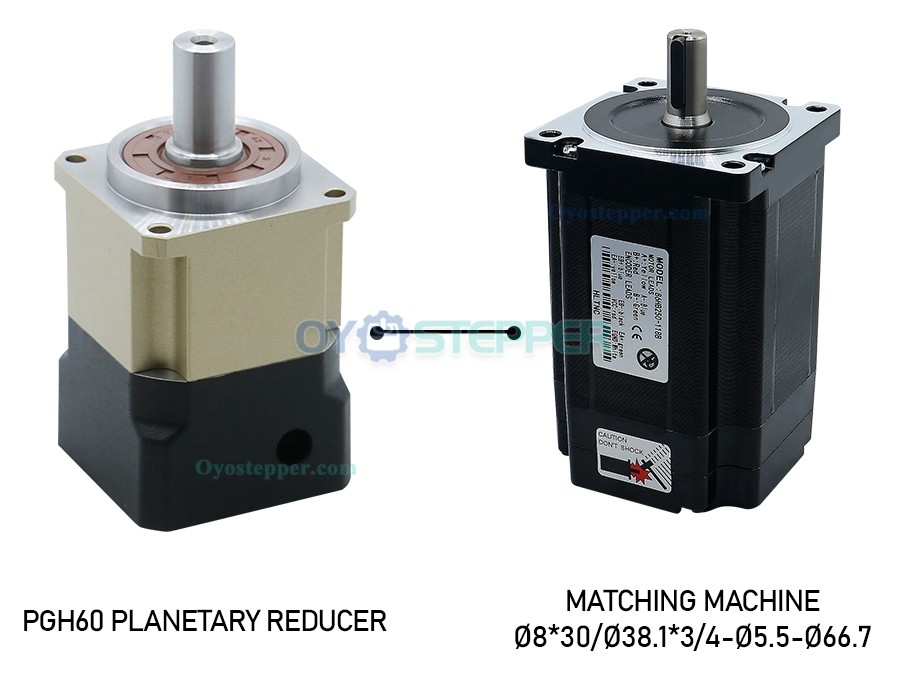

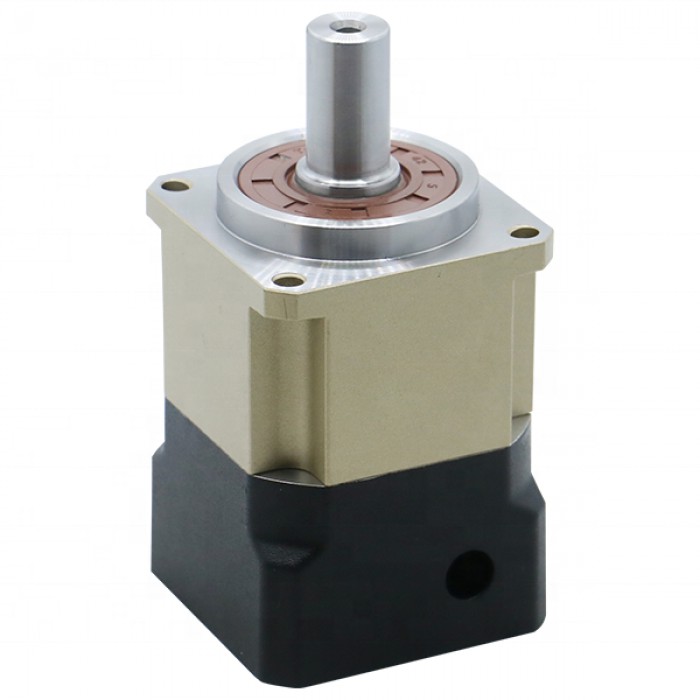

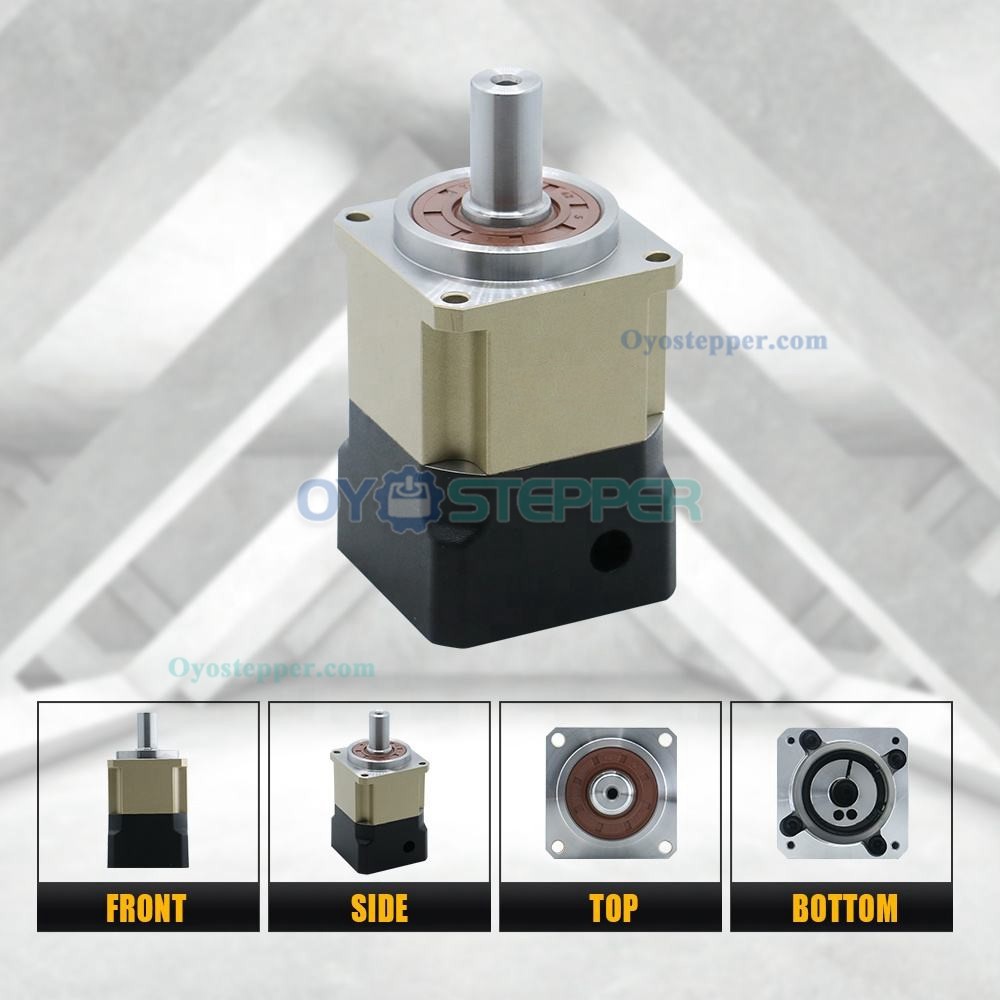

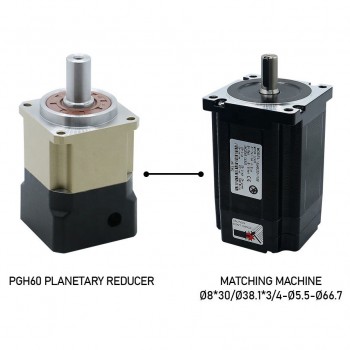

Helical Planetary Gearbox Speed Reducer For Nema 23, Nema 24 Servo Motor 14mm Axis
PGH60 Series Helical Planetary Gearbox Max.Ratio 100:1 PGH60-L2SW-SERVO Backlash 8 Arc-min for Nema 23,24 Servo Motor

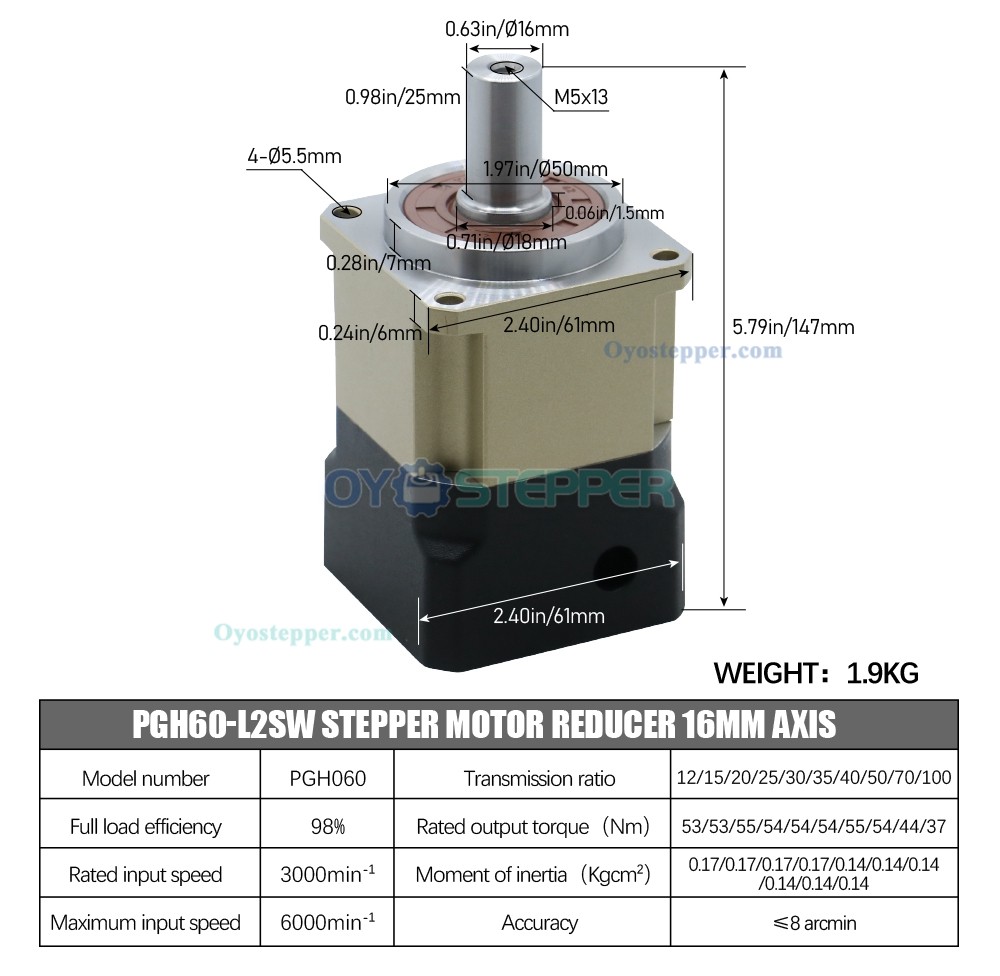

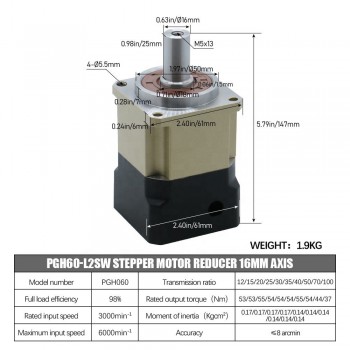

Gearbox Specifications:
Manufacturer Part Number: PGH60-L2SW-SERVO
Gearbox Type: Helical Planetary
Efficiency: 98%
Backlash at No-load: <=8 arcmin
Transmission ratio:12/15/20/25/30/35/40/50/70/100
Rated output torque(Nm):53/53/55/54/54/55/44/37
Moment of inertia(Kgc㎡):0.17/0.17/0.17/0.17/0.14/0.14/0.14/0.14/0.14/0.14
Rated input speed:3000min-1
Maximum input speed:6000min-1

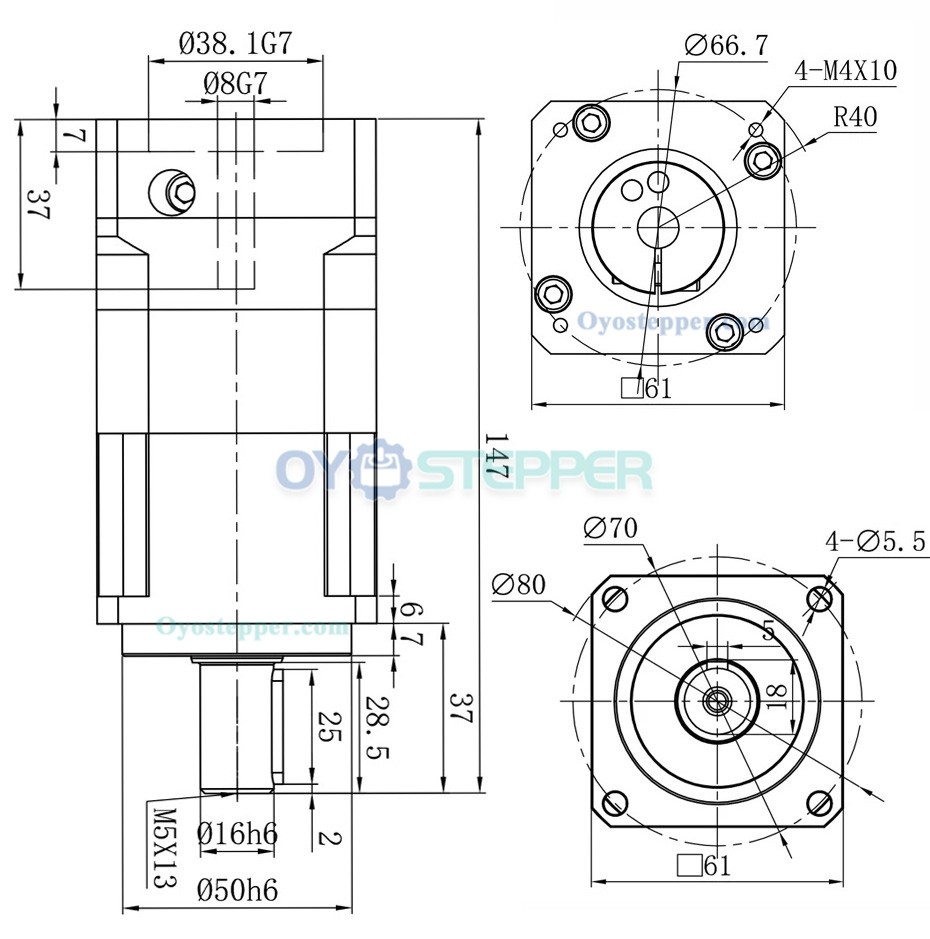

Physical Specifications:
Frame Size: 61 x 61 mm
Gearbox Length: 110 mm

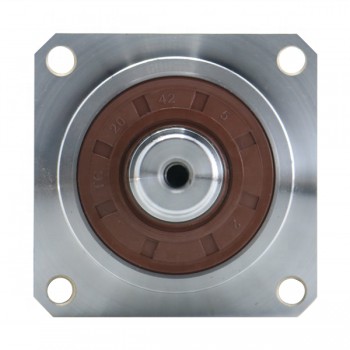

Output Shaft Type: Key way
Output Shaft Diameter: Φ14 mm
Output Shaft Length: 28.5 mm
Input Shaft Diameter: Φ14 mm
Input Shaft Length: 34.5 mm
(1).jpg "Helical Planetary Gearbox Speed Reducer For Nema 23, Nema 24 Servo Motor 14mm Axis")
(1).jpg "Helical Planetary Gearbox Speed Reducer For Nema 23, Nema 24 Servo Motor 14mm Axis")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Weight(g) | 1900 |
| Frame Size(mm) | 61 x 61 |
| Gearbox Length(mm) | 110 |
| Input Shaft Diameter(mm) | 14 |
| Input Shaft Length(mm) | 34.5 |
| Output Shaft Diameter(mm) | 14 |
| Output Shaft Length(mm) | 28.5 |
| Gearbox Type | Helical Planetary |
| Backlash at No-load | <=8 arcmin |
| Output Shaft Type | Keyway Shaft |
| Product Series | PGH60 Series |
| Gear Ratio | 12:1/15:1/20:1/25:1/30:1/35:1/40:1/50:1/70:1/100:1 |
