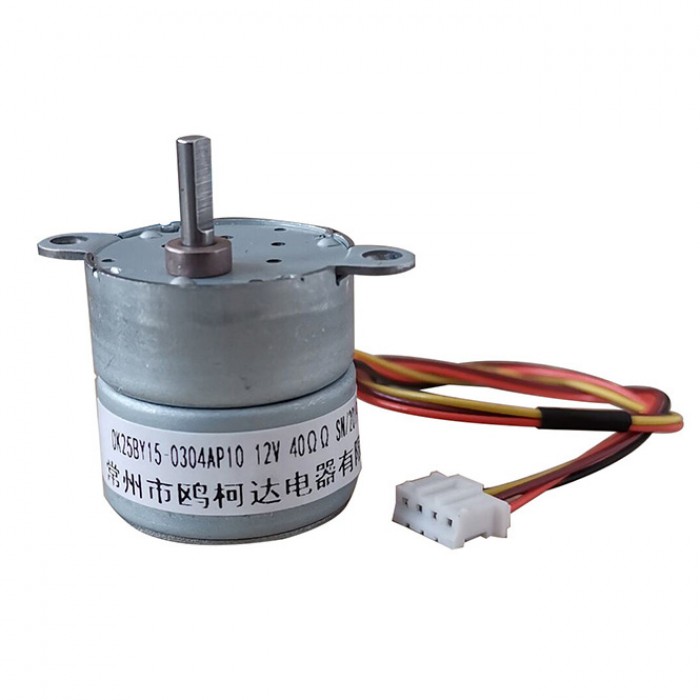

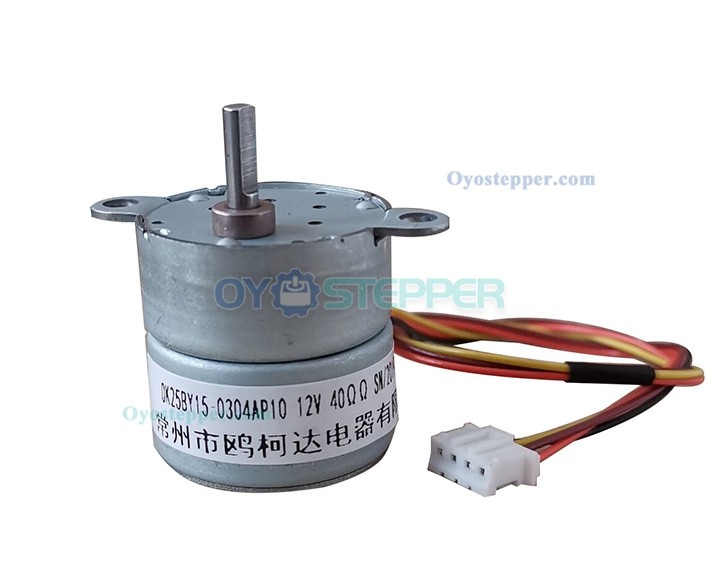

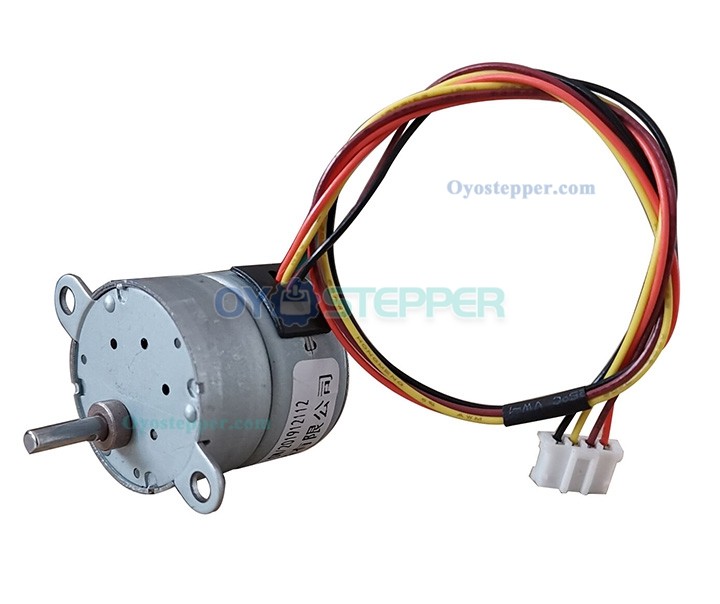

Oukeda Permanent Magnet PM Stepper Motor with Gearbox 5:1 /10:1 7.5 Deg 12V 2 Phase Φ25 mm
Oukeda Permanent Magnet PM Stepper Motor with Gearbox 5:1 /10:1 7.5 Deg 12V 2 Phase Φ25 mm

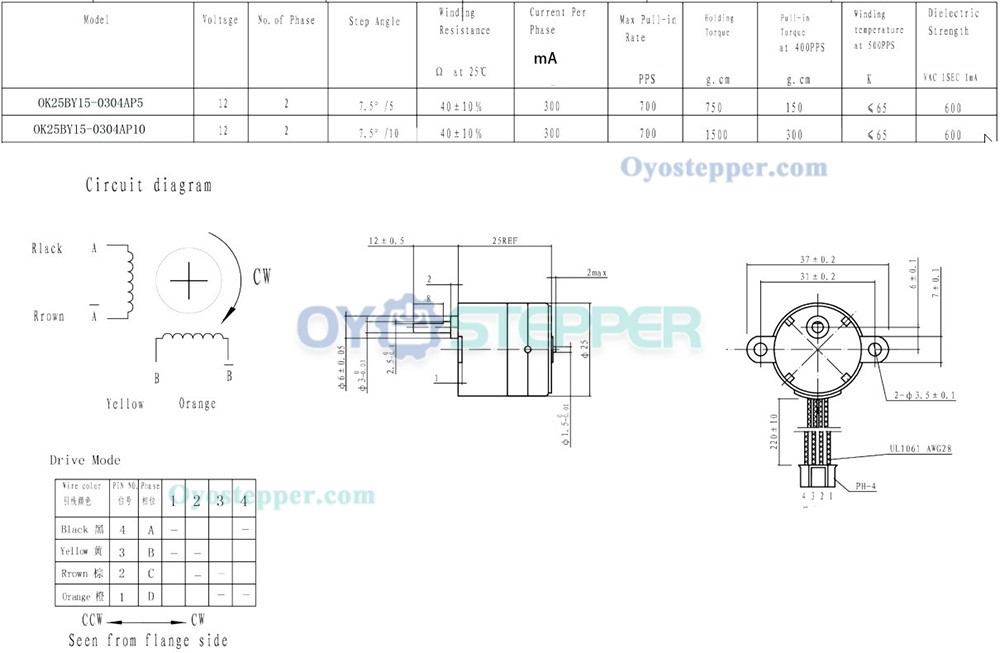

Electrical Specification:
Manufacturer Part Number:OK25BY15-0304AP5
Motor Type: PM Stepper Motor
Phase: 2
Step Angle: 7.5 deg
Phase Current: 0.3A
Phase Voltage:12VDC
Holding Torque: 7.35Ncm(10.40 oz.in)
Phase Resistance: 40 ± 10% ohms(25 ℃)
Inductance: 17 mH ± 20%
Physical Specification:
Frame Size: Φ25 mm
Body Length:25 mm
Shaft Diameter: Φ3 mm
Shaft Length: 12 mm
D-cut Length:8mm
Gear Ratio: 5:1
Number of Leads:4
Lead Length: 240 mm
Weight:50g;
Electrical Specification:
Manufacturer Part Number:OK25BY15-0304AP10
Motor Type: PM Stepper Motor
Phase: 2
Step Angle: 7.5 deg
Phase Current: 0.3A
Phase Voltage:12VDC
Holding Torque: 14.70Ncm(20.80 oz.in)
Phase Resistance: 40 ± 10% ohms(25 ℃)
Inductance: 17 mH ± 20%
Physical Specification:
Frame Size: Φ25 mm
Body Length:25 mm
Shaft Diameter: Φ3 mm
Shaft Length: 12 mm
D-cut Length:8mm
Gear Ratio: 10:1
Number of Leads:4
Lead Length: 240 mm
Weight:50g;
.jpg "Oukeda Permanent Magnet PM Stepper Motor with Gearbox 5:1 /10:1 7.5 Deg 12V 2 Phase Φ25 mm")
.jpg "Oukeda Permanent Magnet PM Stepper Motor with Gearbox 5:1 /10:1 7.5 Deg 12V 2 Phase Φ25 mm")
.jpg "Oukeda Permanent Magnet PM Stepper Motor with Gearbox 5:1 /10:1 7.5 Deg 12V 2 Phase Φ25 mm")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| D-cut Length | 8 |
| Body Length(mm) | 25 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 12 |
| Shaft Type | D-cut |
| Weight(g) | 50 |
| Gear Ratio | 5:1 / 10:1 |
| Frame Size(mm) | Φ25 |
| Electrical Specification | |
| Holding Torque (Ncm) | 7.35 |
| Holding Torque (oz.in) | 10.40 |
| Step Angle(deg.) | 7.5 |
| Phase Current(A) | 0.3 |
| Phase Voltage(V) | 12 |
