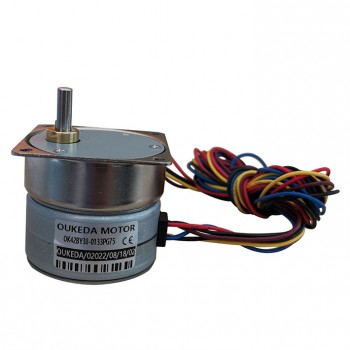

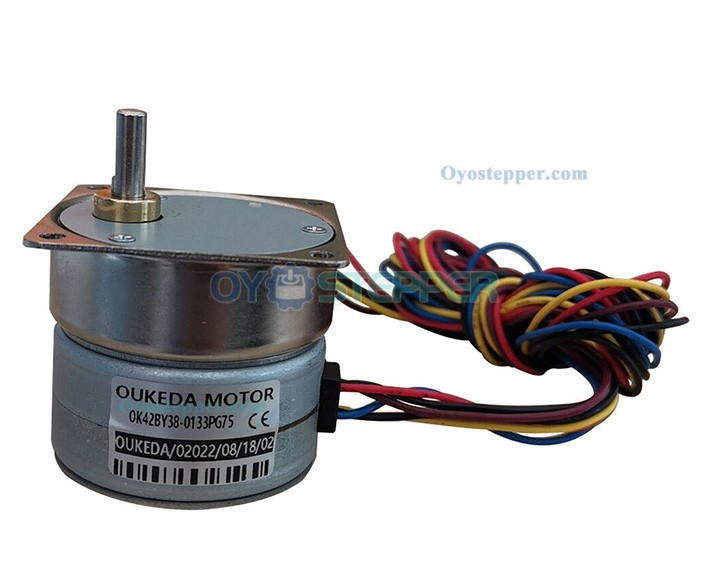

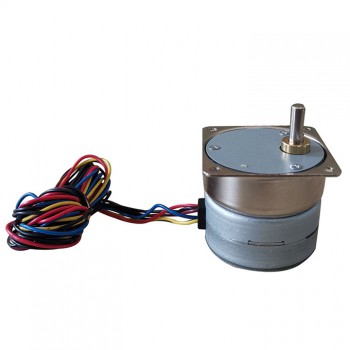

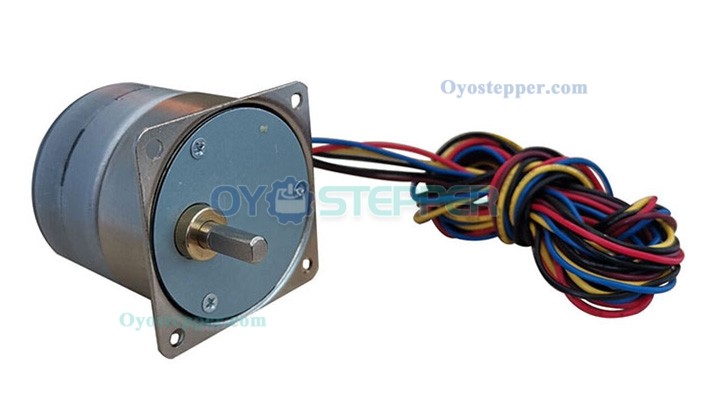

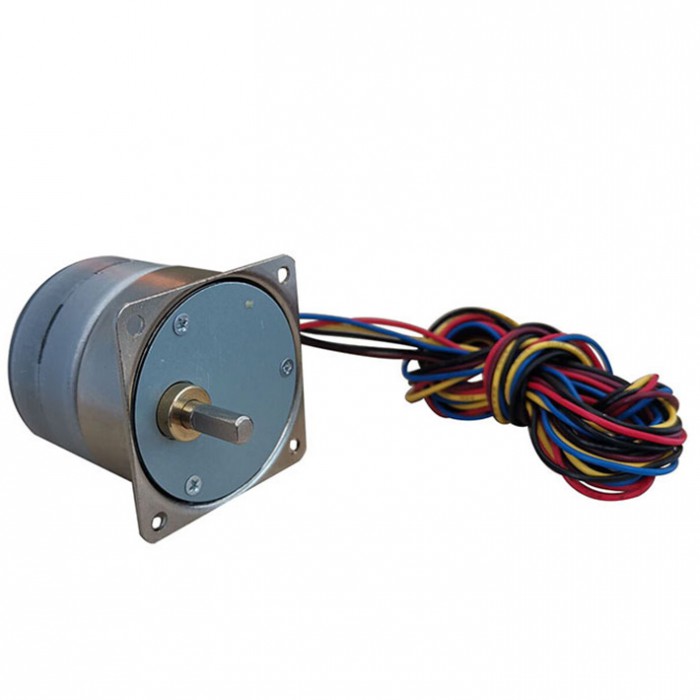

Oukeda Permanent Magnet PM Stepper Motor with 10:1/30:1/50:1/75:1/120:1 Gearbox 7.5 Deg 24V 4 Phase
Oukeda Permanent Magnet PM Stepper Motor with 10:1/30:1/50:1/75:1/120:1 Gearbox 7.5 Deg 24V 4 Phase
Electrical Specification:
Manufacturer Part Number: OK42BY38-0133PG75
Motor Type: PM Stepper Motor
Phase: 4
Step Angle: 7.5 deg
Phase Current: 0.13 A/0.24A
Phase Voltage:12VDC/24VDC
Phase Resistance: 40 ± 7% ohms(25 ℃)
Inductance: 17 mH ± 20%
Physical Specification:
Frame Size: Φ42 mm
Body Length: 38 mm
Shaft Diameter: Φ5 mm
Shaft Length: 15.5 mm
D-cut Length: 10 mm
Gear Ratio: 10:1/30:1/50:1/75:1/120:1
Number of Leads:6
Lead Length: 240 mm
Weight: 200g;
.jpg "Oukeda Permanent Magnet PM Stepper Motor with 10:1/30:1/50:1/75:1/120:1 Gearbox 7.5 Deg 24V 4 Phase")
.jpg "Oukeda Permanent Magnet PM Stepper Motor with 10:1/30:1/50:1/75:1/120:1 Gearbox 7.5 Deg 24V 4 Phase")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| D-cut Length | 10 |
| No. of Lead | 6 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 15.5 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Body Length(mm) | 38 |
| Weight(g) | 200 |
| Gear Ratio | 75:1 / 10:1 / 30:1 / 50:1 / 120:1 |
| Frame Size(mm) | Φ42 |
| Electrical Specification | |
| Step Angle(°) | 7.5 |
| No. of Phase | 4 |
| Step Angle(deg.) | 7.5 |
| Phase Current(A) | 0.13 |
| Phase Voltage(V) | 24 |
