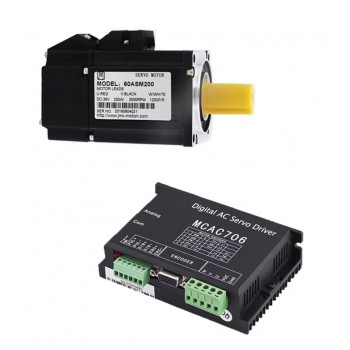

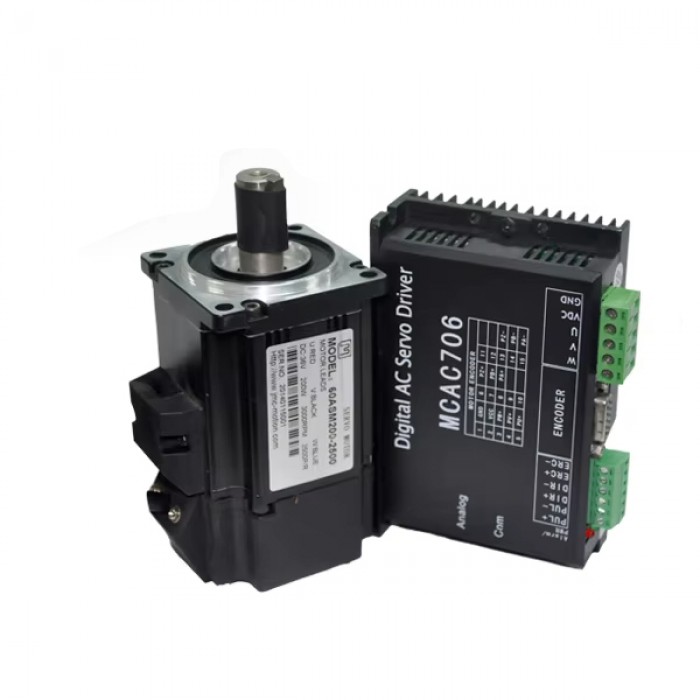

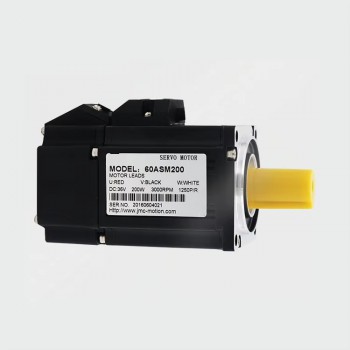

200W DC Servo Motor & Driver Kit 36V 7.6A 0.63N.m 3000 RPM with 2500 Lines Encoder 60 x 60mm

200W DC Servo Motor & Driver Kit 36V 7.6A 0.63N.m 3000 RPM with 2500 Lines Encoder 60 x 60mm

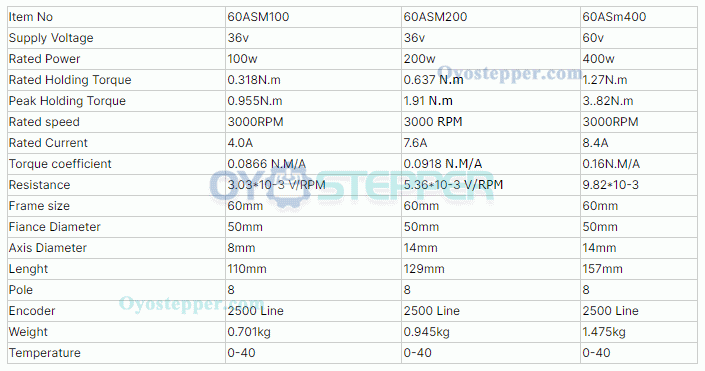

Servo Motor Specification
Part Number:60ASM200
Phase:3 Phase
Power Supply Voltage:36V
Rated Power:200W
Rated Torque:0.637N.m(90.20 oz.in)
Peak Torque:1.91N.m
Rated Speed: 3000 RPM
Rated Current:7.6A
Frequency:200HZ
Poles:8
Resistance:3.03*10-3 V/RPM
Torque coefficient:0.0866 N.M/A
Rotor inertia(10^-4kg*cm²):0.58
Encoder:1250 Line

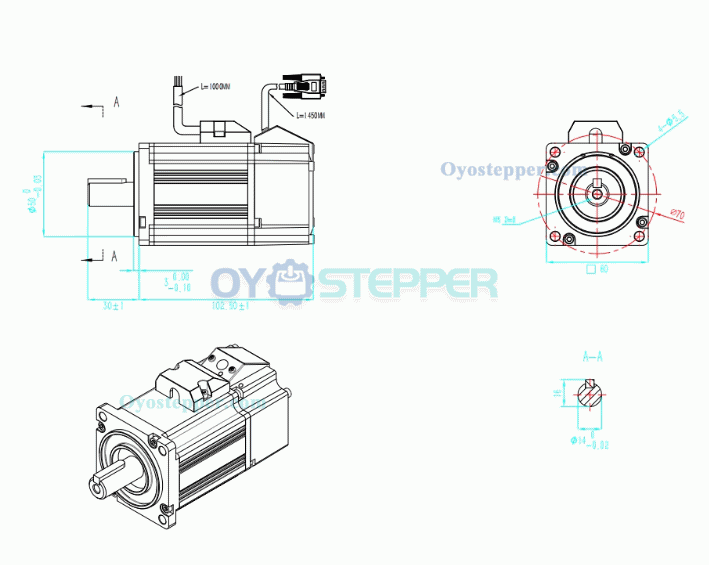

Physical Specifications:
Frame Size:60 x 60mm
Body Length:129mm
Shaft Diameter:14mm
Shaft Length:30mm
Weight:1kg;

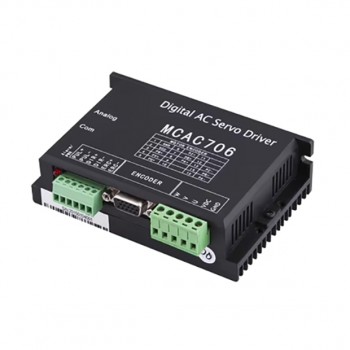

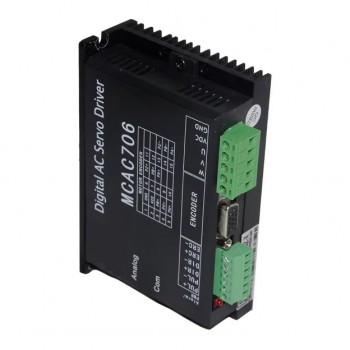

Technical data
1.Voltage:VDC 20~70V
2. Continuous output power:200W
3.Continuous output current: 6A  32KHz PWM
4.Overload output current: 18A (3S)
5.Protection
Over current: 30A±10%
Over I2t:300%  5S
Over heating:80°C
Over voltage: 65V
Under voltage: 18V
6.Max pulse output frequency: 300K
7.Default communication speed: 9.6Kbps(need conversion interface outside)
8.Environment
Space:Avoid dust,oil frost and corrosive gases
Work temperature:0~+50°C
Storage temperature -20°C~+80°C
Humidity :40~90%RH
Cooling :natural cooling or forced convection
9.Dimension : 118×76×35mm
10.Weight: 200g;
