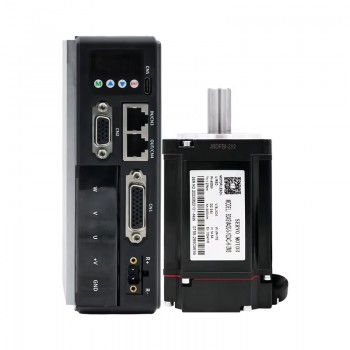

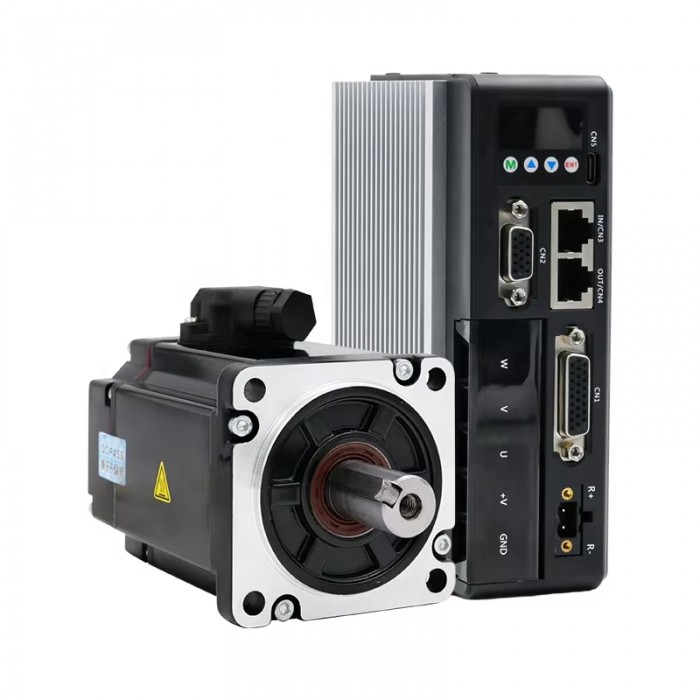

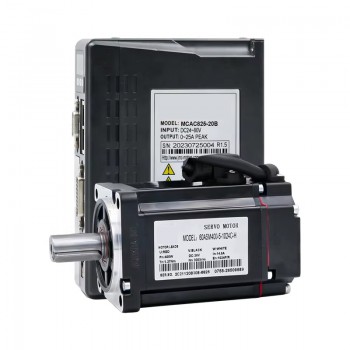

400W DC Servo Motor & Driver Kit 48V 1.27N.m with 1024 Lines Magnetic Encoder 60 x 60mm
400W DC Servo Motor & Driver Kit 48V 1.27N.m with 1024 Lines Magnetic Encoder 60 x 60mm
Servo Motor Specification
Part Number:60ASM400-5-1024C
Power Supply Voltage:48V
Rated Power:400W
Rated Torque: 1.27N.m(179.84 oz.in)
Peak Torque:3.8Nm
Rated Speed: 3000 RPM
Max Speed: 3500 RPM
Rated Current:10A
Max Current:20A
Motor pole pairs:5
Rotor inertia(10^-4kg*cm²):0.58
Encoder:1024 lines magnetic encoder
Physical Specifications:
Frame Size:60 x 60mm
Body Length:128mm
Shaft Diameter:14mm
Shaft Length:30mm
D-cut Length:20mm
Weight:3.5kg;

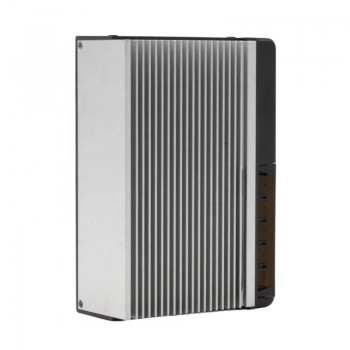

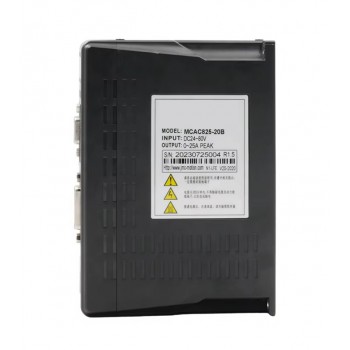

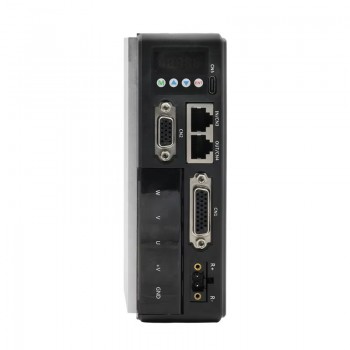

Servo Driver Specification:
Part Number: MCAC825
Phase:3
Input voltage:24~80V
Input current:25A
Output voltage:25V
Rated power:400W
Dimension:150.5*104*50mm
Matching motor:80mm base
Weight:2.5kg;
.jpg)
.jpg)
(1).jpg)
.jpg)
.jpg)
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Servo Motor Specification | |
|---|---|
| No-load Speed | 3500 |
| Power supply voltage | 48 |
| Encoder | 1024 lines |
| Motor Base | 60 x 60 |
| Rated Current | 10 |
| Rated Power(W) | 400 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 1.27 |
| Peak Torque(Nm) | 3.8 |
| With Brake | Without brake |
