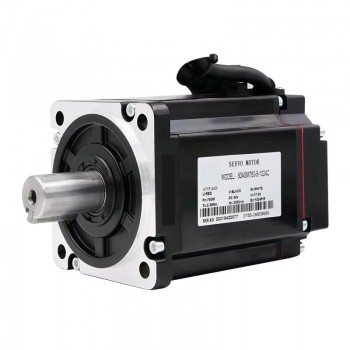

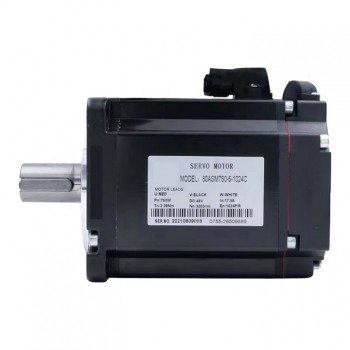

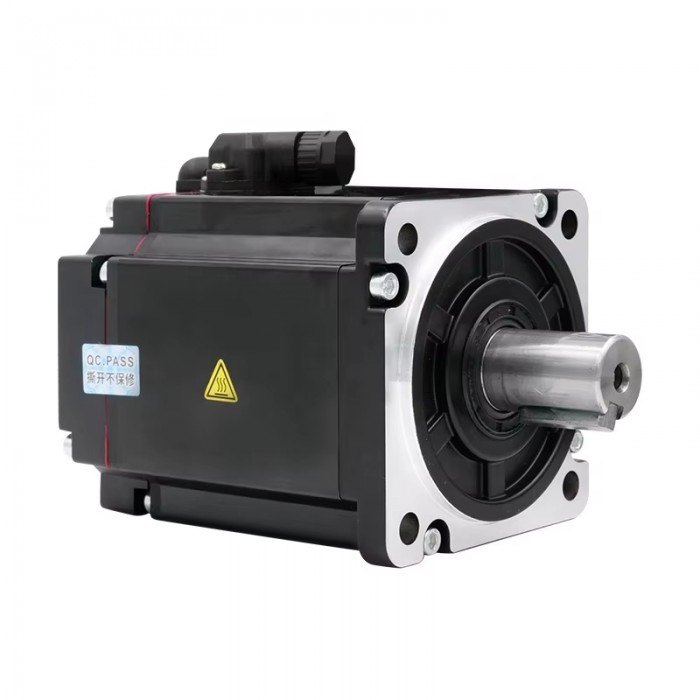

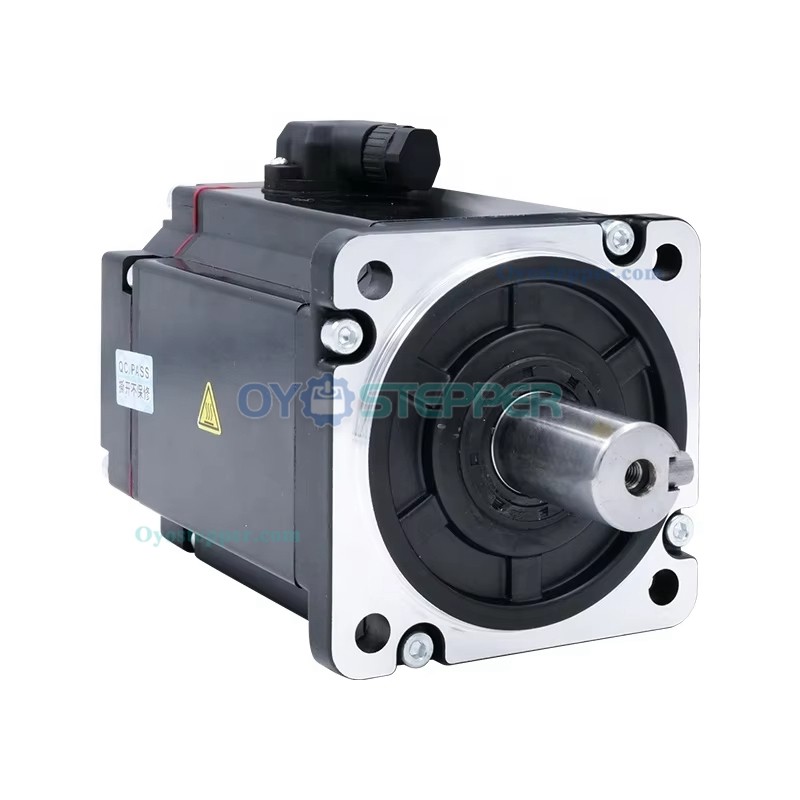

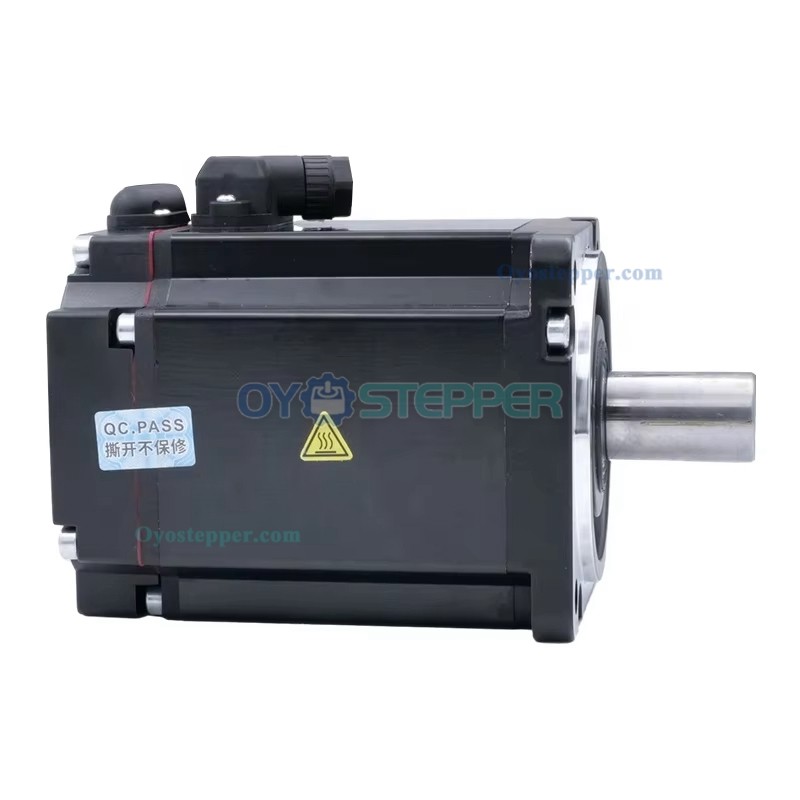

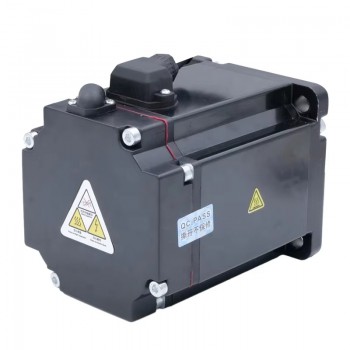

750W 48V 2.39N.m DC Servo Motor with 1024 Lines Magnetic Encoder 80 x 80mm
750W 48V 2.39N.m DC Servo Motor with 1024 Lines Magnetic Encoder 80 x 80mm
Specification
Part Number: 80ASM750-5-1024C
Power Supply Voltage:48V
Rated Power:750W
Rated Torque: 2.39N.m(338.45 oz.in)
Peak Torque: 4.7Nm
Rated Speed: 3000 RPM
Max Speed: 3500 RPM
Rated Current:20A
Max Current:40A
Motor pole pairs:5
Rotor inertia(10^-4kg*cm²):1.74
Encoder:1024 lines magnetic encoder

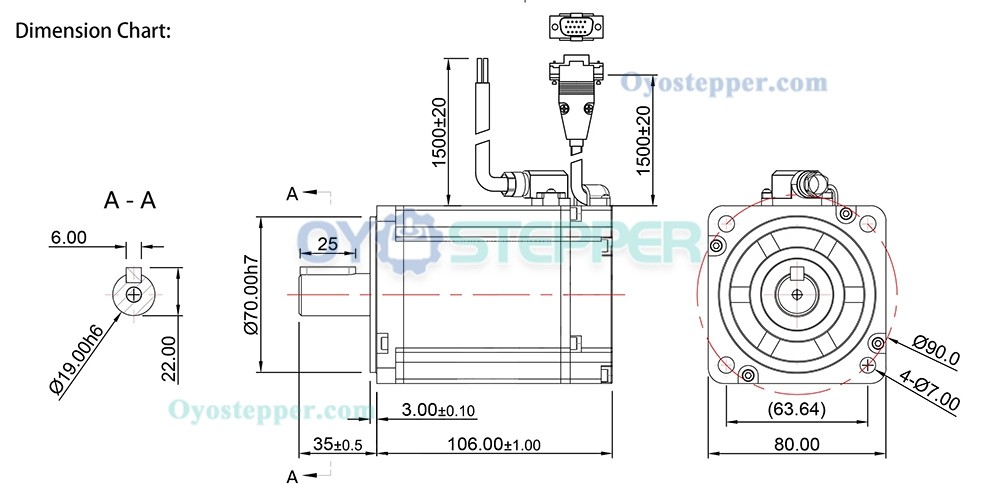

Physical Specifications:
Frame Size:80 x 80mm
Body Length:141mm
Shaft Diameter:19mm
Shaft Length:35mm
Keyway Length:25mm
Weight:5kg;
.jpg)
.jpg)
.jpg)
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Servo Motor Specification | |
|---|---|
| Rated Current | 20 |
| No-load Speed | 3500 |
| Power supply voltage | 48 |
| Encoder | 1024 lines |
| Servo Motor Type | DC Servo Motor |
| Rated Power(W) | 750 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 2.39 |
| Peak Torque(Nm) | 4.7 |
| With Brake | Without brake |
