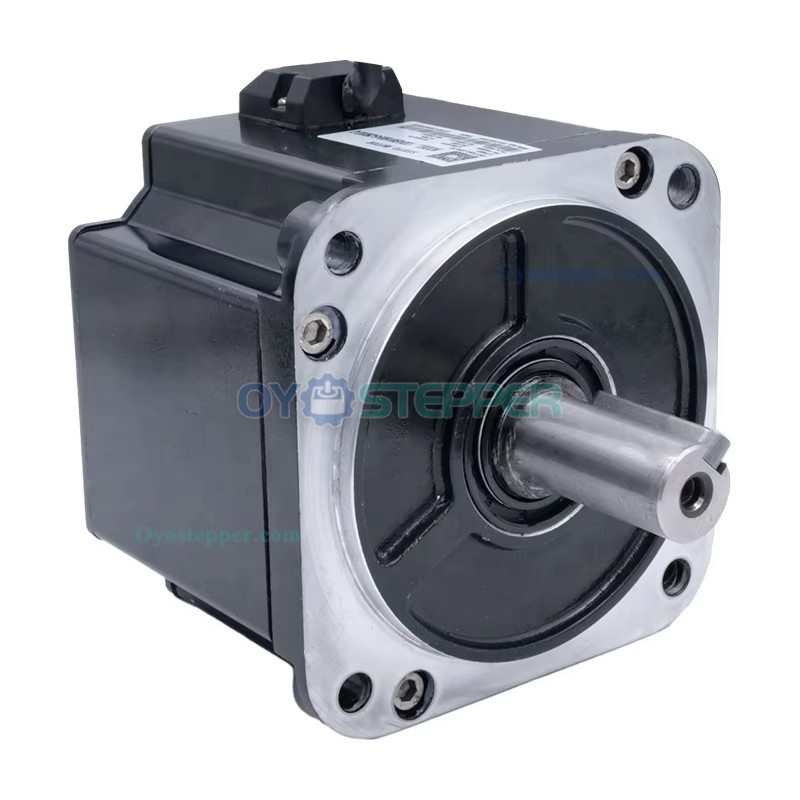

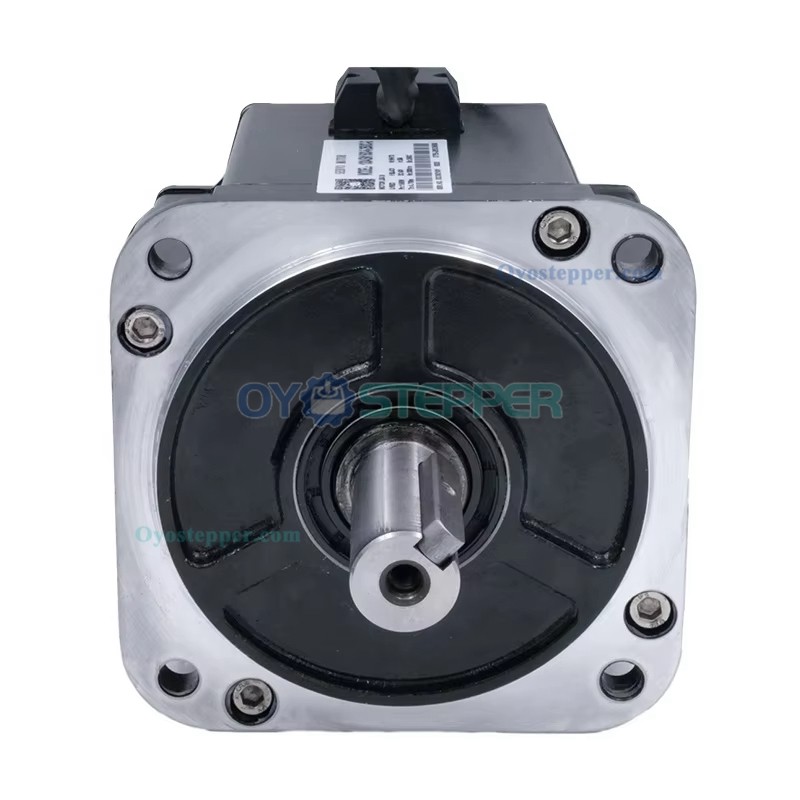

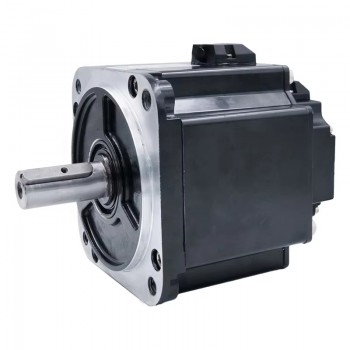

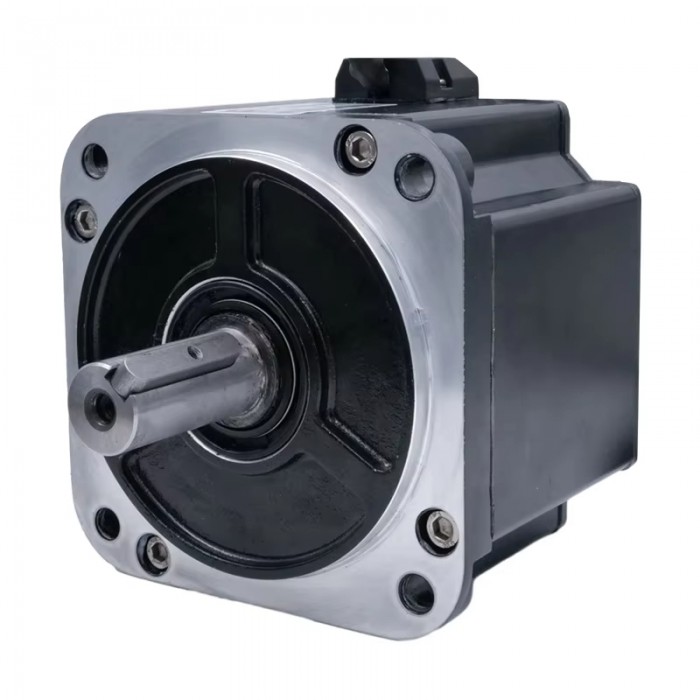

1500W 48V 4.78Nm 3000RPM DC Servo Motor with 2500 Lines Magnetic Encoder
1500W 48V 4.78Nm 3000RPM DC Servo Motor with 2500 Lines Magnetic Encoder for Automation Equipment
Servo Motor Specification
Part Number: 130ASM1500-5-2500C
Power Supply Voltage:48V
Rated Power: 1500W
Rated Torque: 4.78Nm( 676.90 oz.in)
Peak Torque: 14.3Nm
Rated Speed: 3000 RPM
Max Speed: 3500 RPM
Rated Current:37A
Max Current:74A
Motor pole pairs:5
Rotor inertia(10^-4kg*cm²):11.2
Encoder:2500 lines magnetic encoder
Frame Size:130x130mm;

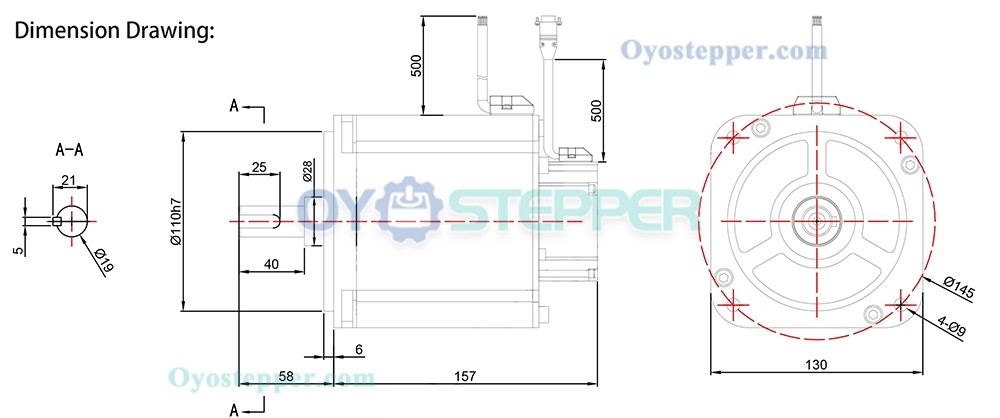

Physical Specifications:
Frame Size:130 x 130mm
Body Length:215mm
Shaft Diameter:19mm
Shaft Length:58mm
Keyway Length:25mm
Weight: 6kg;
.jpg)
.jpg)
.jpg)
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Servo Motor Specification | |
|---|---|
| Rated Current | 37 |
| Power supply voltage | 48 |
| Motor Base | 130x130 |
| Servo Motor Type | DC Servo Motor |
| Encoder | 2500 Line |
| Rated Power(W) | 1500 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 4.78 |
| Peak Speed(rpm) | 3500 |
| Peak Torque(Nm) | 14.3 |
| With Brake | Without brake |
