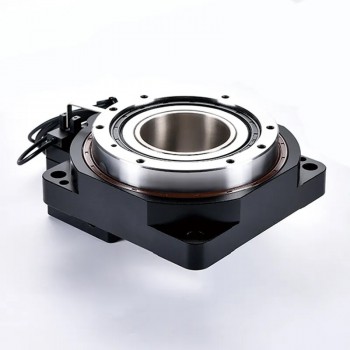

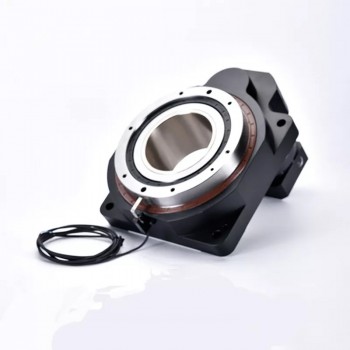

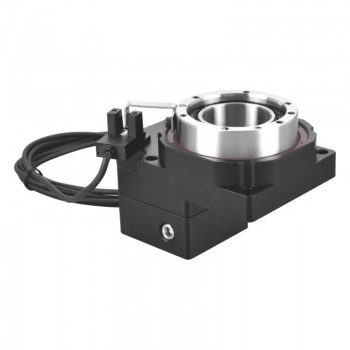

Hollow Rotating Platform Gearbox ratio 5:1 10:1 for 42mm NEMA17 Stepper motor
ZCT62-5/ZCT62-10 Rotary Actuator Reducer Input Shaft 5mm Ratio 5:1 10:1 for 42mm 100W AC Servo Motor/ Stepper Motor
Medels Available:
ZCT62-5 5-22 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 5:1 for 42 frame NEMA17 stepper motor input shaft 5mm
ZCT62-10 5-22 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 10:1 for 42 frame nema17 stepper motor input shaft 5mm
PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER:
1st:Reduction Ratio
The reduction ratio of the planetary reducer you ordered is: 5:1 or 10:1
2nd:Input Size
We will ship the planetary reducer as the standard dimension as follows:
| Model | Frame | Reduction ratio | Shaft diameter of motor | mounting flange | Screw hole distance |
| ZCT62-5 for Nema 17 Stepper Motor | 50mm | 5:1 | 5mm | 22mm | 31mm |
| ZCT62-5 for for 42 Frame Servo Motor | 42mm | 5:1 | 8mm | 22mm | 31mm |

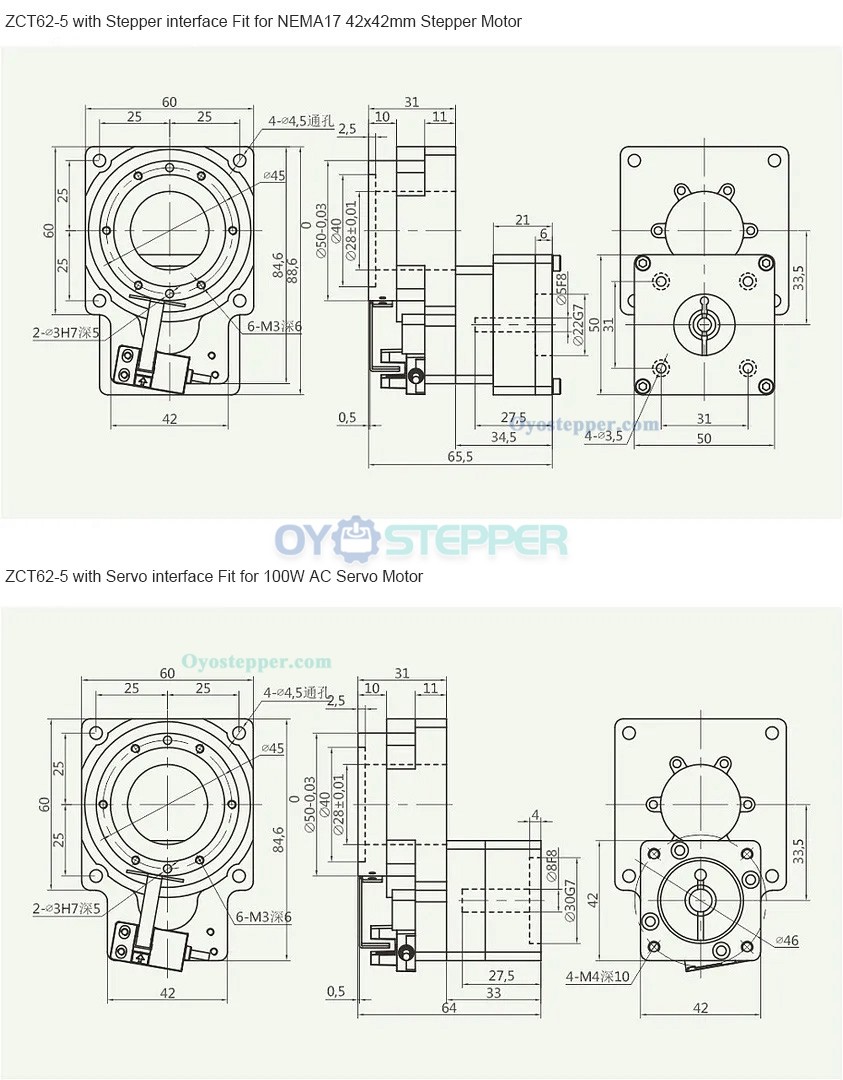

If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.
3rd:Parameters
If you have inquiry to customize the precision ,input and output dimensions, reduction ratio please write me

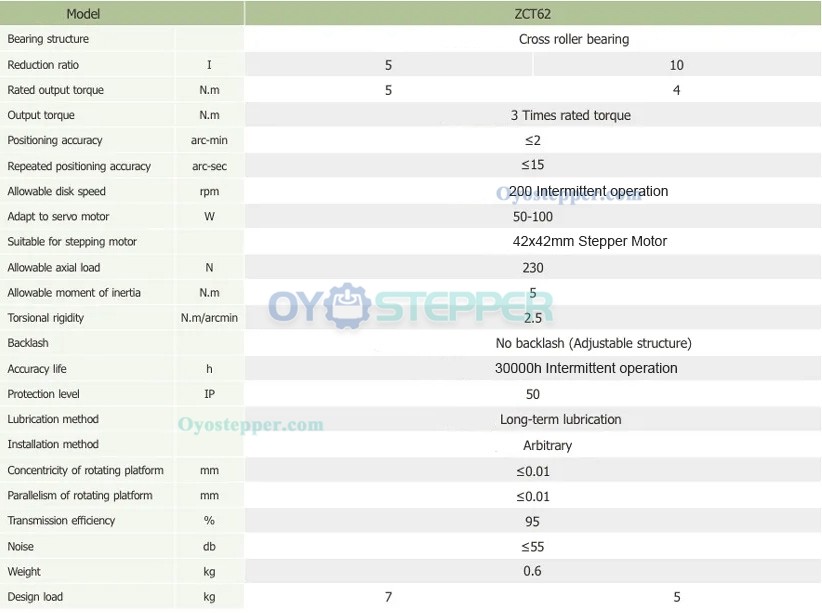

Here is the parameters of the planetary reducer:
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 50 x 50 / 42 x 42 |
| Input Shaft Diameter(mm) | 5 / 8 |
| Input Shaft Length(mm) | 27.5 |
| Suit for Motor | Nema 17 / 42x42 Servo |
| Gearbox Type | Hollow Rotary Actuator |
| Gear Ratio | 5:1 |
| Backlash at No-load | No backlash |
| Input Shaft Max. Length | 27.5 |
