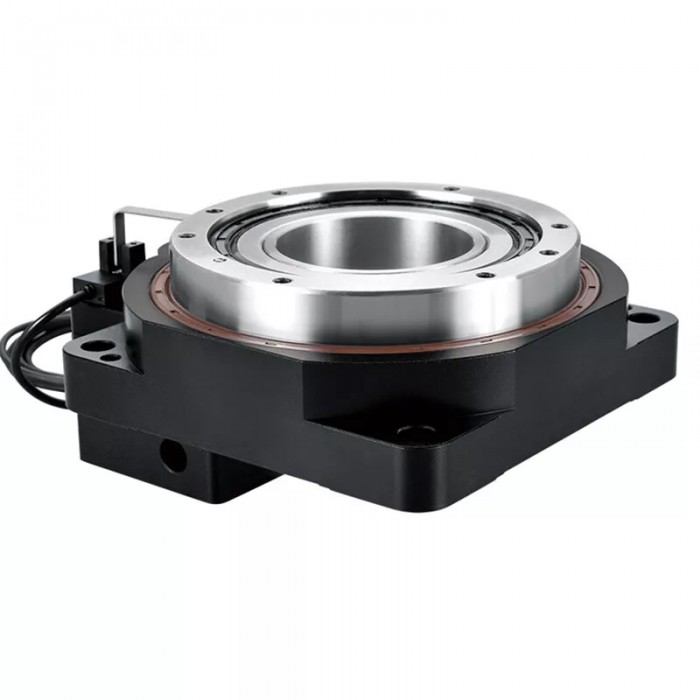

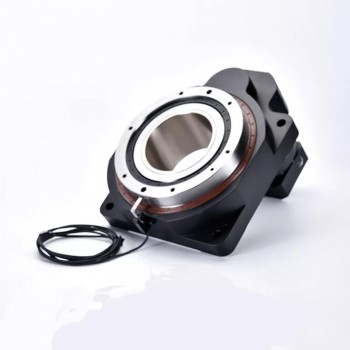

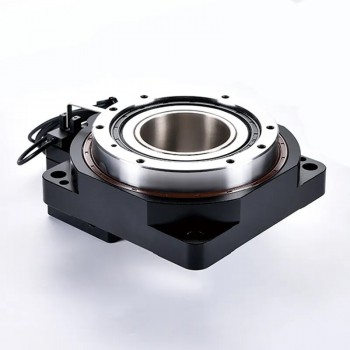

Hollow Rotary Actuator Hollow Rotating Platform Gearbox for 400W AC Servo Motor
ZCT85-5/ZCT85-10 Hollow Rotary Actuator Reducer Input Shaft 14mm for 60mm 400W AC Servo Motor/ Stepper Motor
Item description from the seller
ZCT85-5 14-50-70 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 5:1 for 60 frame 400w AC servo motor input shaft 14mm
ZCT85-10 14-50-70 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 10:1 for 60 frame 400w AC servo motor input shaft 14mm
PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER:
1st:Reduction Ratio
The reduction ratio of the planetary reducer you ordered is: 5:1 and 10:1
2nd:Input Size

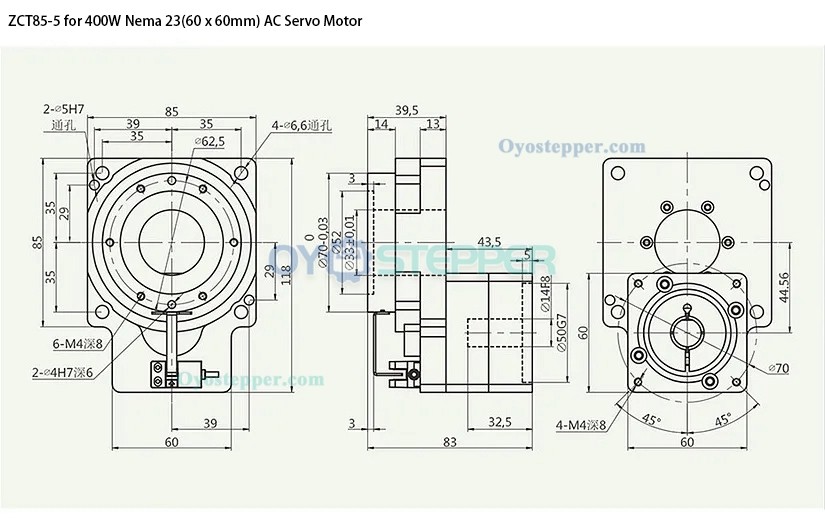

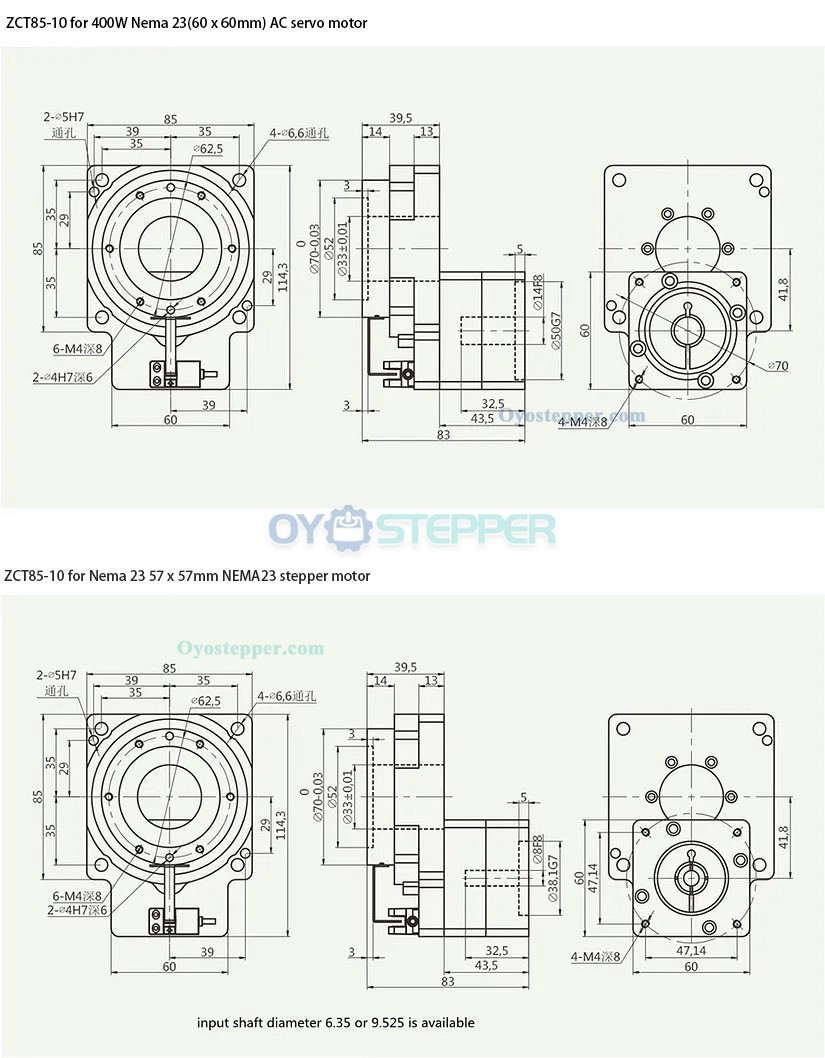

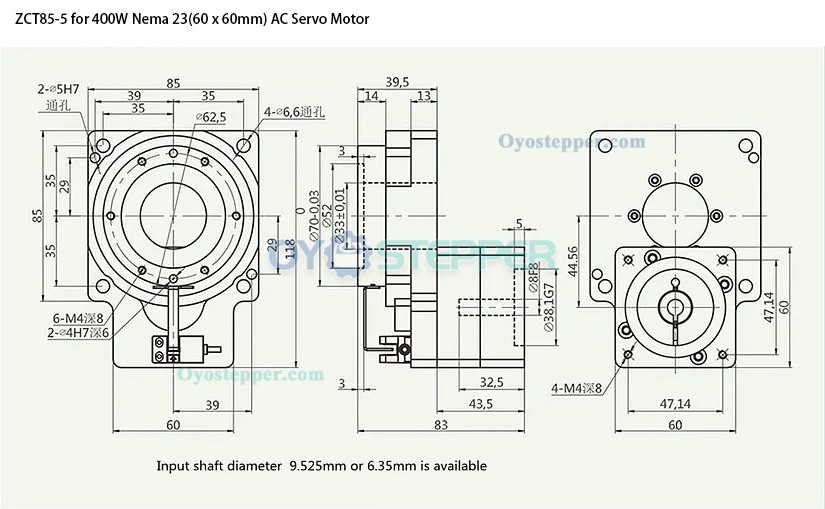

We will ship the planetary reducer as the standard dimension as follows:
| Model | Frame | Reduction ratio | Shaft diameter of motor | Mounting flange | Diagonal Screw hole distance |
| ZCT85-5 for Nema 23 Servo Motor | 60mm | 5:1 | 8mm | 50mm | 70mm |
| ZCT85-5 for Nema 23 Servo Motor | 60mm | 5:1 | 14mm | 50mm | 70mm |
| ZCT85-10 for Nema 23 Stepper Motor | 60mm | 10:1 | 8mm | 50mm | 70mm |
| ZCT85-10 for Nema 23 Servo Motor | 60mm | 10:1 | 14mm | 50mm | 70mm |
If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.
Parameters
(1).jpg "Hollow Rotary Actuator Hollow Rotating Platform Gearbox for 400W AC Servo Motor")
If you have inquiry to customize the precision ,input and output dimensions, reduction ratio please write me.

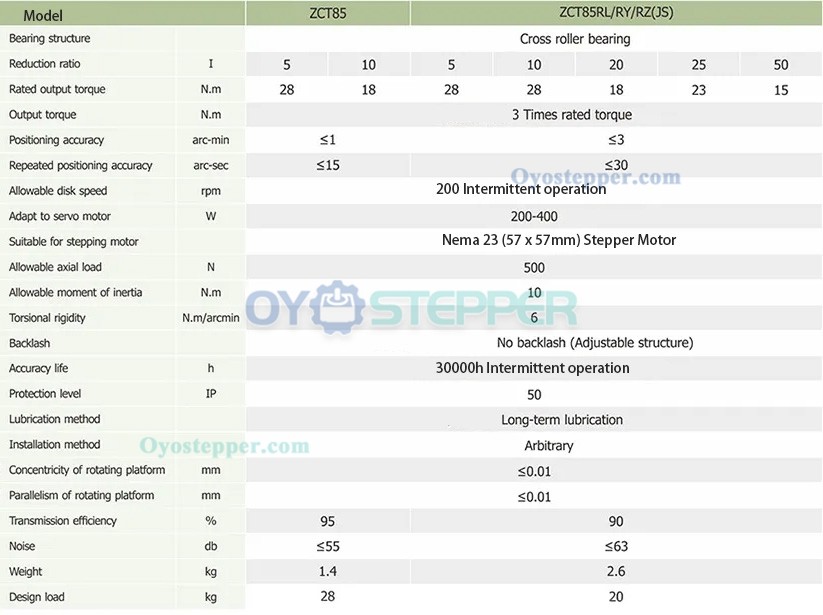

Here is the parameters of the planetary reducer:
.jpg "Hollow Rotary Actuator Hollow Rotating Platform Gearbox for 400W AC Servo Motor")
.jpg "Hollow Rotary Actuator Hollow Rotating Platform Gearbox for 400W AC Servo Motor")
.jpg "Hollow Rotary Actuator Hollow Rotating Platform Gearbox for 400W AC Servo Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 60 x 60 |
| Input Shaft Diameter(mm) | 8 / 14 |
| Input Shaft Length(mm) | 32.5 |
| Suit for Motor | Nema 23 / 60x60 Servo |
| Gearbox Type | Hollow Rotary Actuator |
| Gear Ratio | 5:1 / 10:1 |
| Backlash at No-load | No backlash |
| Input Shaft Max. Length | 32.5 |
