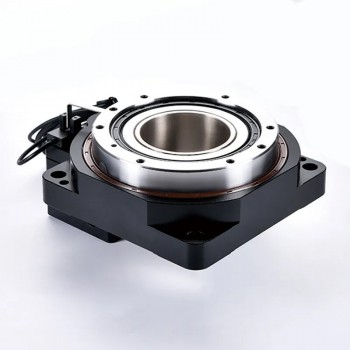

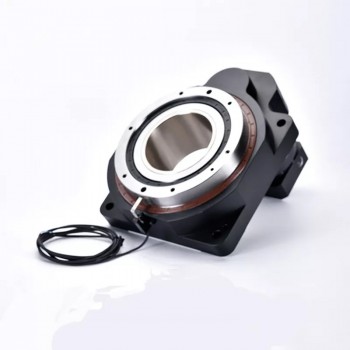

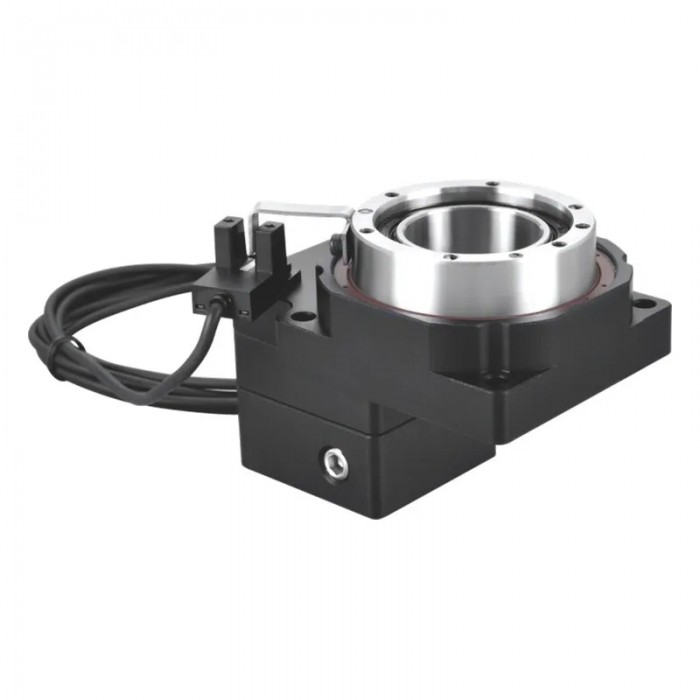

Hollow Rotating Platform turn table Gearbox for 40 frame 50W 100W AC Servo Motor
ZCT62-5/ZCT62-10 Rotary Actuator Reducer Input Shaft 5mm/8mm Ratio 5:1 10:1 for 50w/100w AC Servo Motor / 42 Nema Stepper Motor
Item description from the seller
ZCT62-5 8-30-46 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 5:1 for 40 frame 100w AC servo motor input shaft 8mm
ZCT62-10 8-30-46 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 10:1 for 40 frame 100w AC servo motor input shaft 8mm
PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER:
1st:Reduction Ratio
The reduction ratio of the planetary reducer you ordered is: 5:1 or 10:1
2nd:Input Size
We will ship the planetary reducer as the standard dimension as follows:
| Model | Frame | Reduction ratio | Shaft diameter of motor | mounting flange | Screw hole distance |
| ZCT62-5 for Nema 23 Servo Motor | 42mm | 5:1 / 10:1 | 5mm | 30mm | 46mm |
| ZCT62-5 for Nema 23 Stepper Motor | 42mm | 5:1 /10:1 | 8mm | 30mm | 46mm |

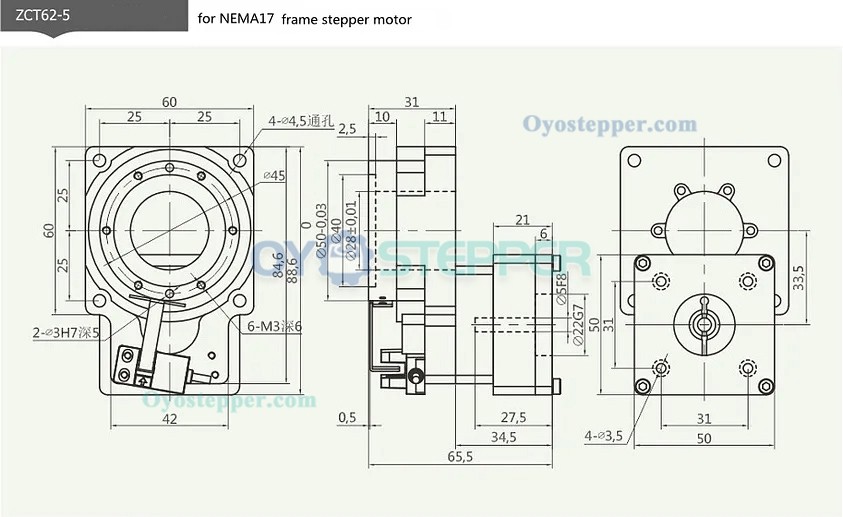

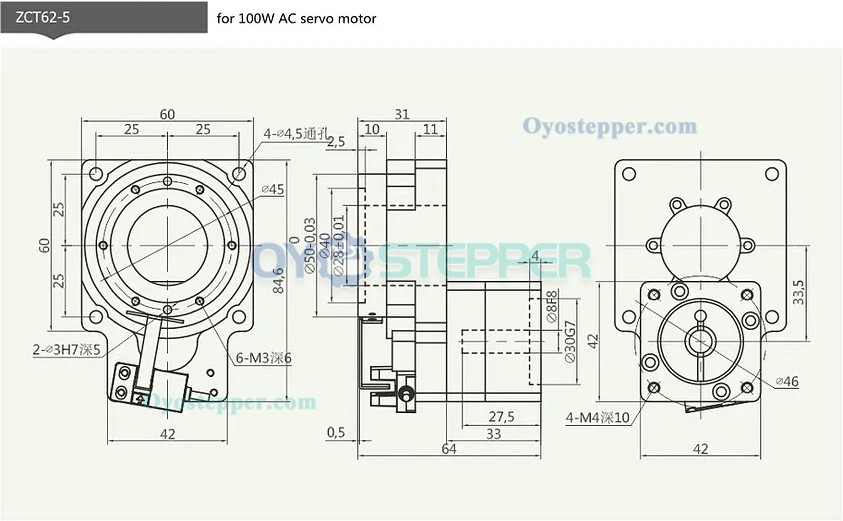

If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.
3rd:Parameters
If you have inquiry to customize the precision ,input and output dimensions, reduction ratio please write me
Here is the parameters of the planetary reducer:
.jpg "Hollow Rotating Platform turn table Gearbox for 40 frame 50W 100W AC Servo Motor")
.jpg "Hollow Rotating Platform turn table Gearbox for 40 frame 50W 100W AC Servo Motor")
.jpg "Hollow Rotating Platform turn table Gearbox for 40 frame 50W 100W AC Servo Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42 x 42 |
| Input Shaft Diameter(mm) | 5 / 8 |
| Input Shaft Length(mm) | 27.5 |
| Suit for Motor | Nema 17 / 42x42 Servo |
| Gearbox Type | Hollow Rotary Actuator |
| Gear Ratio | 5:1 / 10:1 |
| Backlash at No-load | No backlash |
| Input Shaft Max. Length | 27.5 |
