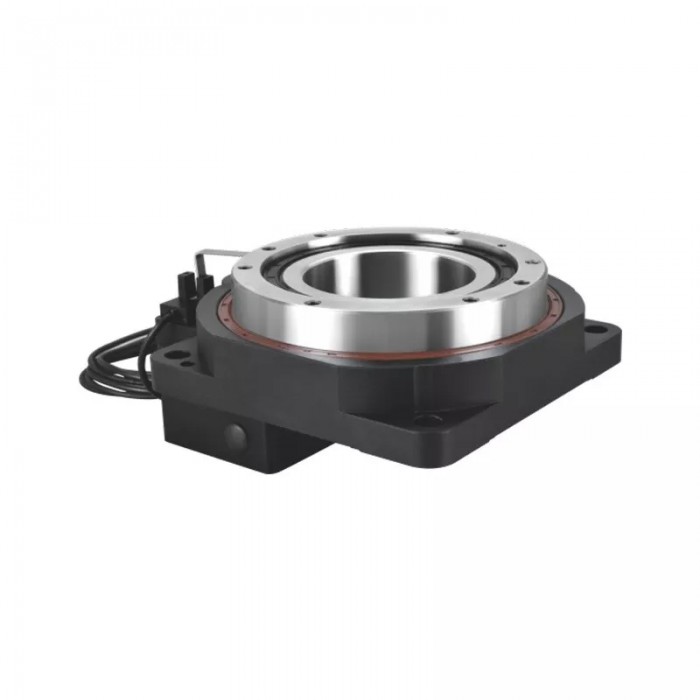

Hollow Rotating Platform Gearbox Ratio 10:1 18:1 for 60mm 400W AC Servo Motor
ZCT130-10/ZCT130-18 Rotary Actuator Reducer Input Shaft 14mm Ratio 10:1 18:1 for 60mm 400W AC Servo Motor/ Stepper Motor
Item description from the seller
ZCT130-10 14-50-70 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 10:1 for 60 frame 400w AC servo motor input shaft 14mm
ZCT130-18 14-50-70 Hollow Rotary Platform Rotating Table Gearbox Reducer ratio 18:1 for 60 frame 400w AC servo motor input shaft 14mm
PLEASE READ THE FOLLOWING NOTICE BEFORE ORDER：
1st:Reduction Ratio
The reduction ratio of the planetary reducer you ordered is: 10:1 and 18:1
2nd:Input Size
We will ship the planetary reducer as the standard dimension as follows:
| Model | Frame | Reduction ratio | Shaft diameter of motor | mounting flange | diagonal Screw hole distance |

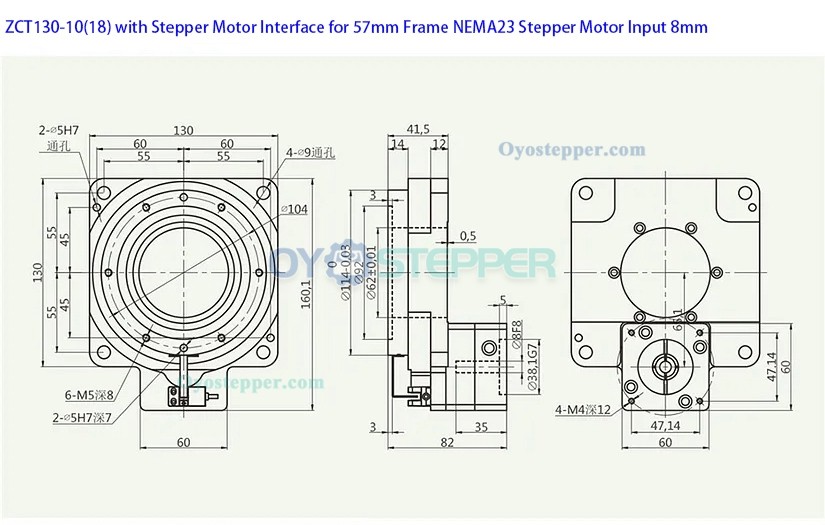

| ZCT130-10 for Nema 23 Stepper Motor | 60mm | 10:1 | 8mm | 50mm | 70mm |
| ZCT130-18 for Nema 23 Stepper Motor | 60mm | 18:1 | 8mm | 50mm | 70mm |

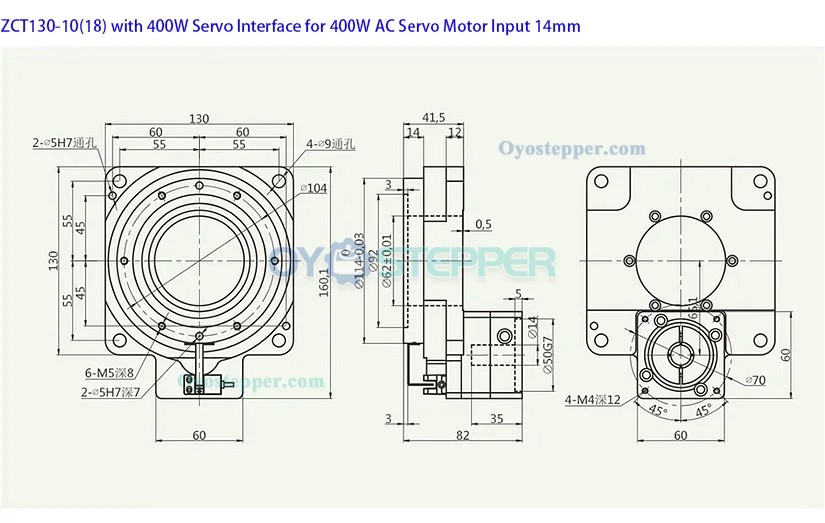

| ZCT130-10 for for 60 Frame Servo Motor | 60mm | 10:1 | 14mm | 50mm | 70mm |
| ZCT130-18 for for 60 Frame Servo Motor | 60mm | 18:1 | 14mm | 50mm | 70mm |
If any question on the dimension of the planetary reducer, please write me the dimension drawing of your motor. We offer customize service for your motor and can help you choose the suitable planetary reducer for your motor.
3rd:Parameters
If you have inquiry to customize the precision ,input and output dimensions, reduction ratio please write me

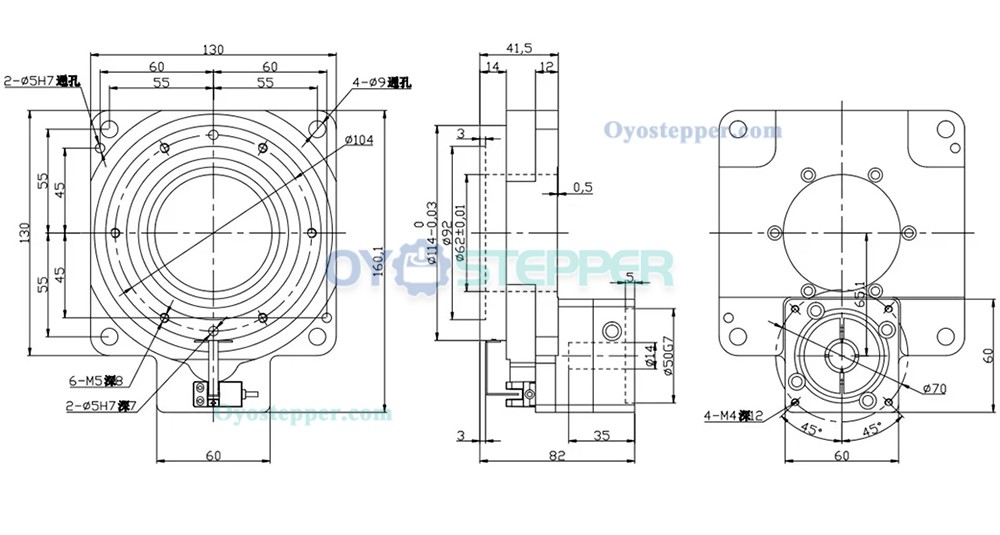

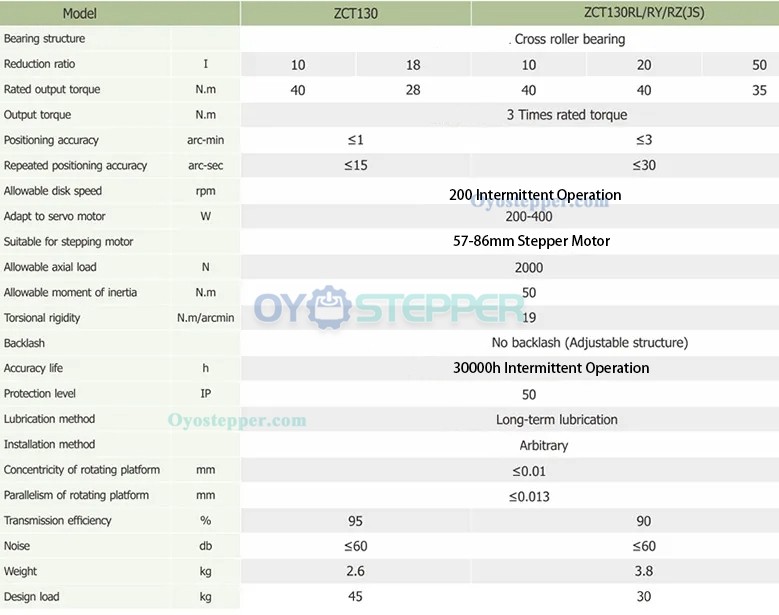

Here is the parameters of the planetary reducer:
.jpg "Hollow Rotating Platform Gearbox Ratio 10:1 18:1 for 60mm 400W AC Servo Motor")
.jpg "Hollow Rotating Platform Gearbox Ratio 10:1 18:1 for 60mm 400W AC Servo Motor")
.jpg "Hollow Rotating Platform Gearbox Ratio 10:1 18:1 for 60mm 400W AC Servo Motor")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 60 x 60 |
| Input Shaft Diameter(mm) | 8 / 14 |
| Input Shaft Length(mm) | 35 |
| Suit for Motor | Nema 23 / 60x60 Servo |
| Gearbox Type | Hollow Rotary Actuator |
| Gear Ratio | 10:1 / 18:1 |
| Backlash at No-load | No backlash |
| Input Shaft Max. Length | 35 |
