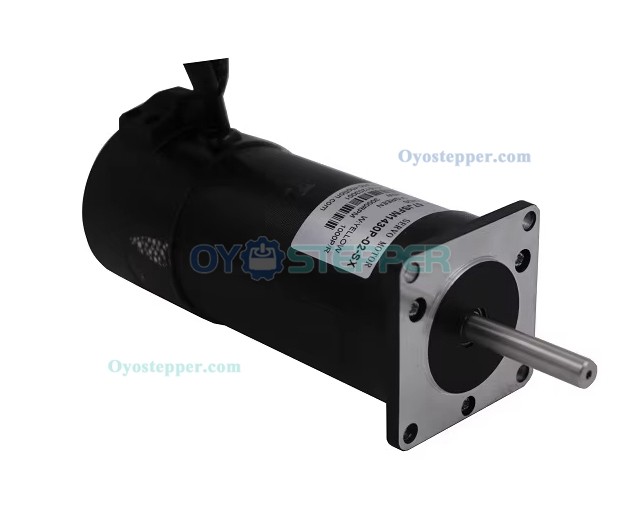

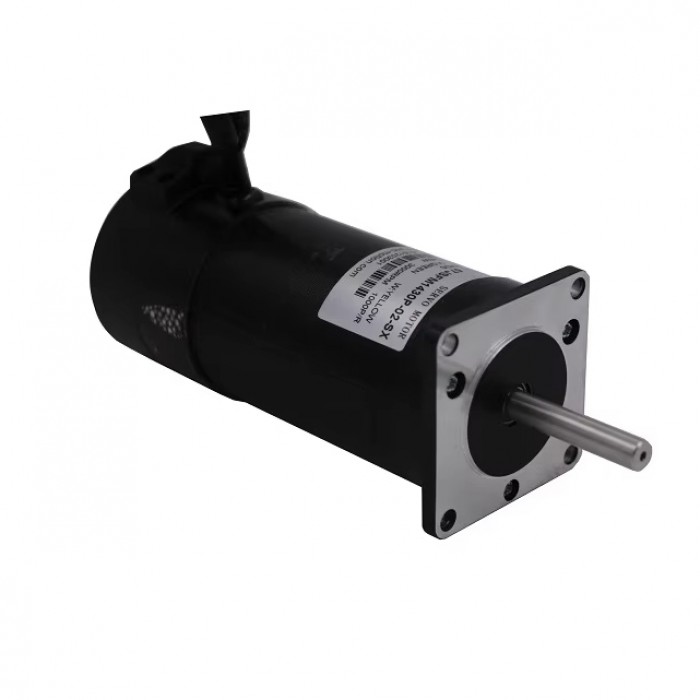

36V 160W Brushless DC Servo Motor with 1000 Lines Encoder 0.45N.m 3400RPM Φ57mm 3 Phase

Name: 36V 160W Brushless DC Servo Motor with 1000 Lines Encoder 0.45N.m 3400RPM Φ57mm 3 Phase
Brand: Oyostepper
SKU: 57JSF1430P
Price: 89.00 USD
Availability: InStock

NO.:57JSF1430P
Post a review

Our Price:$89.00

Description Specification Custom Options Review

36V 160W Brushless DC Servo Motor with 1000 Lines Encoder 0.45N.m 3400RPM Φ57mm 3 Phase

Servo Motor Specification
Part Number:57JSF1430P
Phase:3 Phase
Power Supply Voltage:36V
Rated Power:160W
Rated Torque:0.45N.m(63.72 oz.in)
Peak Torque:1.71N.m
Rated Speed: 3400RPM
No Load Speed:4800RPM
Rated Current:6.4A
Poles:4;
Encoder:1000 Lines；

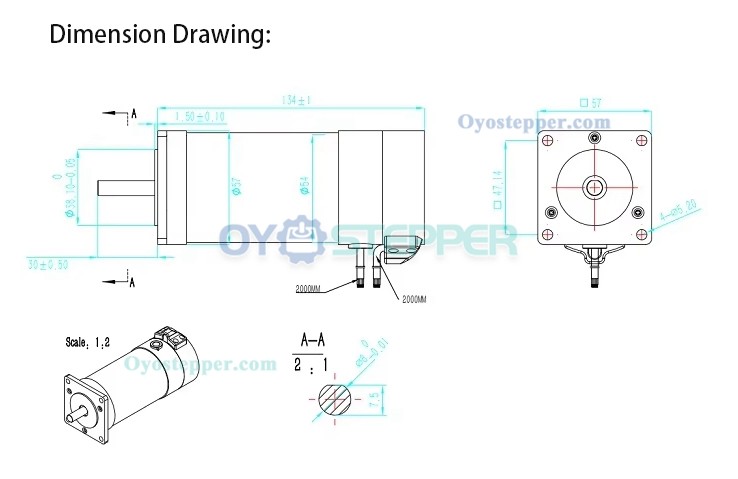

Physical Specifications:
Frame Size:Φ57mm
Body Length:134mm
Shaft Diameter:8mm
Shaft Length:30mm
Weight:1.2kg;

36V 160W Brushless DC Servo Motor with 1000 Lines Encoder 0.45N.m 3400RPM Φ57mm 3 Phase

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 36V 180W Brushless DC Servo Motor & Driver Kit 0.6N.m 3400RPM Φ57mm for Inkjet Printers
Next: 160W Brushless DC Servo Motor & Driver Kit with 1000 Lines Encoder 36V 0.45N.m 3400RPM Φ57mm 3 Phase

Servo Motor Specification
Rated Current	6.4
Number of Phase	3 Phase
No-load Speed	4800
Power supply voltage	36
Encoder	1000 Lines
Motor Base	Φ57
Servo Motor Type	DC Servo Motor
Rated Power(W)	160
Rated Speed(rpm)	3400
Rated Torque(Nm)	0.45
Peak Torque(Nm)	1.71
With Brake	Without brake
