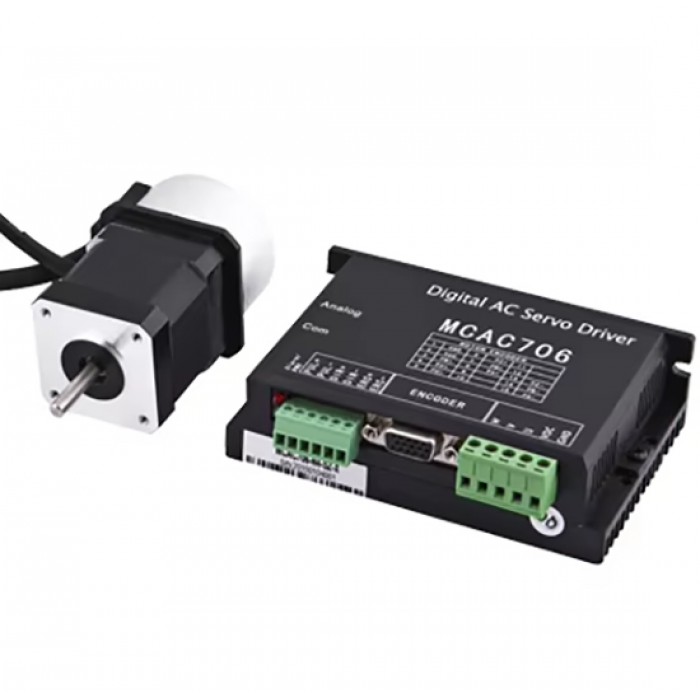

Nema 17 Brushless DC Servo Motor & Driver Kit 64W 24V 3.13A 0.2N.m 3000 RPM with1000 Lines Encoder 42 x 42mm

Nema 17 Brushless DC Servo Motor & Driver Kit 64W 24V 3.13A 0.2N.m 3000 RPM with1000 Lines Encoder 42 x 42mm

Servo Motor Specification
Part Number:42JSF330AS
Phase:Single Phase
Power Supply Voltage:24V
Rated Power:64W
Rated Holding Torque:0.2N.m(28.32 oz.in)
Peak Torque:0.6N.m
Rated Speed: 3000 RPM
Rated Current:1.56A
Frequency:200HZ
Poles:8
Resistance:4.13*10-3 V/RPM
Torque coefficient:0.057 N.M/A
Rotor inertia(10^-4kg*cm²):0.58
Encoder:1000 Line;


Physical Specifications:
Frame Size:42 x 42mm
Body Length:70mm
Shaft Diameter:5mm
Shaft Length:24mm
Weight:0.3kg;

MCAC706 Digital AC Servo Driver 6A 20~70V 200W for Brushless AC Servo motor

MCAC706 all-digital AC servo drive system adopts digital signal processor (DSP) and integrated circuit, and come out to be a cost effective product with simple circuit, high integration, easy operation, and strong practicability. MCAC706 provide three feedback loops:(position loop, velocity loop and current loop). Three work control mode: position, velocity and torque. MCAC706 matches with AC servo motor under 50V and 200W.

Technical data
1.Voltage:VDC 20~70V
2. Continuous output power:200W
3.Continuous output current: 6A  32KHz PWM
4.Overload output current: 18A (3S)
5.Protection
Over current: 30A±10%
Over I2t:300%  5S
Over heating:80°C
Over voltage: 65V
Under voltage: 18V
6.Max pulse output frequency: 300K
7.Default communication speed: 9.6Kbps(need conversion interface outside)
8.Environment
Space:Avoid dust,oil frost and corrosive gases
Work temperature:0~+50°C
Storage temperature -20°C~+80°C
Humidity :40~90%RH
Cooling :natural cooling or forced convection
9.Dimension : 118×76×35mm
10.Weight: 200g;
