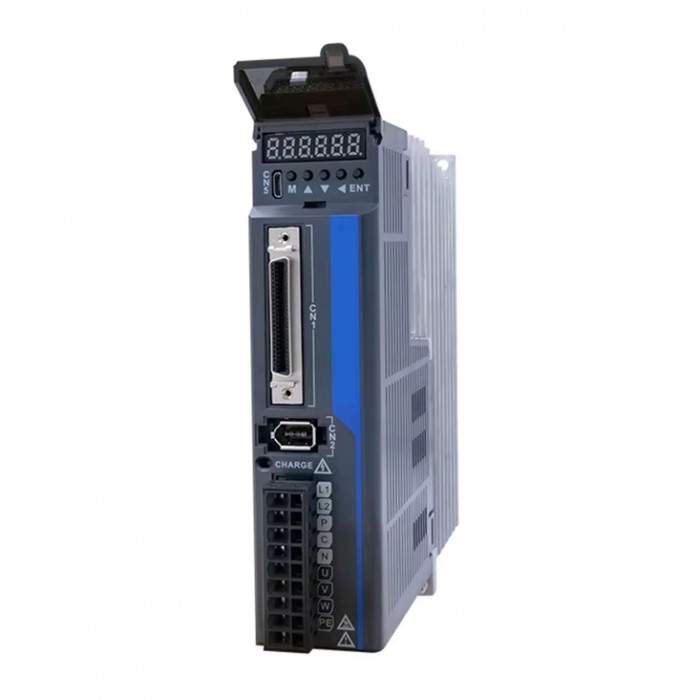

JAND2002-20B Servo Motor Driver 200W 180V-240V Single phase External Braking Resistor

JAND2002-20B Servo Motor Driver 200W 180V-240V Single phase External Braking Resistor


This series of servo drives adopts advanced motor control dedicated DSP chips, large-scale field programmable gate arrays (FPGAs) and IPM power modules, and has the characteristics of small size, high integration, stable performance and reliable protection. It has a rich digital and analog I/O interface, can be used with a variety of host devices, and supports MODBUS communication protocol to facilitate networking.



Features:
Multiple control mode options;
Equipped with automatic gain adjustment module;
Built-in disturbance torque observer;
Built-in FIP filter and multiple sets of notch filters;
With RS485 interface, support MODBUS communication;

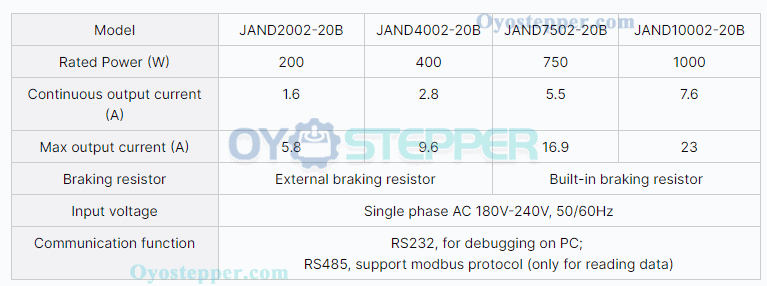

Specification:
Part Number:JAND10002-20B
Rated power:200W
Phase:Single phase
Continuous output current:1.6A
Max output Current:5.8A
Input voltage:Single phase AC 180V-240V, 50/60Hz;

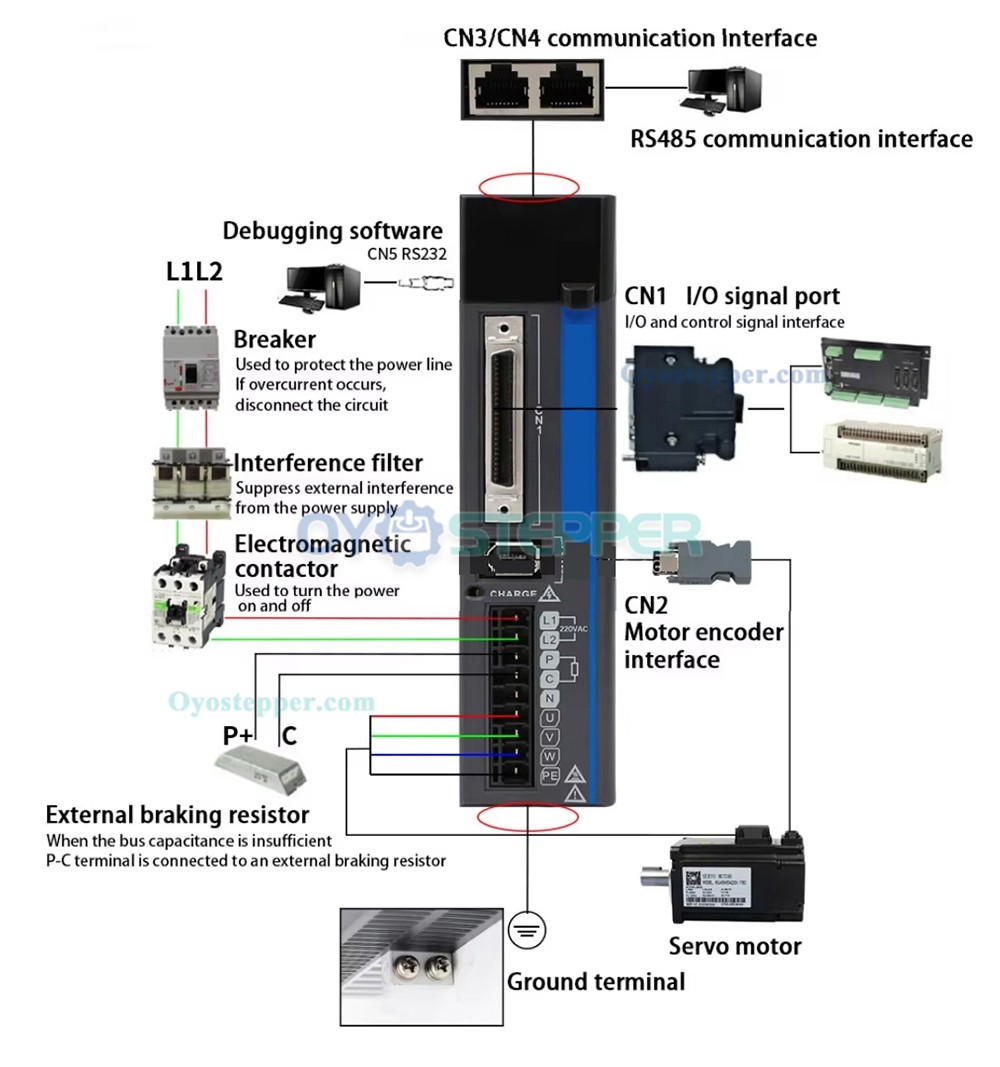

Braking resistor:External braking resistor;

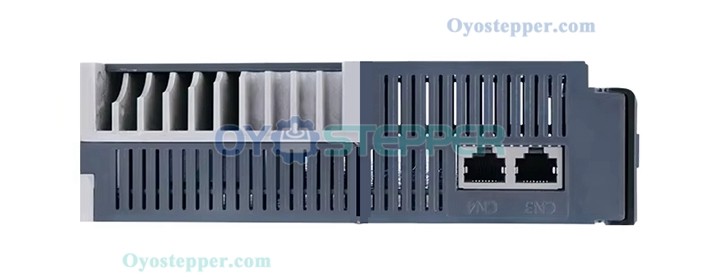

Communication function:RS232, for debugging on PC; RS485, support modbus protocol (only for reading data);

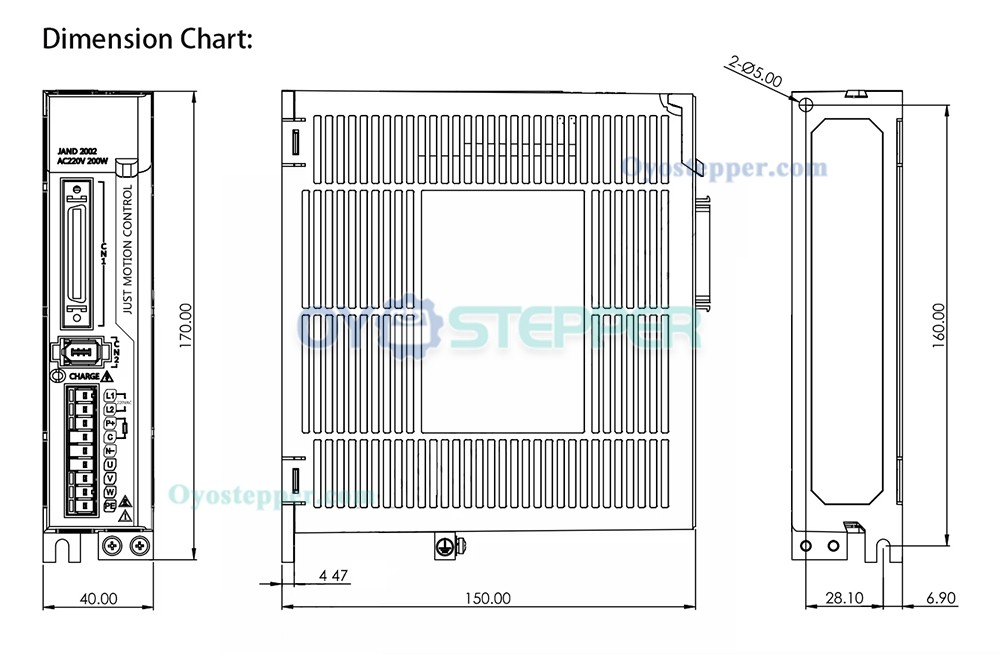

Dimension:150x160x40mm;
Weight;2kg;
