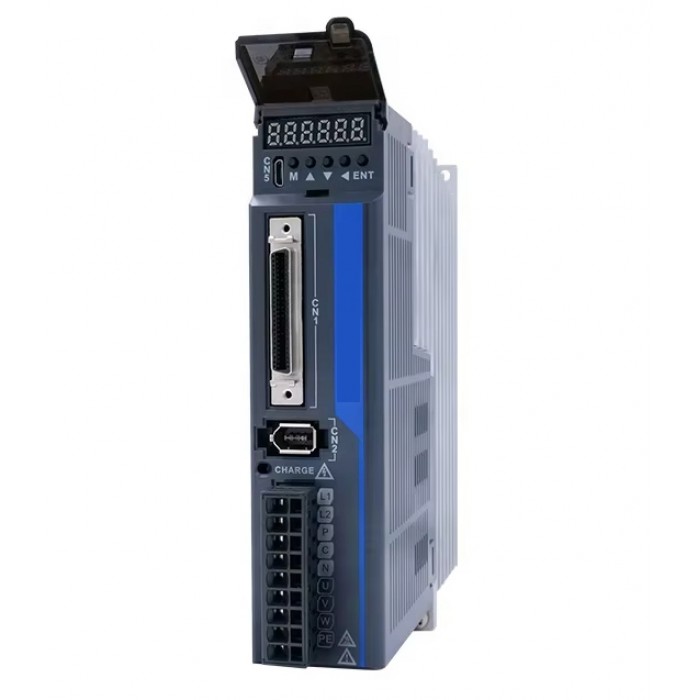

JAND4002-20B Servo Motor Driver 400W 180V-240V Single phase with RS485 Interface

JAND4002-20B Servo Motor Driver 400W 180V-240V Single phase with RS485 Interface

Features:
Multiple control mode options;
Equipped with automatic gain adjustment module;
Built-in disturbance torque observer;
Built-in FIP filter and multiple sets of notch filters;

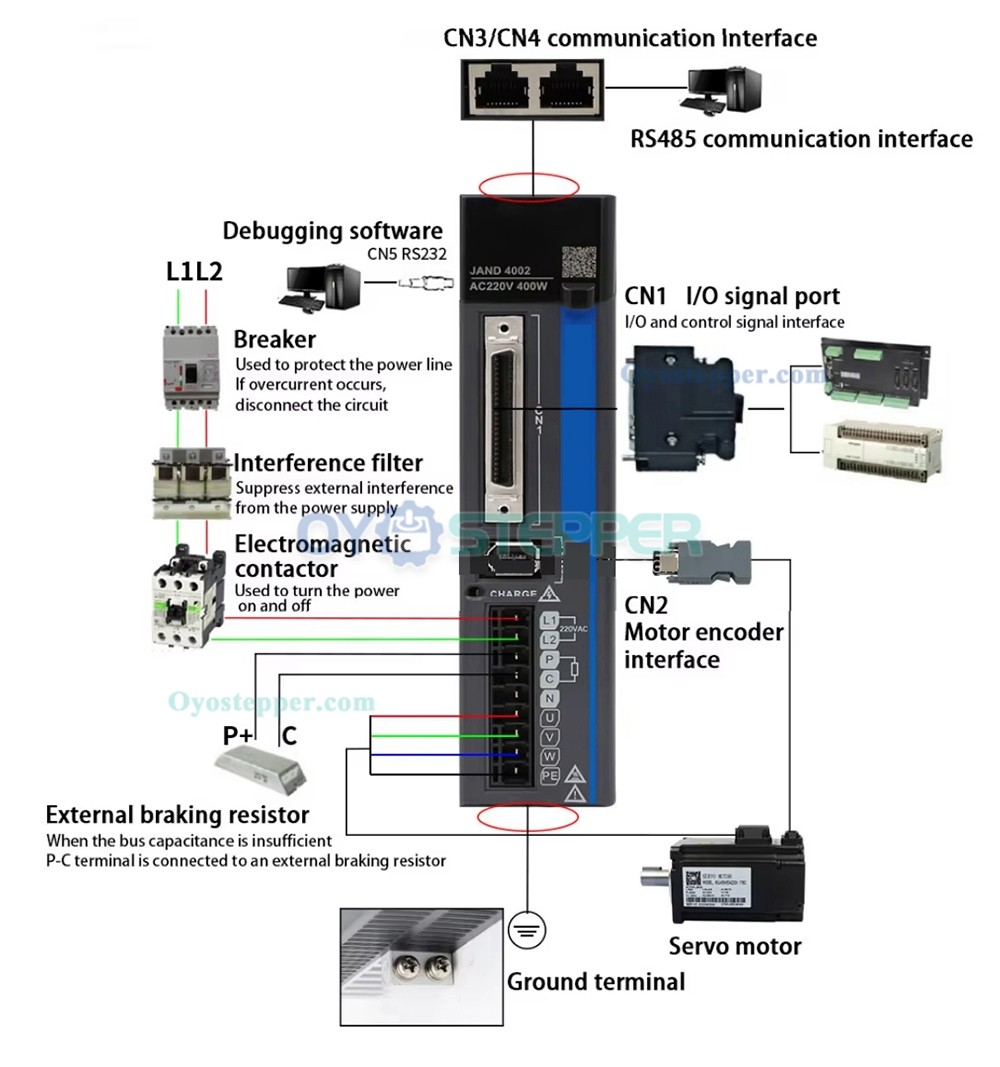

With RS485 interface, support MODBUS communication;

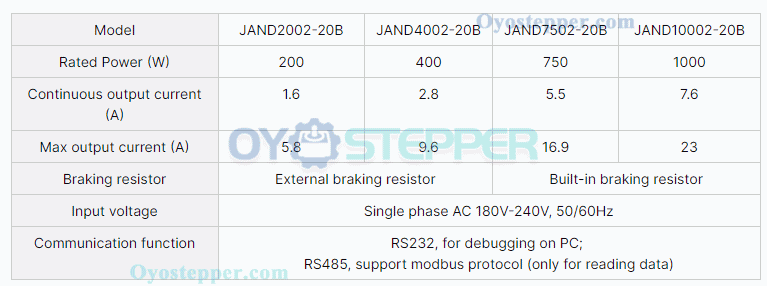

Specification:
Part Number:JAND4002-20B
Rated power:400W
Phase:Single phase
Continuous output current:2.8A
Max output Current:9.6A
Input voltage:Single phase AC 180V-240V, 50/60Hz;
Braking resistor:External braking resistor;
Communication function:RS232, for debugging on PC; RS485, support modbus protocol (only for reading data);

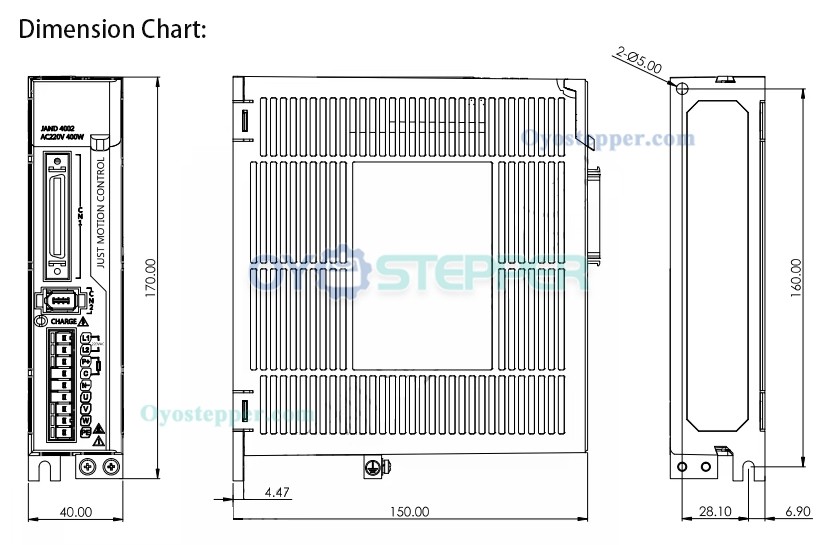

Dimension:170x150x40mm;
Weight;2.5kg;
