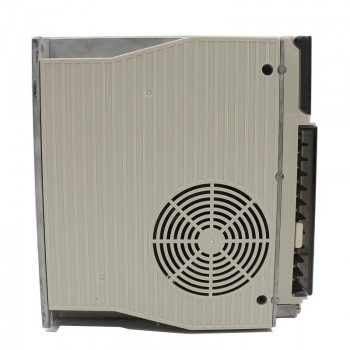

JASD20002-20B High Voltage AC Servo Motor Driver Controller 2KW 220V Single /3 Phase

JASD20002-20B High Voltage AC Servo Motor Driver Controller 2KW 220V Single /3 Phase

The servo drives adopts advanced DSP chip for motor control, large-scale programmable gate array (FPGA) and PIM power module. High integration, stable performance and reliable protection. It has a rich digital and analog I/O interface, can be used with a variety of host devices, and supports MODBUS communication protocol to facilitate networking. It also supports 2500-line incremental encoders and 17-bit, 20-bit high-precision absolute encoder motors to meet different customer requirements. It is widely used in CNC machine tools, printing and packaging machinery, textile machinery, robots, automated production lines and other automation fields.

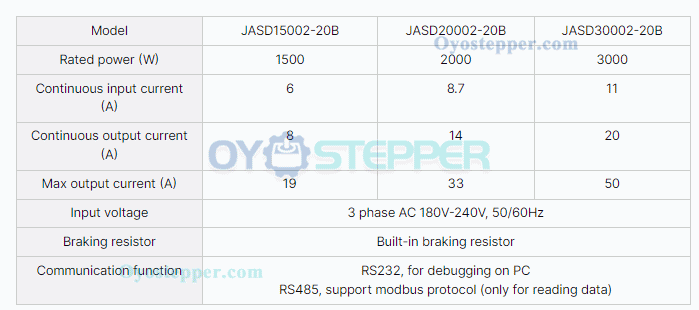

Specification:
Rated power:2KW
Single/3 phase 220V servo drive;
Single phase continuous input current:8.7A
Continuous output current:14A
Max output Current:33A
Input voltage:3 Phase AC 180V-240V, 50/60Hz;
Braking resistor:Built-in braking resistor;
Communication function:RS232, for debugging on PCRS485, support modbus protocol (only for reading data).

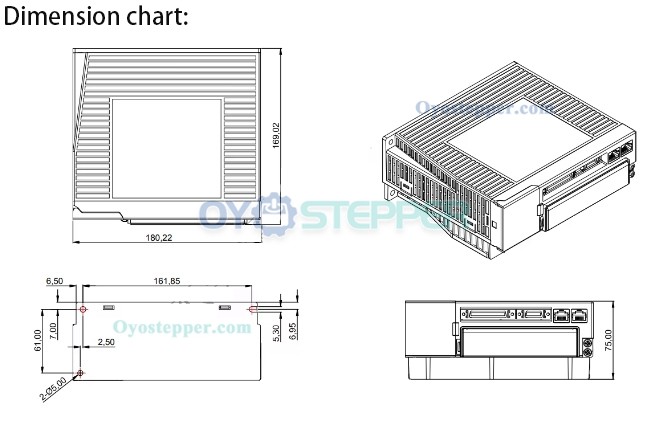

Dimension:180x169.5x75mm
Weight:4kg;
