JMC Nema 23 Servo Motor with Integrated Driver & Brake 180W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm
JMC Nema 23 Servo Motor with Integrated Driver & Brake 180W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm

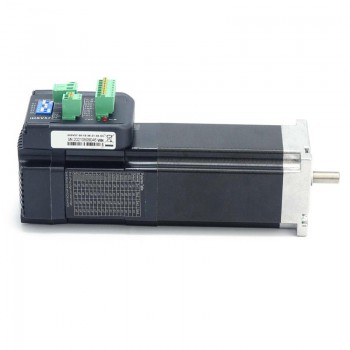

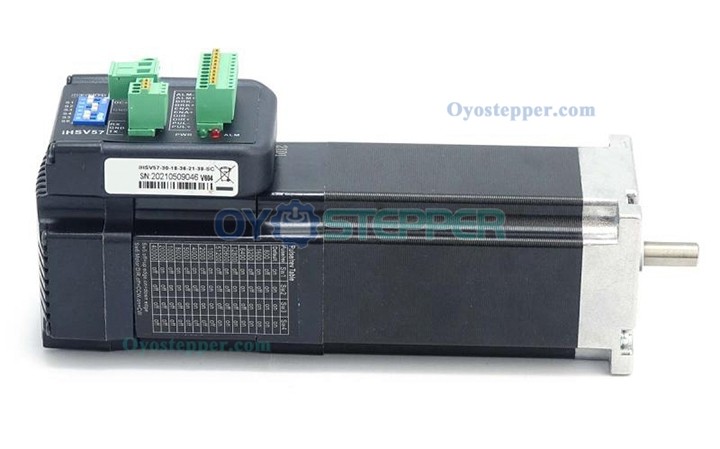

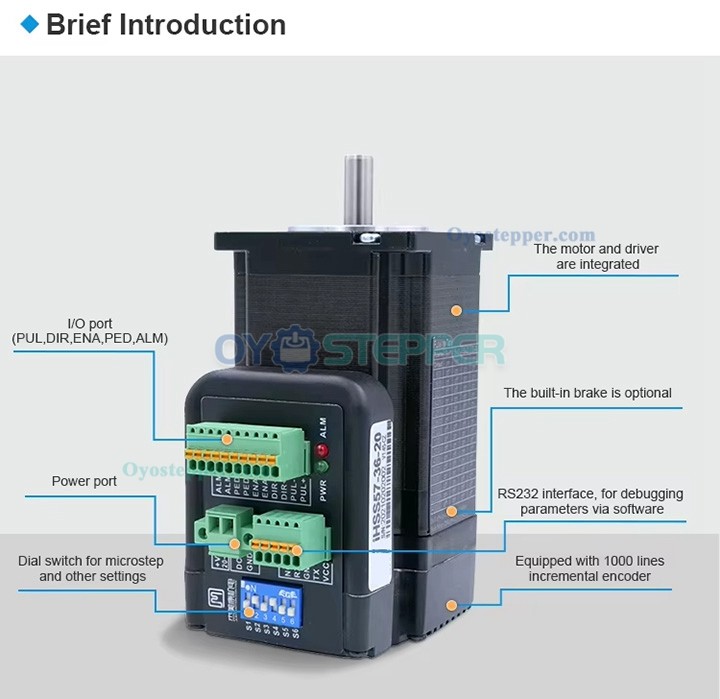

iHSV57-30-18-36-21-38-SC Integrated AC Servo Driving Motor is integrated AC servo drive into servo motor, adopts vector control in DSP chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV57 is a series of stable performance, high cost-effective motion control products.
Integrated brake:
The brake ensures that the axis is not moved when the voltage drops, e.g. the Z-axis moves down. Since servos have no self-holding in the voltage-free state, this can easily happen and damage the tool or workpiece. Therefore this motor has a brake, which is operated with 24V: If the voltage is applied, the brake opens. If the voltage drops, the brake is applied.
Electrical Specifications:
Manufacturer Part Number:iHSV57-30-18-36-21-38-SC
Number of Phase:3
No-load Speed: 4200RPM +/- 7%
Rated speed: 3000RPM +/- 7%
Rated torque: 0.6N.m(84.96 oz.in)
Rated Voltage:CV
Rated Current:7.5A
No-load Current:0.65A
Power:180W
Insulation Class:B

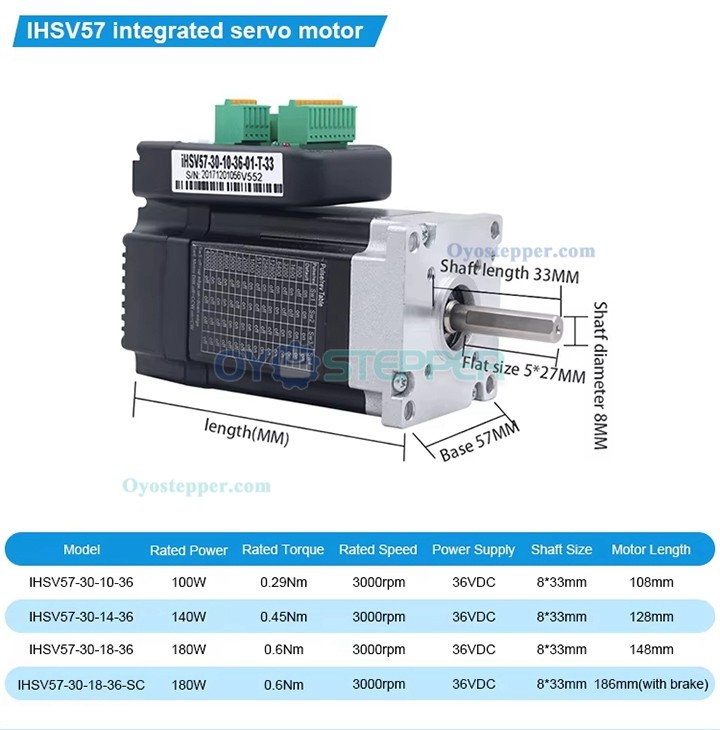

Physical Specifications:
Frame Size: 57 x 57mm
Body Length with Brake:185 mm
Shaft Length:33 mm
Shaft Diameter: Φ8 mm
D-cut Length: 27 mm
Weight: 2.2kg

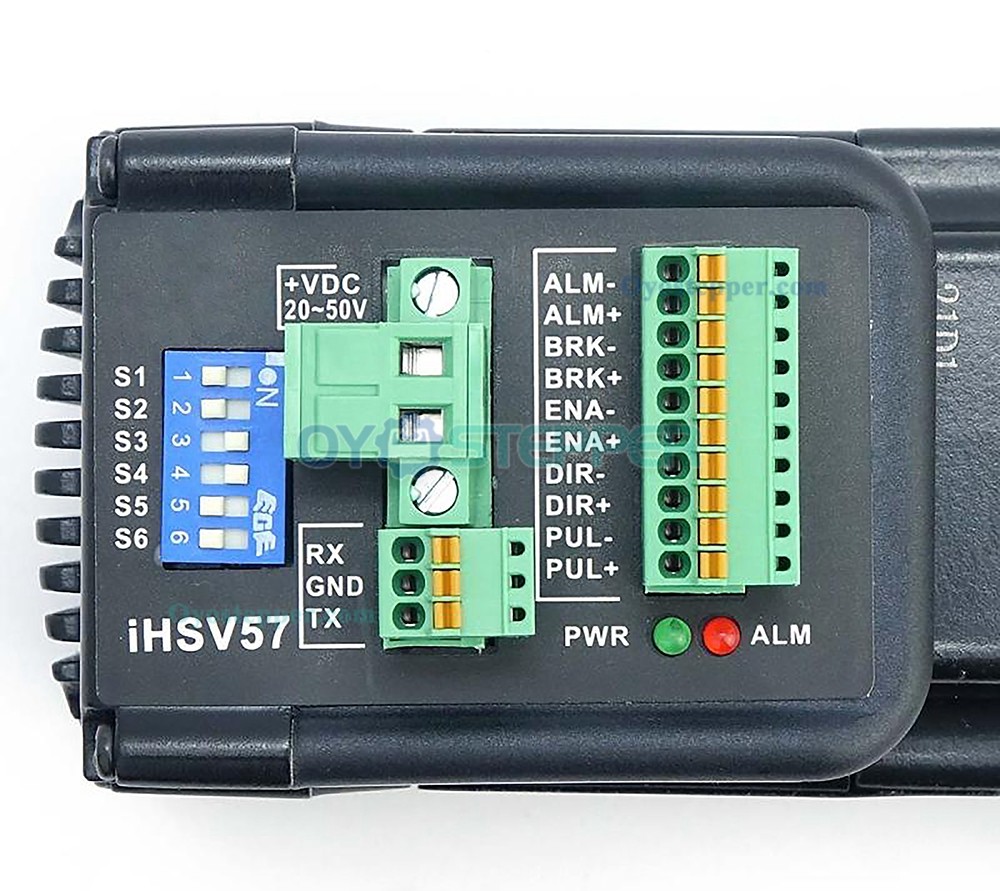

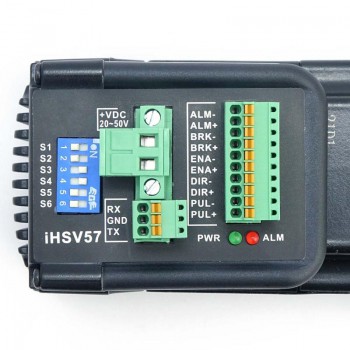

.jpg "JMC Nema 23 Servo Motor with Integrated Driver & Brake 180W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm")
.jpg "JMC Nema 23 Servo Motor with Integrated Driver & Brake 180W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm")

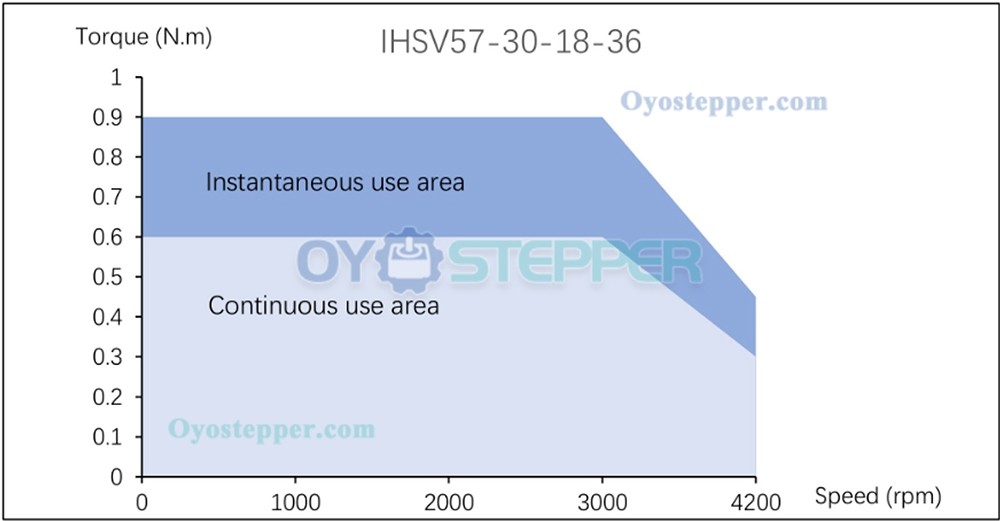

Torque diagram:
.jpg "JMC Nema 23 Servo Motor with Integrated Driver & Brake 180W 36V 0.65N.m 3 Phase 3000RPM 60 x 60mm")
Datasheet:DS_iHSV57-SCen_210914_rock.pdf
Manual:ihsv_v6_2020_manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Servo Motor Specification | |
|---|---|
| Rated Voltage | 36 |
| Rated Current | 7.5 |
| No-load Speed | 4200 |
| Number of Phase | 3 Phase |
| Rated Power(W) | 180 |
| Rated Speed(rpm) | 4000 |
| Peak Torque(Nm) | 0.6 |
| With Brake | With brake |
| Physical Specification | |
| D-cut Length | 27 |
| Body Length(mm) | 185 |
| Frame Size(mm) | 57 x 57 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 33 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
