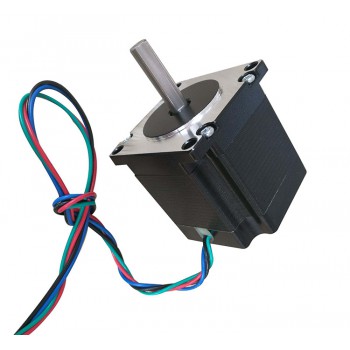

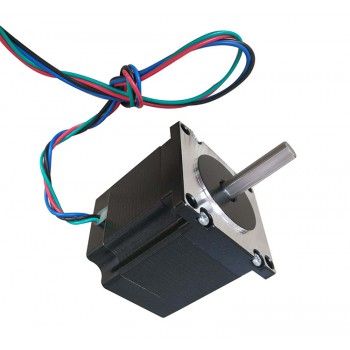

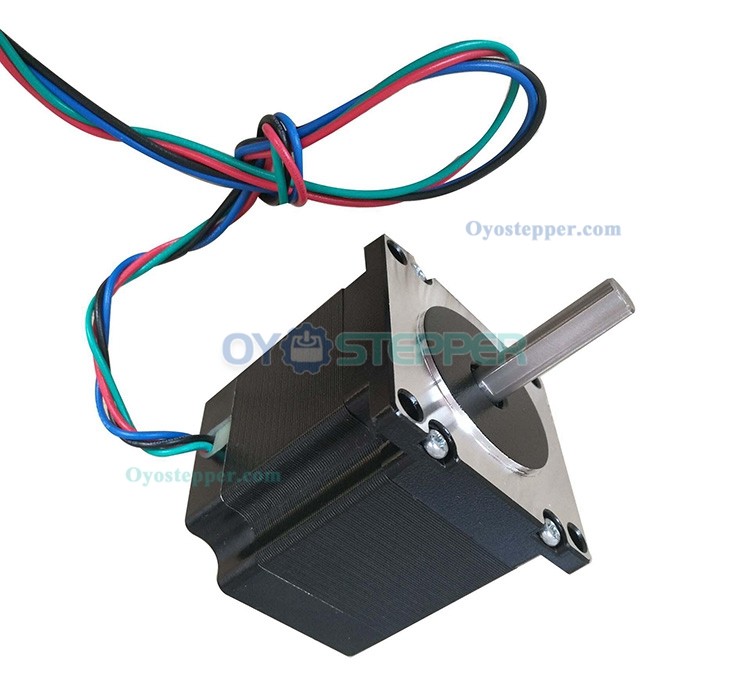

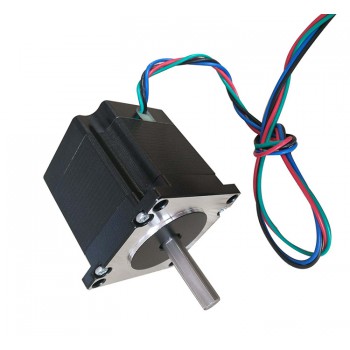

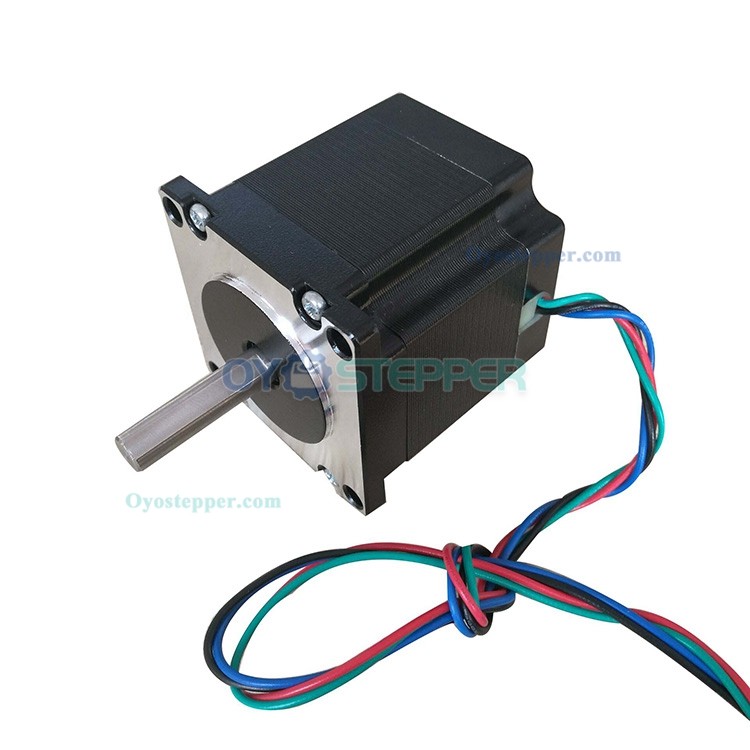

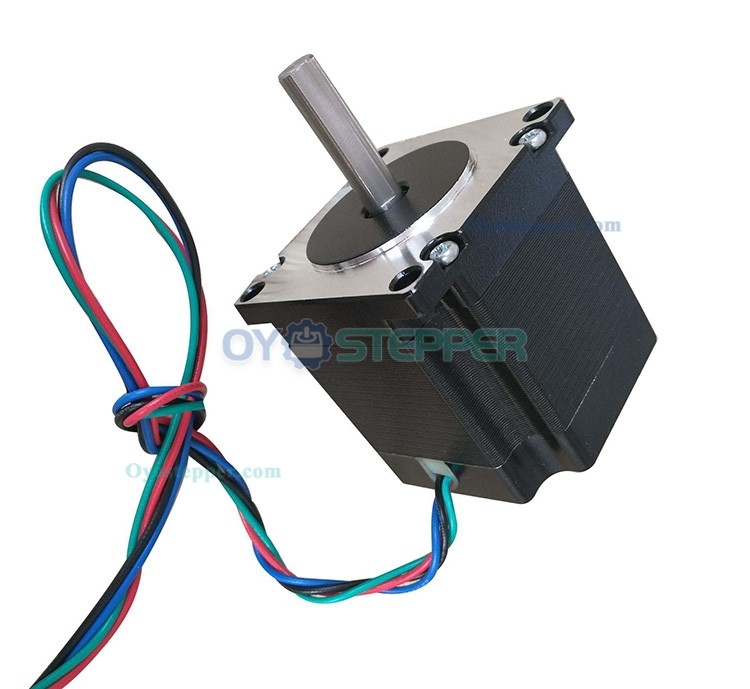

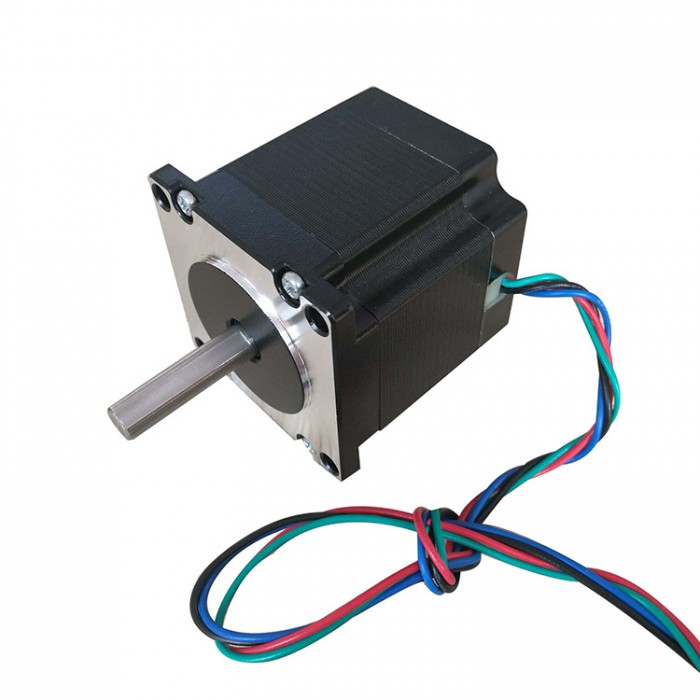

Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut
Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut

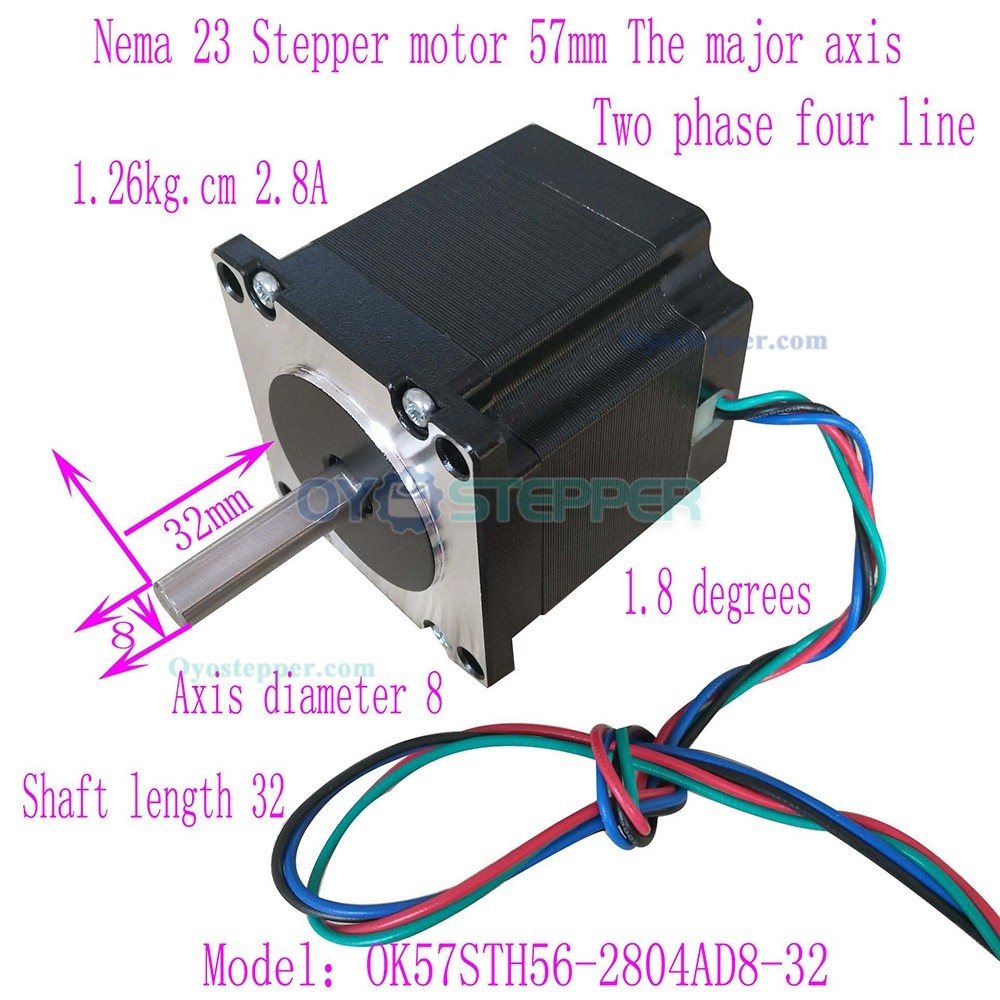

It has 2 phases, a 1.8° step angle, 12.35Ncm holding torque, and a rated voltage of 24-48V. It features a 57 x 57mm frame size, D-cut shaft with a diameter of 8mm, and a shaft length of 32mm.
Electrical Specification:
Manufacturer Part Number:OK57STH56-2804AD8-32
Motor Type: Bipolar Stepper
Number of Phase:2
Step Angle: 1.8 deg
Holding Torque:12.35Ncm (17.48oz.in)
Rated Current/phase:2.8A
Rated Voltage:24-48V
Phase Resistance: 0.9 ohms± 10%
Inductance: 2.5mH ± 20%(1KHz);

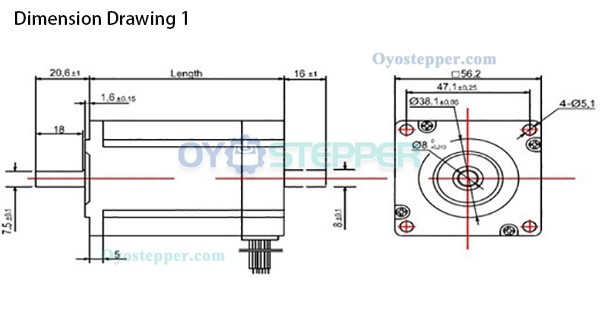

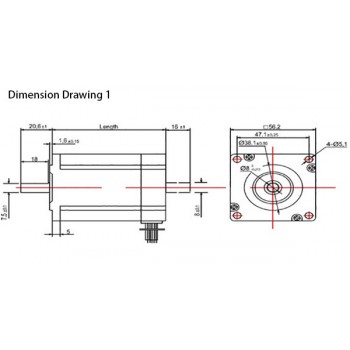

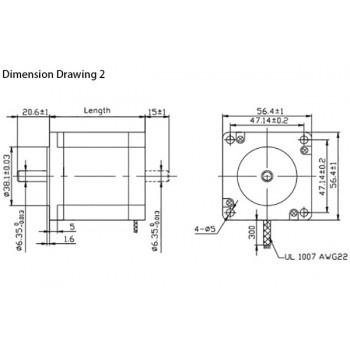

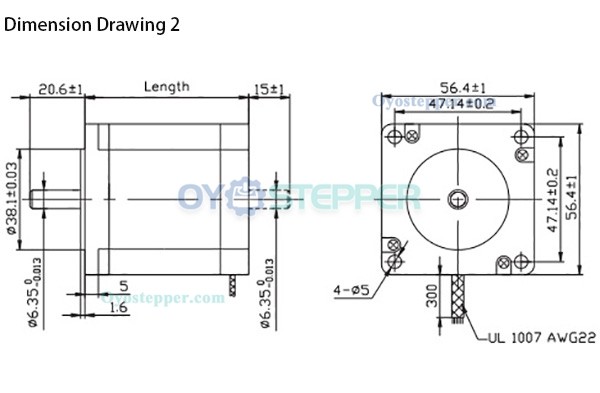

Physical Specification:
Frame Size: 57 x 57mm
Motor Length: 56mm
Shaft Diameter: Φ8mm
Shaft Length: 32mm
D-Cut Length: 15mm
Shaft Type: D-cut
Lead Length: 500mm

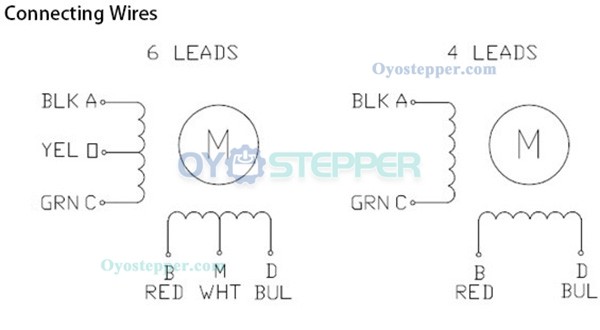

Number of Leads: 4
Lead Length: 500 mm
Weight: 0.8kg;
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
Note be noted that:If you need other model, please contact our customer service!
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
.jpg "Oukeda NEMA23 Stepper Motor 1.8 Deg 12.35Ncm (17.48oz.in) 2 Phase 57 x 57mm D-Cut")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 12.35 |
| Holding Torque (oz.in) | 17.48 |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 |
| Rated Voltage(V) | 24-48 |
| Physical Specification | |
| Body Length(mm) | 56 |
| Shaft Diameter(mm) | 15 |
| Shaft Length(mm) | 32 |
| Shaft Type | D-cut |
| Weight(g) | 800 |
| Frame Size(mm) | 57x57 |
