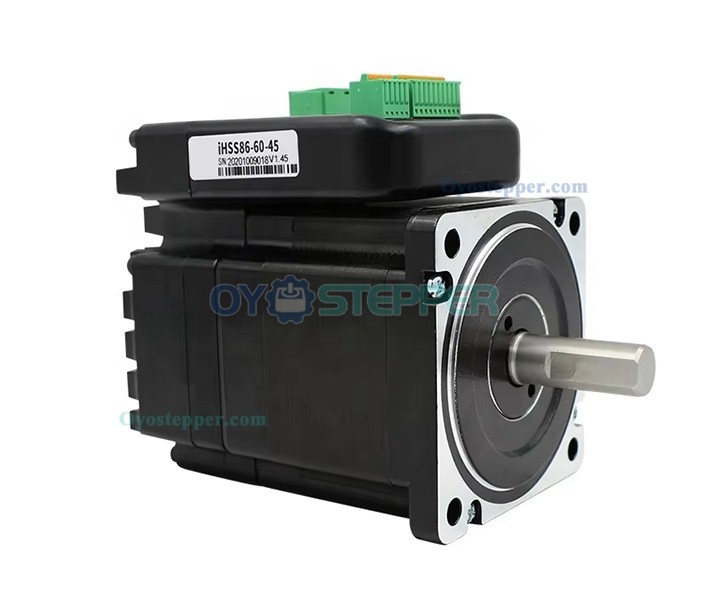

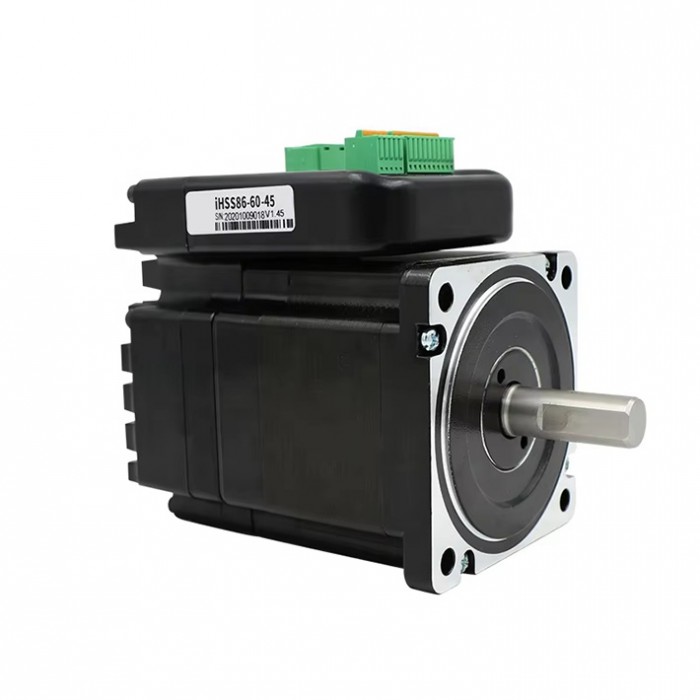

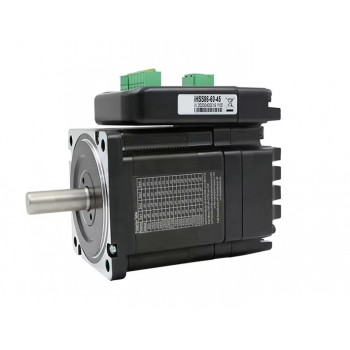

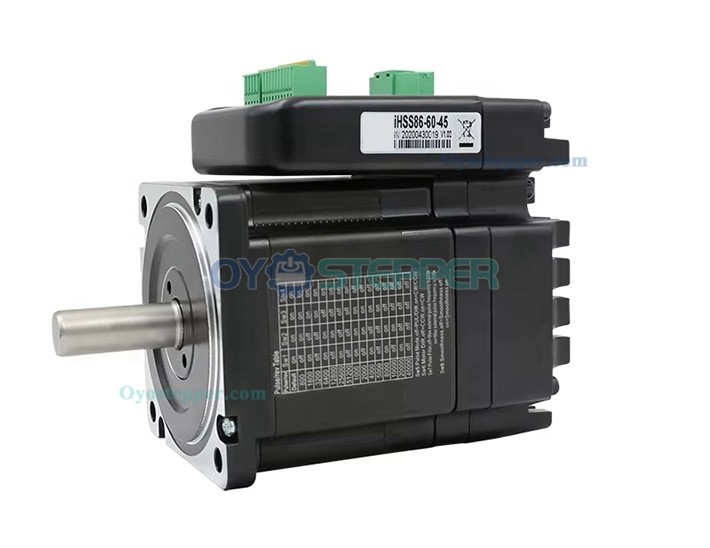

JMC NEMA 34 Closed Loop Integrated Stepper Motor 1.8 Deg 4.5Nm 6A 60V 2 Phase 86 x 86mm

JMC NEMA 34 Closed Loop Integrated Stepper Motor 1.8 Deg 4.5Nm 6A 60V 2 Phase 86 x 86mm

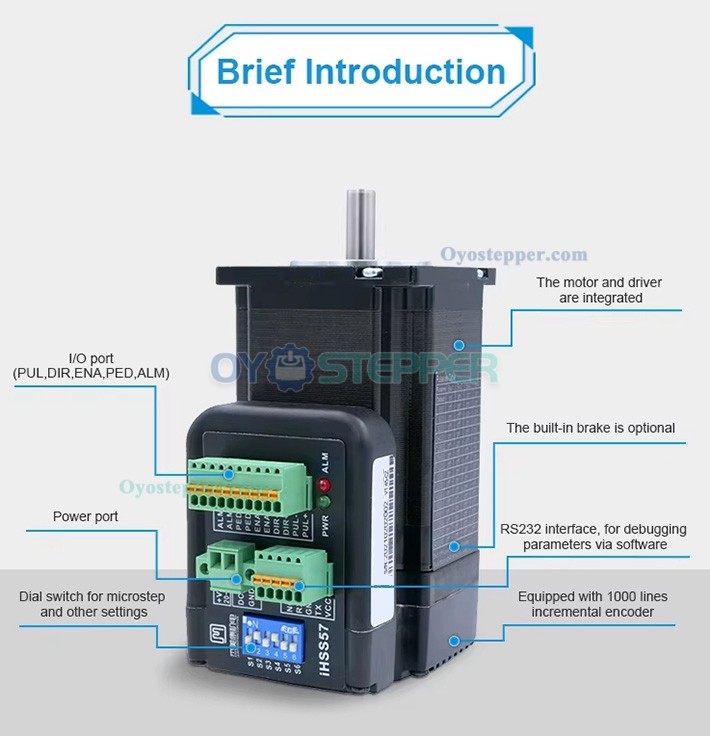

Features:
Integrated compact size for saving mounting space;
Without losing step, high accuracy in positioning;
Variable current control technology, high current efficiency;
Small vibration, smooth and reliable moving at low speed;
Accelerate and decelerate control inside, significant improvement in smoothness of starting or stopping the motor.
User-defined micro steps;
No adjustment in general applications;
Over current, over voltage and over position error protection;
Green light means running while red light means protection or off line.


Application:
Suitable for small milling machines, 3D-printers, lathes, robots, winding machines or general positioning.
Compatible with CNC controls such as Beamicon. Estlcam, Mach3, Eding, Linuxcnc and many more.

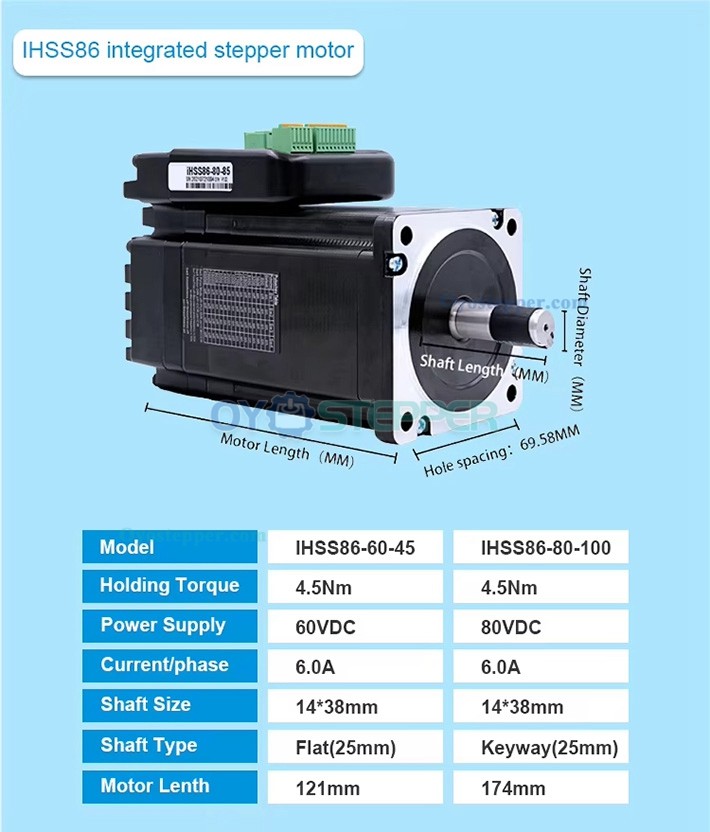

Electrical Specifications:
Manufacturer Part Number:IHSS86-60-45
Number of Phase:2
Step Angle:1.8 deg
Step Angle Accuracy:±0.09°
Holding Torque:4.5Nm(637.25 oz.in)
Rated Current/phase:6A
Rated Voltage:60VDC
Power Supply:60VDC
Encoder line: 1000 lines
Resistance/phase:0.43Ω±10%
Inductance/phase:2.7MH±20%
Temperature Rise Max:80℃
Dielectric Strength:500VDC
Rotor Inertia:690g.cm²
Pulse Frequency: max. 200 kHz
Radial Play:Max 0.025mm (load 450g)
Axial Play:Max 0.075mm (load 920g);

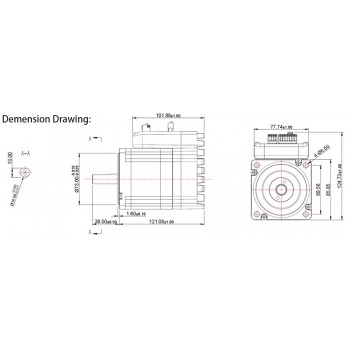

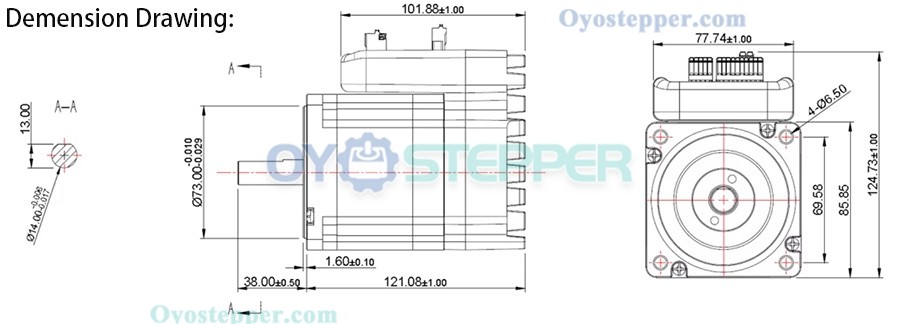

Physical Specifications:
Frame Size: 86 x 86mm
Body Length:121mm
Shaft Length:38mm
Shaft Diameter: Φ14mm
D-cut Length:25mm
Weight: 3.1kg;
