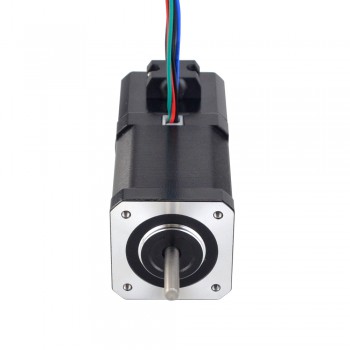

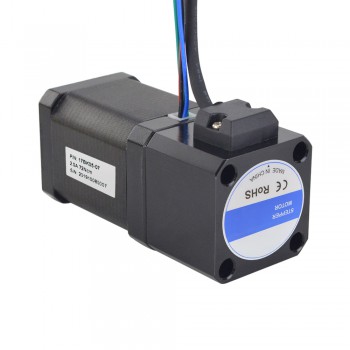

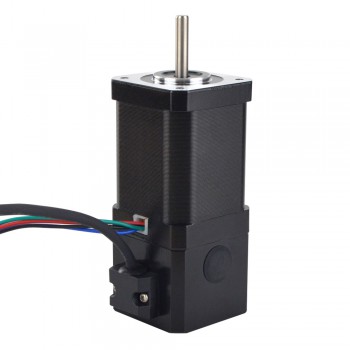

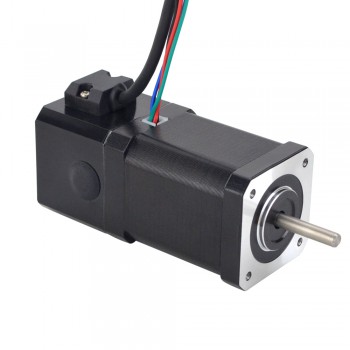

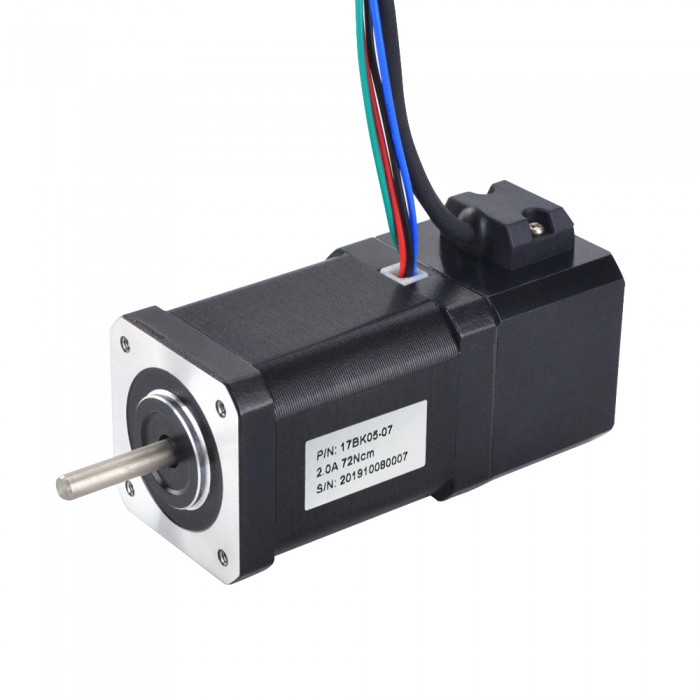

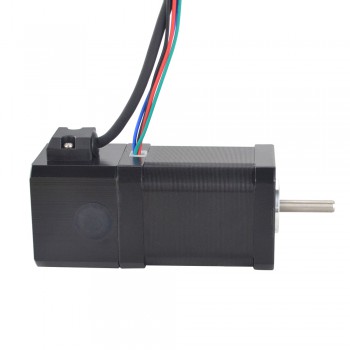

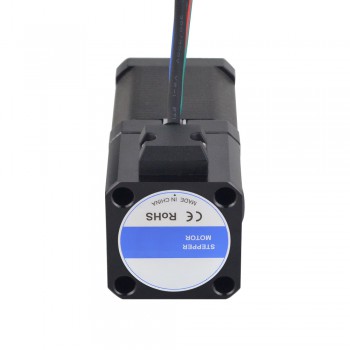

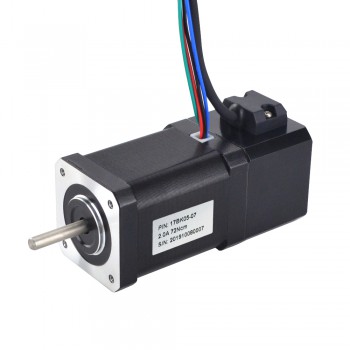

P Series Nema 17 Stepper Motor 1.8 Deg 72Ncm/101.98oz.in 2 Phase 2.0 A with Electromagnetic Brake
Electrical Specification
Manufacturer Part Number: 17BK05-07
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 72 Ncm(101.98 oz.in)
Rated Current/phase: 2.0 A
Phase Resistance: 1.75 ohms
Inductance: 4.0 mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42 mm
Body Length: 60 mm
Shaft Diameter: Φ5 mm
Shaft Length: 24 mm
D-Cut Shaft Length: 15 mm
Number of Leads: 4
Lead Length: 450 mm
Weight: 0.5 kg
Brake Connections
Red--24V+
Red--24V-
0.5Nm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 17BK05-07.pdf
Torque Curve: 17BK05-07 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 72 |
| Holding Torque (oz.in) | 101.98 |
| Inductance(mH) | 4.0 |
| Lead Length(mm) | 450 |
| Motor Nema Size | Nema 17 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.75 |
| Rated Current (A) | 2.0 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Brake Specification | |
| Driving Voltage(V) | 24 |
| Static Friction Torque(Nm) | 0.5 |
| Static Friction Torque(oz.in) | 70.82 |
