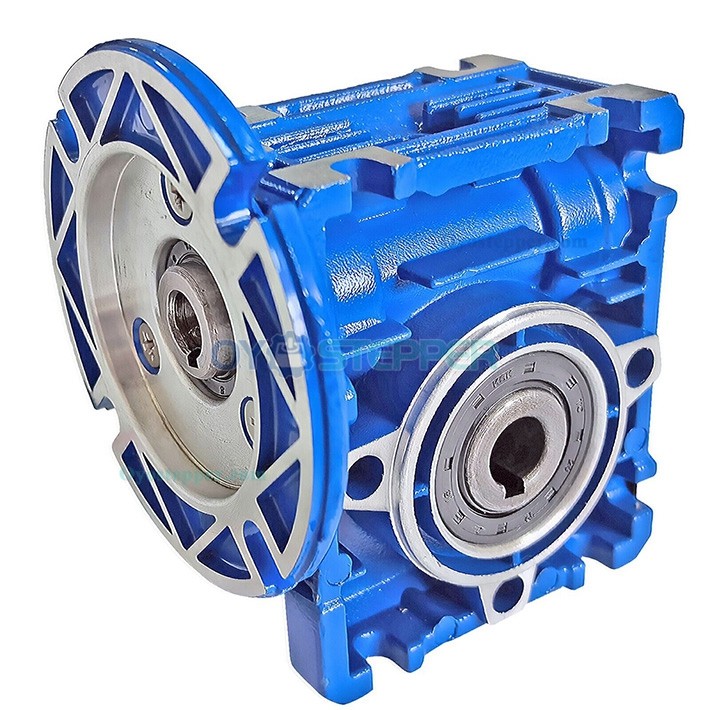

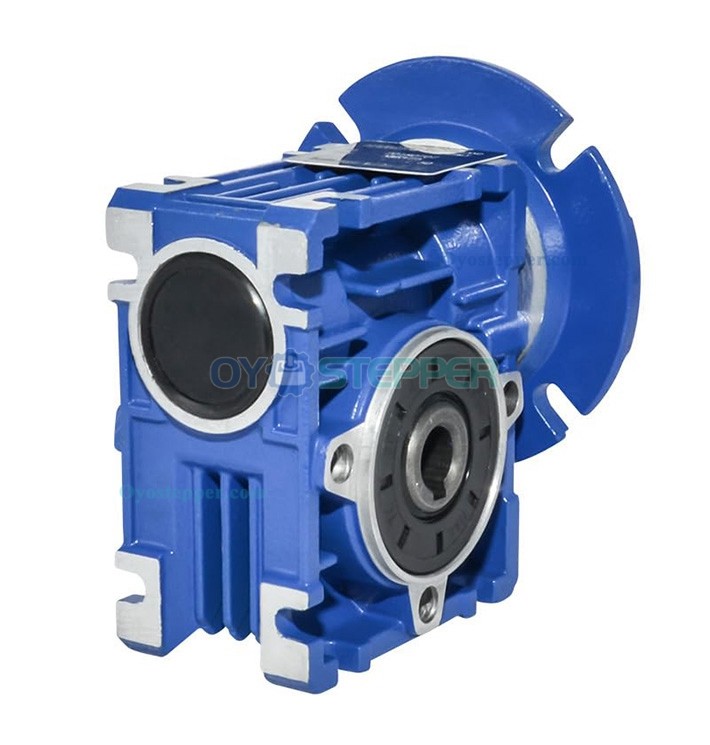

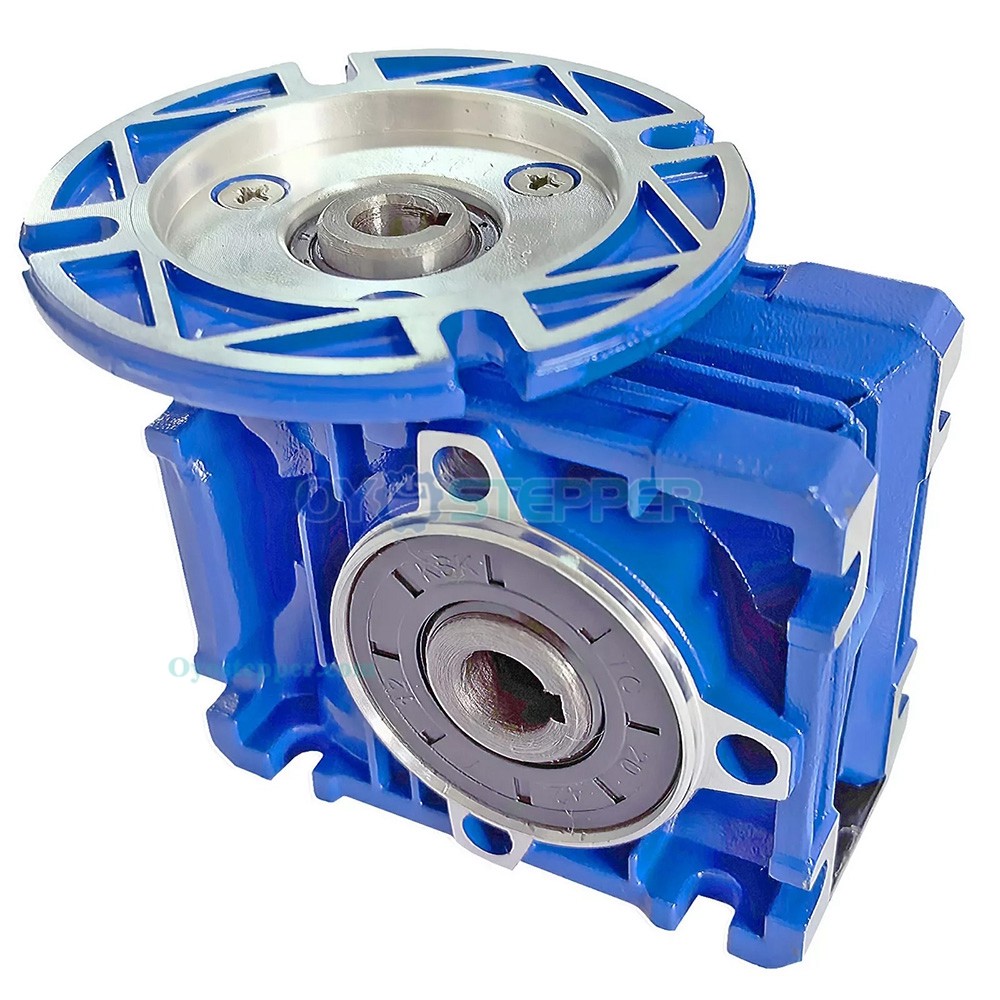

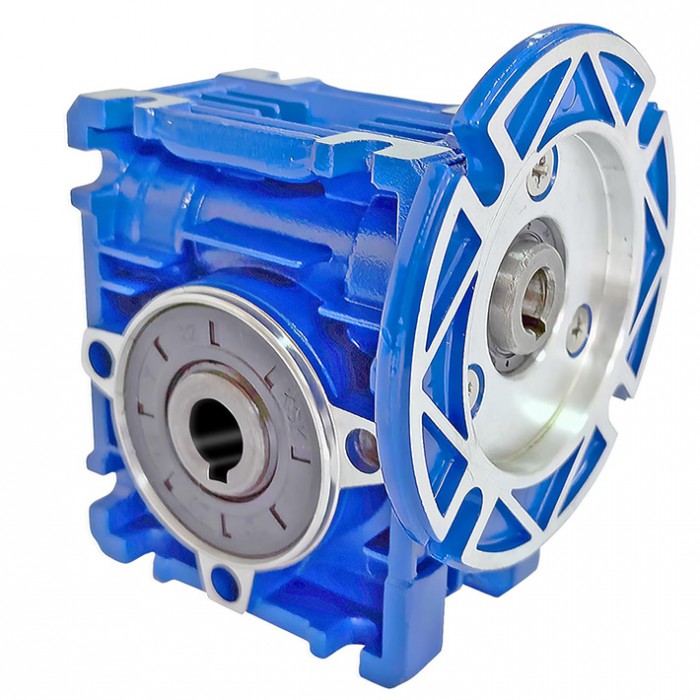

NMRV025 Worm Gearbox Speed Reducer 56B14 Gear Ratio 10:1/20:1/30:1/40:1/50:1/60:1

NMRV025 Worm Gearbox Speed Reducer 56B14 Gear Ratio 10:1/20:1/30:1/40:1/50:1/60:1 Input Diameter 9mm

Features:

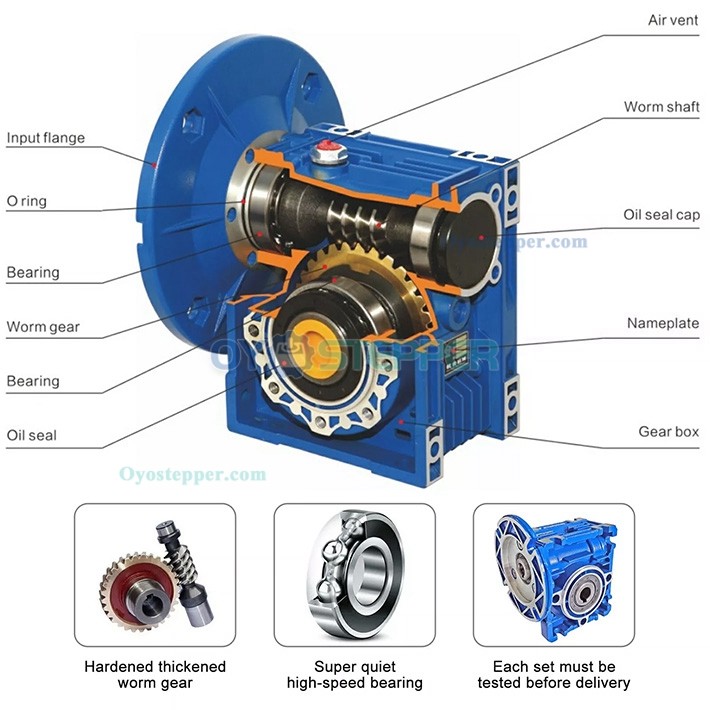

The Worm Gearbox is made of aluminium alloy, which is stable and durable.

Inside the fuselage, using metal gears, running smoothly and quite quiet, durable.

Each product has undergone rigorous inspection, stable transmission, low noise.

Different from the traditional way, sprocket-free, pulley, transmission structure, no leakage, reduce the injury of workers.

Waterproof, dustproof, reducer protection, etc. IP55, effective isolation for dust and moisture.

Compared to traditional machines, we are small and light, and can carry different accessories.

Specifications:

Input Power : 0.06 KW~0.18 KW

Out speed: 18~240 RPM

Input diameter: 9 mm

Output diameter: 11 mm

Reduction Ratio: 7.5:1/10:1/15:1/20:1/30:1/40:1/50:1/60:1

Worm gearbox can be positive and reverse operation.

Package Included:

1pcs x Reduce worm gear;
