NMRV050 Round Worm Gear Reducer Ratio 5:1-100:1 Input 11mm 14mm 19mm Output 25mm

Name: NMRV050 Round Worm Gear Reducer Ratio 5:1-100:1 Input 11mm 14mm 19mm Output 25mm
Brand: Oyostepper
SKU: OSP001430
Price: 152.00 USD
Availability: InStock

NO.:OSP001430
Post a review

Our Price:$152.00

Ratio:

Quantity:- +

Add To Cart

Add To My Favorites

Affiliate Link

Description Specification Custom Options Review

NMRV050 Series Round Worm Gearbox Ratio 5:1-100:1 Input 11mm 14mm 19mm for Servo/Stepper Motor

Specifications:

Torque: 21 - 89N.m

Usage: BOAT,CAR,Electric Bicycle,FAN,Home Appliance

Model Number: NMRV050

Continuous Current(A): Acording to the motor

Construction: Permanent Magnet

Type: Gear Motor

Protect Feature: Drip-proof

Commutation: Brush

Efficiency: IE 1

Output Power: 0.18 - 0.75KW

Material of housing: Aluminium Alloy

Input Bore Size: 11mm 14mm 19mm

Output hole diameter: 25mm

Input Speed: about 1500 rpm

Speed ratio: 5:1 , 7.5:1 , 10:1 , 15:1 , 20:1 , 25:1 , 30:1 , 40:1 , 50:1 , 60:1 , 80:1 , 100:1

IEC Flange: 80B5 80B14 71B5 71B14 63B5

Application: Matched with Servo/Stepper Motor

Output Speed: Changes with the speed ratio

NMRV050 Round Worm Gear Reducer Ratio 5:1-100:1 Input 11mm 14mm 19mm Output 25mm

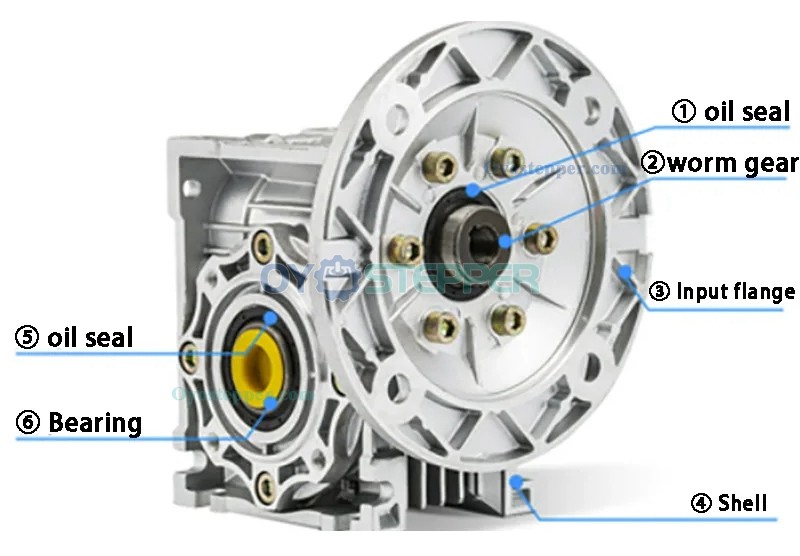

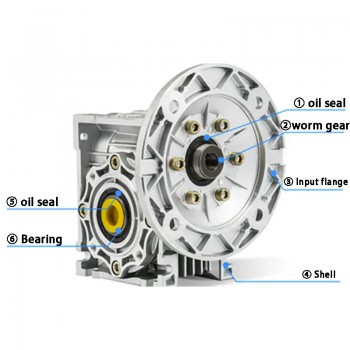

① Oil Seal

② Worm Gear

③ Input Flange

④ Shell

⑤ Oil Seal

⑥ Bearing

NMRV050 Round Worm Gear Reducer Ratio 5:1-100:1 Input 11mm 14mm 19mm Output 25mm

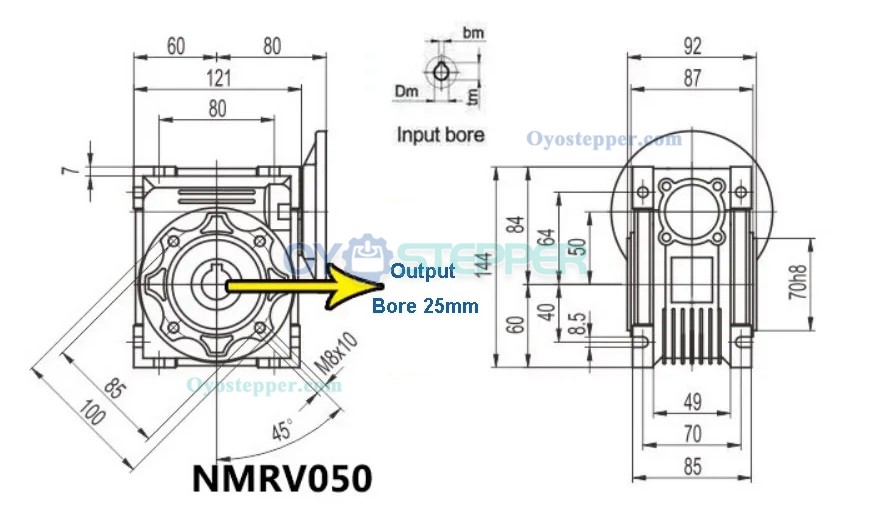

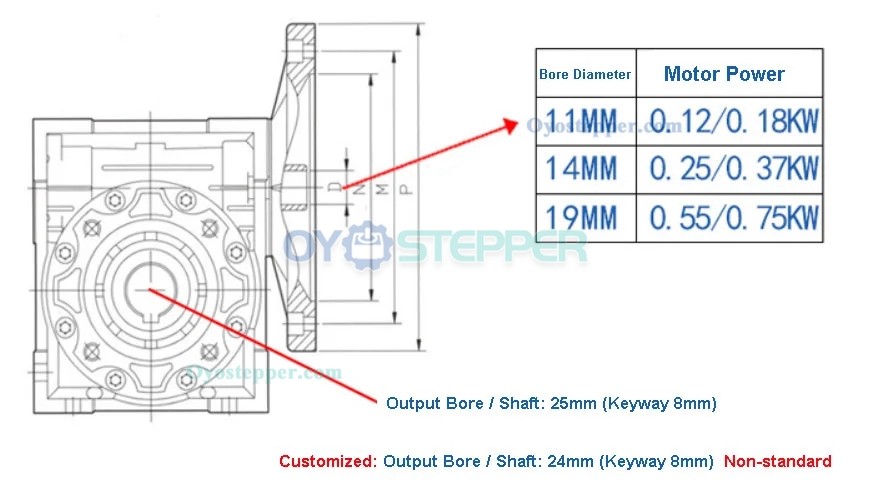

Center Distance A	Motor Flange						Input Shaft Hole Diameter
	PAM IEC	N	M	P	bm	tm	Transmission Ratio
							5	7.5	10	15	20	25	30	40	50	60	80	100
NMRV050	80B5	130	165	200	6	21.8	-	19	19	19	19	19	19	-	-	-	-	-
	80B14	80	100	120
	71B5	110	130	160	5	16.3	-	14	14	14	14	14	14	14	14	14	14	-
	71B14	70	85	105
	63B5	95	115	140	4	12.8	-	-	-	-	-	-	-	11	11	11	11	11
