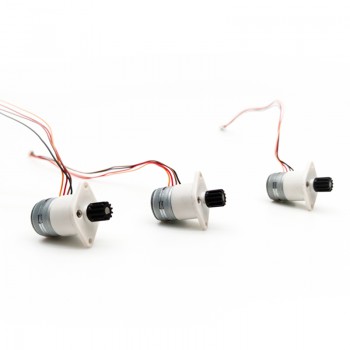

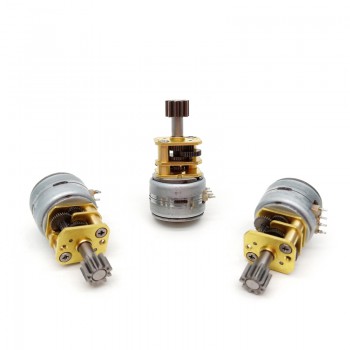

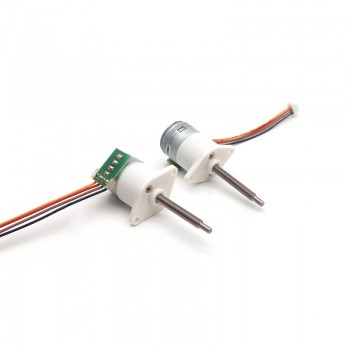

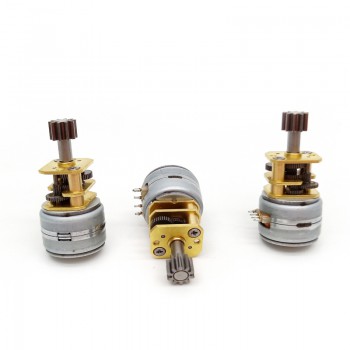

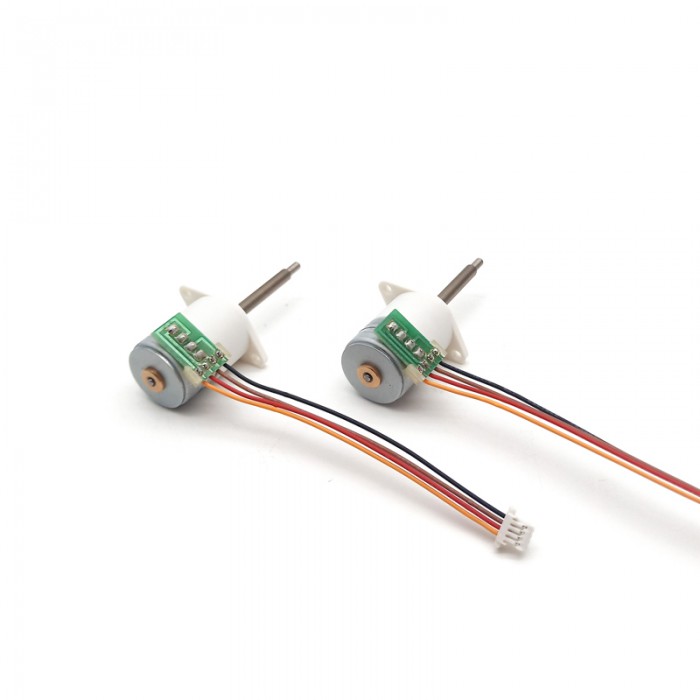

2Pcs 5V Micro DC Stepper Gear Motor with Gearbox Small DC Gear Motor 18° 500mA 700g,cm 2 Phase
Features:
Slow Speed Torque
Precise Positioning
Long lifespan
Flexible application
Low-Speed Synchronous Rotation
Application:
3D Printers;
CNC machine,
Camera Platforms
Robotics;
Process Automation;

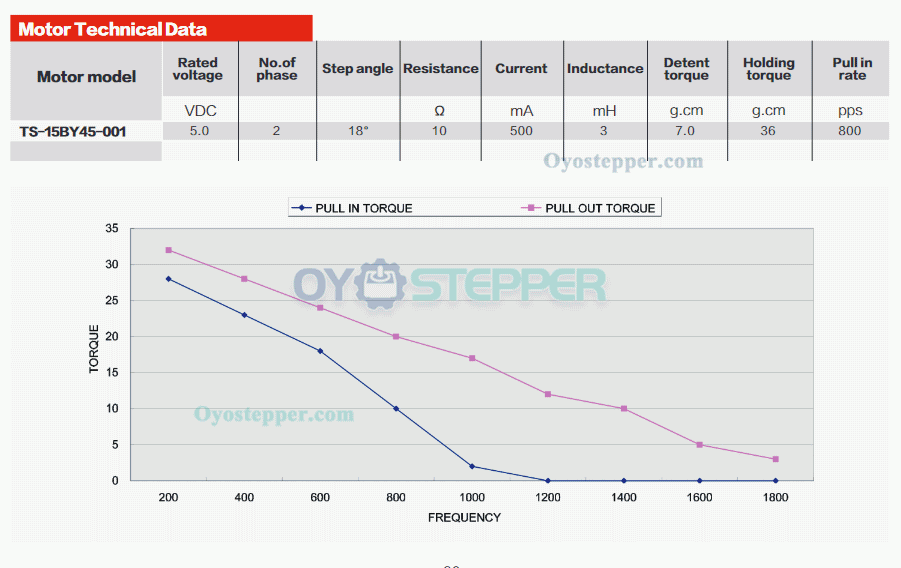

Electrical Specification：
Part Number: TQGM12-15BY
Rated Voltage:5V
Rated current:500mA
Rated Torque:700g,cm
Holding Torque 36g.cm
Resistance:10Ω
Step Angle:18°
Pull in rate:800pps
Phase:2
Construction:Permanent Magnet
Noise:Low Noise Level

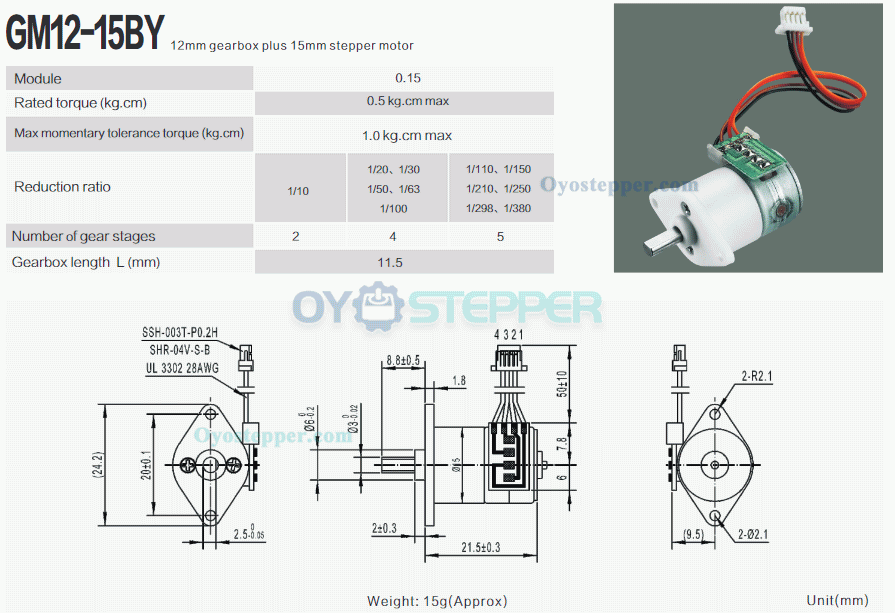

Physical Specification:
Motor Size: 12*21.5mm
Shaft Type:D-cut
D-cut Diameter:2.5mm
D-cut Length:6.8mm
Shaft Diameter:3mm
Shaft Length:6.8mm
Weight:15g
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 12*21.5 |
| Weight(g) | 15 |
| Body Length(mm) | 21.5 |
| Shaft Diameter(mm) | 3 |
| Shaft Length(mm) | 6.8 |
| Shaft Type | D-cut |
| Electrical Specification | |
| Input Voltage(V) | 5 |
| Current(A) | 0.5 |
| Rated Torque(kg.cm) | 0.7 |
| Phase Resistance(ohm) | 10 |
| Holding Torque(mN.m) | 3.6 |
| No. of Phase | 2 |
| Step Angle(deg.) | 18° |
