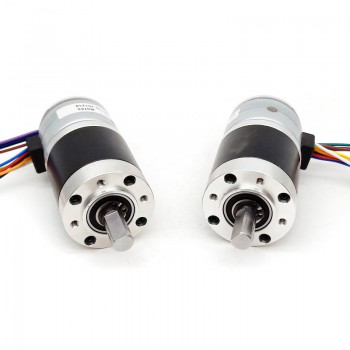

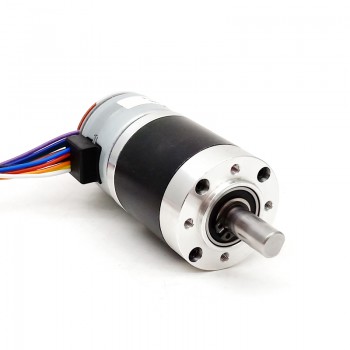

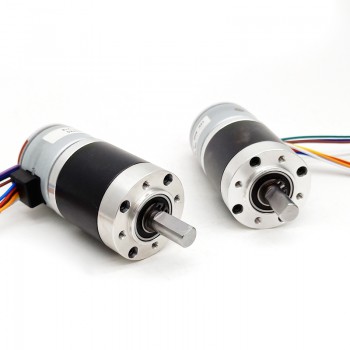

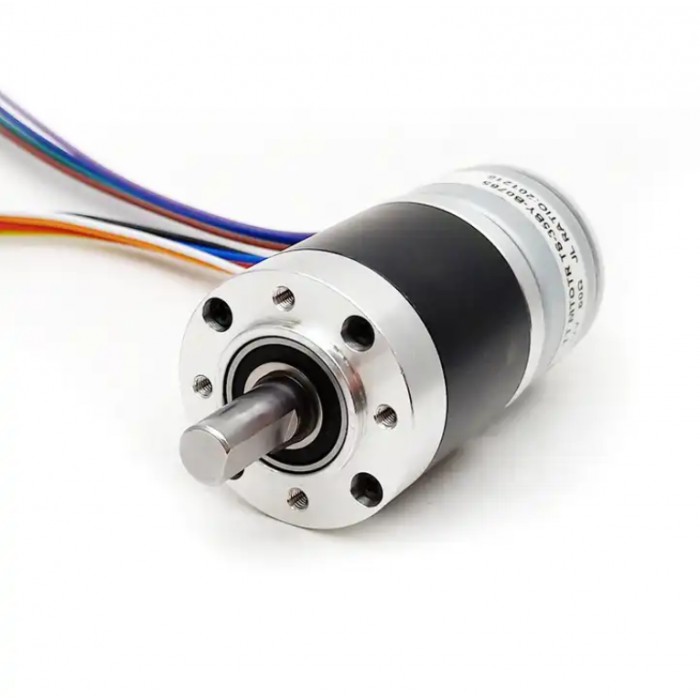

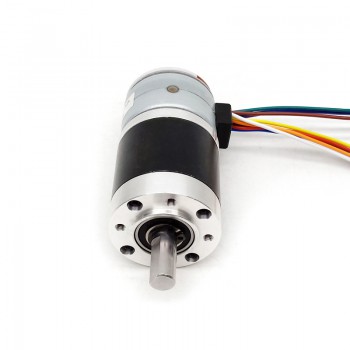

2Pcs 12V Stepper Gear Motor with Planetary Gearbox Gear Reduction 4 Phase Low Speed DC Motor
Application:
Three-dimensional printers, Platforms for CNC cameras,Robotics, Process Automation.
Reduction ratio:4/14/19/27/51/71/100/139/189/264/369/516/720
1 stages: 4:1
2 stages: 14:1 / 19:1 / 27:1
3 stages: 51:1 / 71:1 / 100:1 / 139:1
4 stages: 189:1 / 264:1 / 369:1 / 516:1 / 720:1

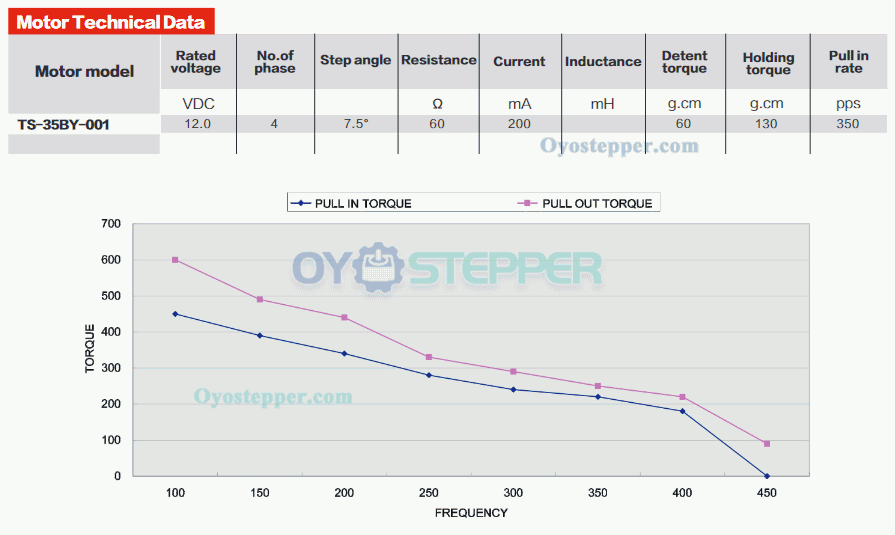

Electrical Specification：
Part Number:GMP36-35BY
Rated Voltage:12VDC
No.of Phase:4
Step angle:7.5°
Resistance:60Ω
Rated Torque:30.0Kg.cm
Max momentary tolerance torque: 60.0kg.cm
Rated current:200mA
Detent torque:60g.cm
Holding torque:130g.cm
Output power:6.6~88W
Pull in rate:350pps
Gear type:Plantary Gearbox
Motor type:Stepper Motor
Efficiency: 70%
Noise:30cm.40-50DB

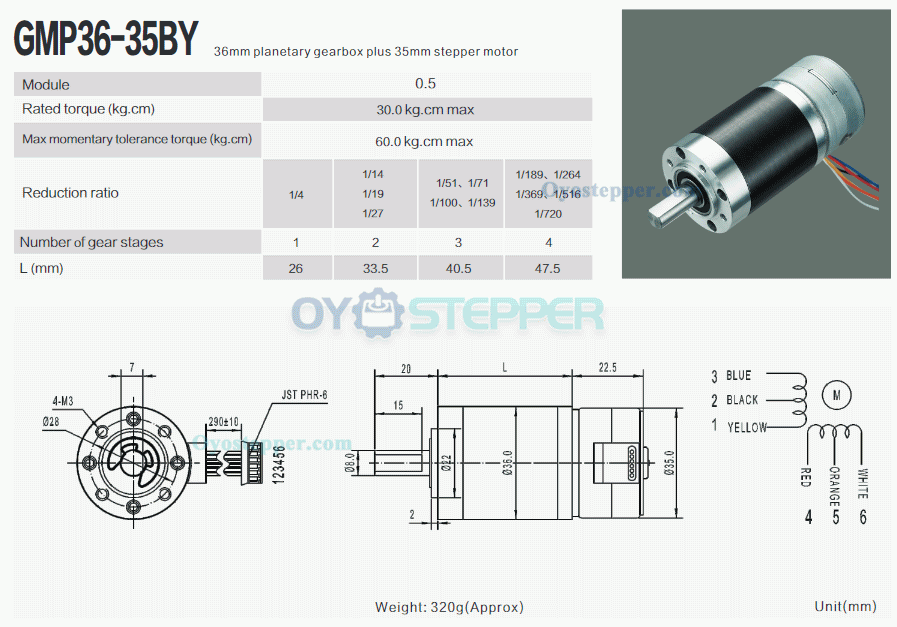

Physical Specification:
Motor Size:Φ35*22.5mm
Motor Diameter:35mm
Length:22.5mm+Planetary gearbox
Gearbox Diameter:36mm
Gearbox Length:26mm (1 stages) / 33.5mm (2 stages) / 40.5mm (3 stages) / 47.5mm (4 stages)
D-cut Length: 15mm
D-cut Diameter:7mm
Shaft Length:18mm
Shaft Diameter:8mm
Weight:320g
Number of leads:6
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 36 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 20 |
| Gear Ratio | 71:1 / 139:1 / 264:1 / 516:1 / 4:1 / 14:1 / 19:1 / 27:1 / 100:1 / 189:1 / 369:1 / 720:1 |
| Body Length(mm) | 22.5mm+gearbox |
| Weight(g) | 320 |
| No. of Lead | 6 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Gearbox Type | Planetary Gearbox |
| Electrical Specification | |
| No. of Phase | 4 |
| Phase Resistance(ohm) | 60 |
| Step Angle(°) | 7.5 |
| Rated Voltage(V) | 12 |
| Rated Torque(kg.cm) | 30 |
| Rated Current (A) | 0.2 |
| Motor Type | Stepper Gear Motor |
| Rated Power(W) | 6.6~88 |
