4 Axis Stepper Motor Kit 3.1Nm(439oz.in) 1.8 Deg Nema 24 Stepper Motor & Driver & Power Supply

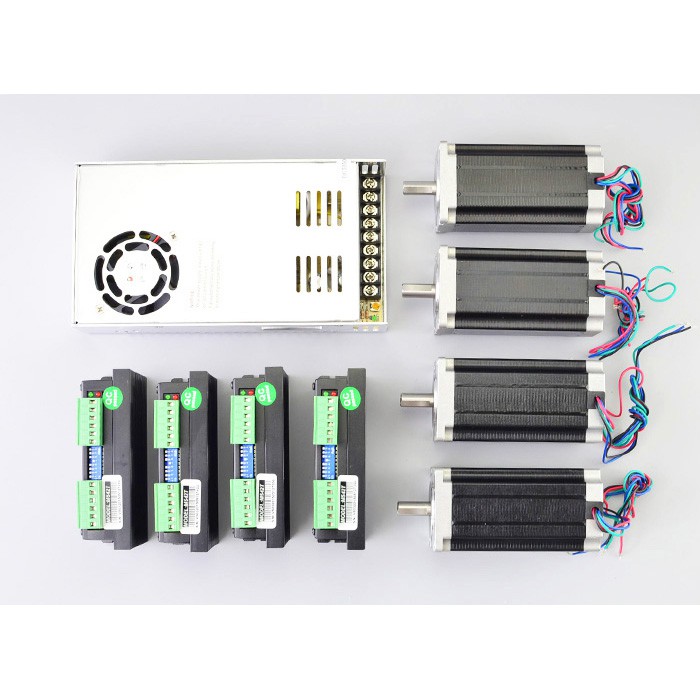

This CNC kit included:

4 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor

4 x 3.1Nm (439oz.in) of Nema 24 Stepper Motor

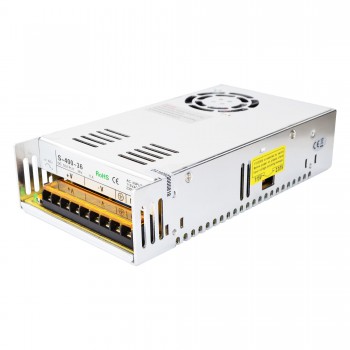

1 x 400W 36V 11A 115/230V Switching Power Supply

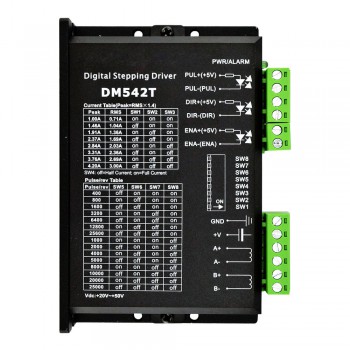

Driver Specification

Input voltage 20-50VDC

Anti-Resonance provides suitable torque and nulls mid-range instability

Motor auto-identification and parameter auto-configuration when power on, offer quick responses with different motors

Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement

15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

Soft-start with no “jump” when powered on

8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A

Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input

Automatic idle-current reduction

Suitable for 2-phase and 4-phase motors

Support PUL/DIR mode

Over-voltage and over-current protections

Motor Specification

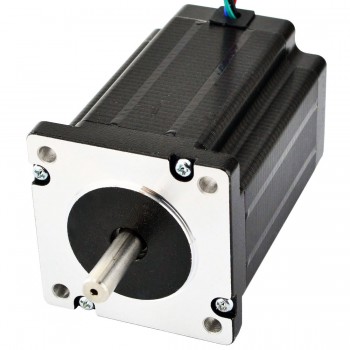

Manufacturer Part Number: 24HS34-3504D

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 3.1Nm(439oz.in)

Rated Current/phase: 3.5A

Voltage: 3.85V

Phase Resistance: 1.1ohms

Inductance: 5.6mH ± 20%(1KHz)

Frame Size: 60 x 60mm

Body Length: 88mm

Shaft Diameter: Φ8mm

Shaft Length: 24mm

D-cut Length: 20mm

Number of Leads: 4

Lead Length: 600mm

Weight: 1.34kg

Connection

Power Specification

36V DC 11A output

AC input voltage range: 93~132V/176

115V/230V AC selected by switch

Forced air cooling by built-in DC fan

Low output ripple and yawp

Over current, over voltage, short circuit and overheat protections

215*115*50mm (L*W*H)

Resources

Motor Datasheet: 24HS34-3504D.pdf

Motor Torque Curve: 24HS34-3504D_Torque_Curve.pdf

Driver Manual: DM542T.pdf

Power Supply Manual: S-400-36.pdf
