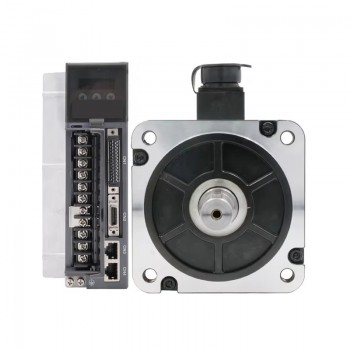

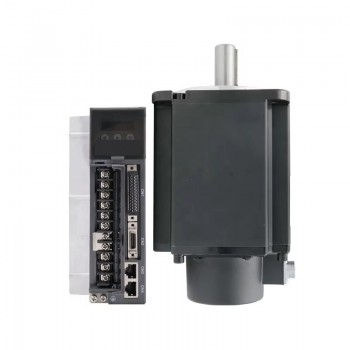

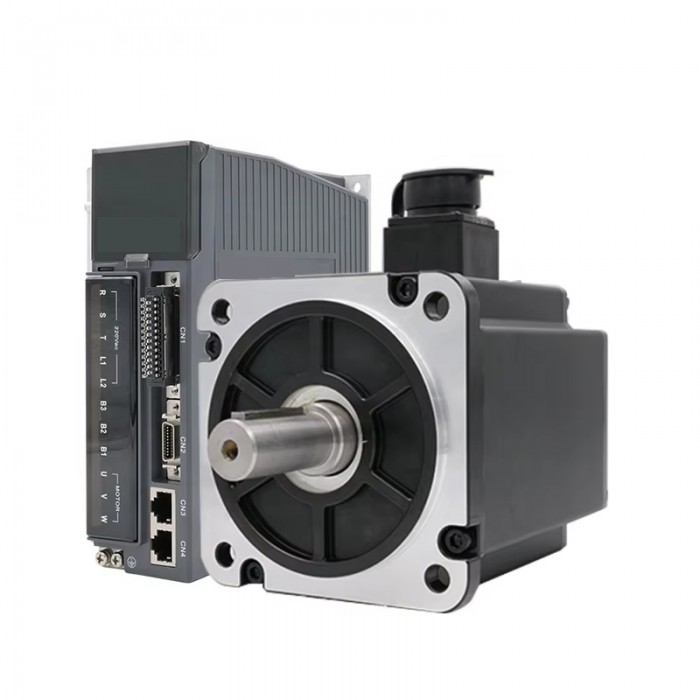

1500W AC Servo Motor & Driver Kit with Brake and 17 bit Absolute Magnetic Encoder 4.78N.m 5.6A 130x130mm

1500W AC Servo Motor & Driver Kit with Brake and 17 bit Absolute Magnetic Encoder 4.78N.m 5.6A 130x130mm

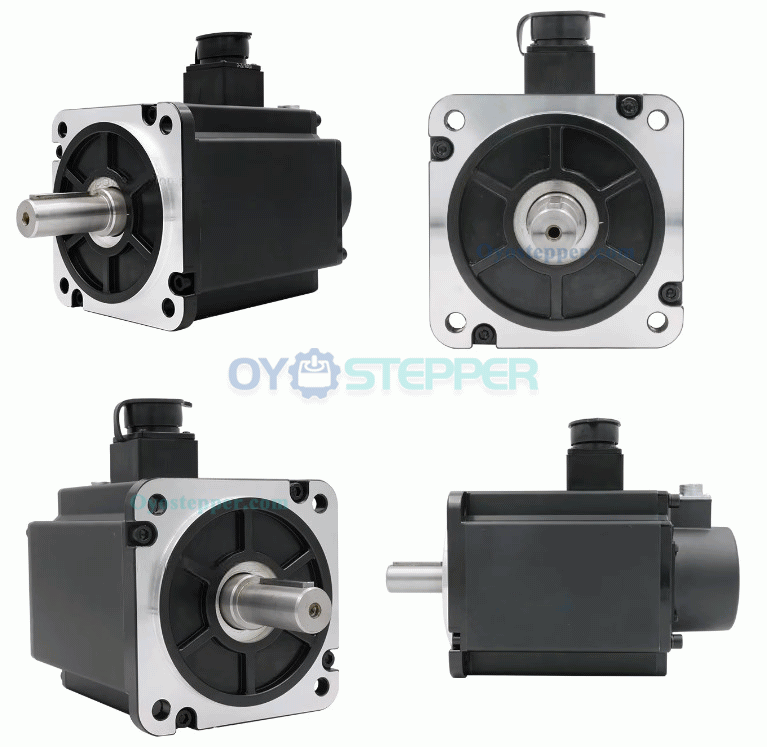

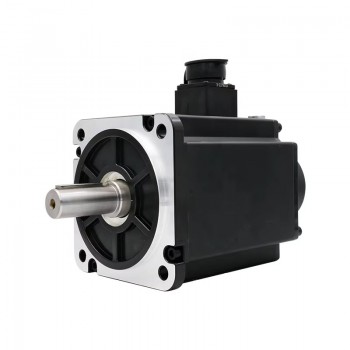

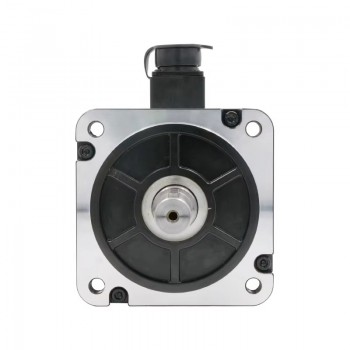

Servo Motor Specification
Part Number:130JASM515230K-17B-SC
Phase:Single-phase
Rated Power:1500W
Rated Torque:4.78N.m(676.90 oz.in)
Peak Torque:7.1N.m
Rated Speed: 3000RPM
No Load Speed:4000RPM
Power Supply:220V
Rated Current:5.6A
Poles:4;
Input Voltage:AC 180V-240V, 50/60Hz
Control Type:Pulse type
Rotor Inertia:6.1gcm²
Encoder:with 17 bit absolute magnetic encoder;
Brake:With Brake

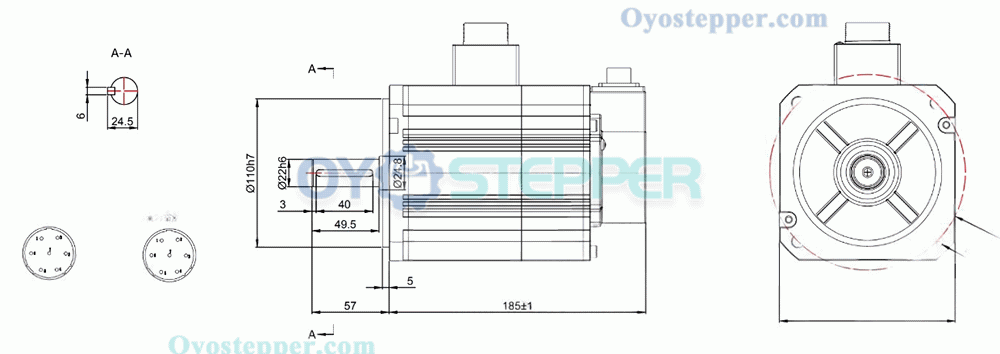

Physical Specifications:
Frame Size:130x130mm
Body Length withBrake:242mm
Shaft Diameter:22mm
Shaft Length:57mm
Keyway Length:40mm
Weight:8kg;

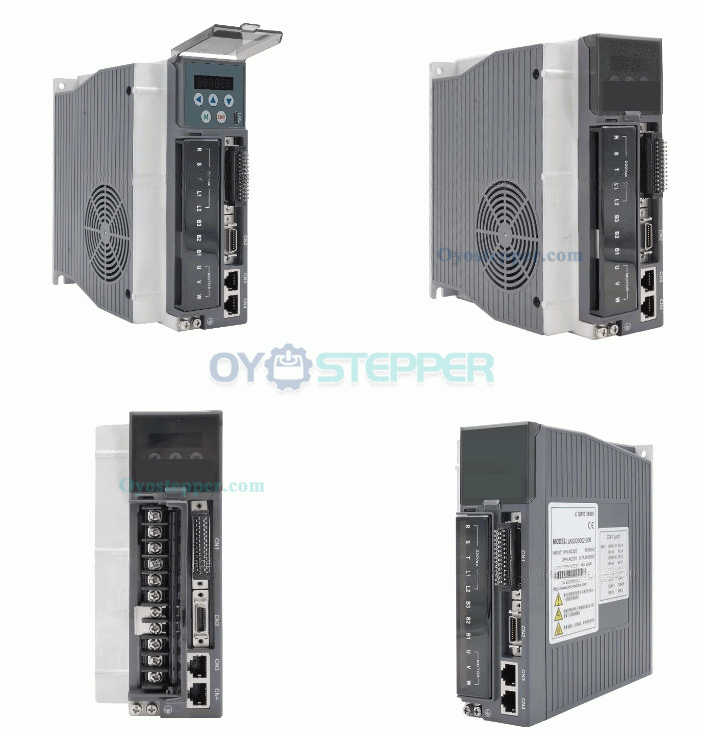

Servo motor driver specification:
Rated power:2KW
Single/3 phase 220V servo drive;
Single phase continuous input current:8.7A
Continuous output current:14A
Max output Current:33A
Input voltage:3 Phase AC 180V-240V, 50/60Hz;
Braking resistor:Built-in braking resistor;
Communication function:RS232, for debugging on PCRS485, support modbus protocol (only for reading data).

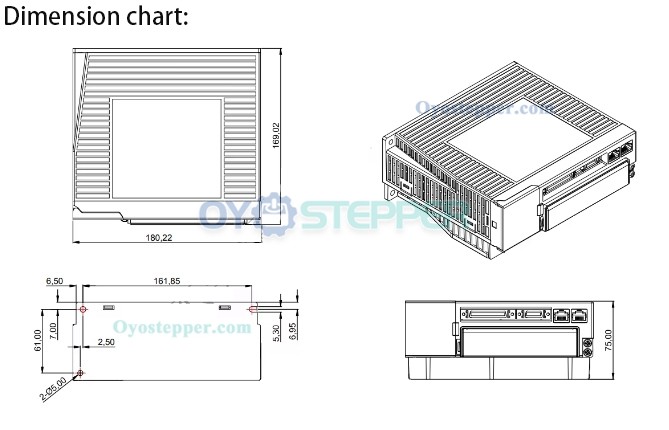

Dimension:180x169.5x75mm
Weight:4kg;
