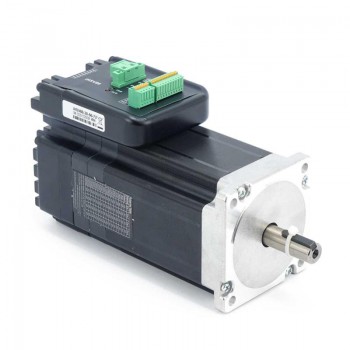

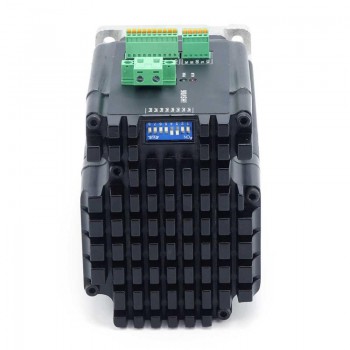

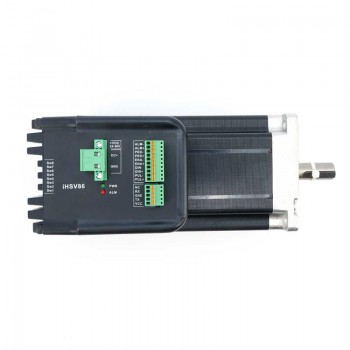

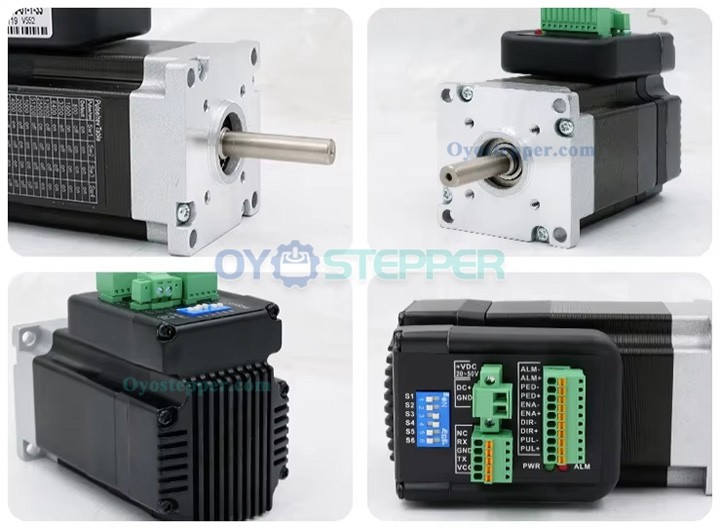

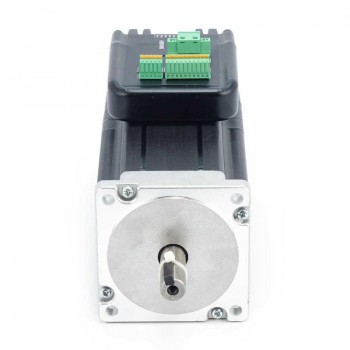

JMC Nema34 Integrated AC Servo Motor 440W 48V 1.4N.m 3000RPM for CNC Milling Lathe Machine
JMC Nema34 Integrated AC Servo Motor 440W 48V 1.4N.m 3000RPM for CNC Milling Lathe Machine
iHSV86-30-44-48 Integrated AC Servo Driving Motor is integrated AC servo drive into servo motor, adopts vector control in DSP chip, features in low cost, full closed loop, all digital, low heat, small vibration, and high response, as well as includes three adjustable feedback loop control modes(postition loop, speed loop, and current loop). iHSV86 is a series of stable performance, high cost-effective motion control products.
Electrical Specifications:
Manufacturer Part Number:iHSV86-30-44-48
Number of Phase:3
No-load Speed: 4200RPM +/- 7%
Rated speed: 3000RPM +/- 7%
Rated torque: 1.4N.m(198.25 oz.in)
Rated Voltage:48V
Rated Current:13.1A
Power:440W
Insulation Class:B;

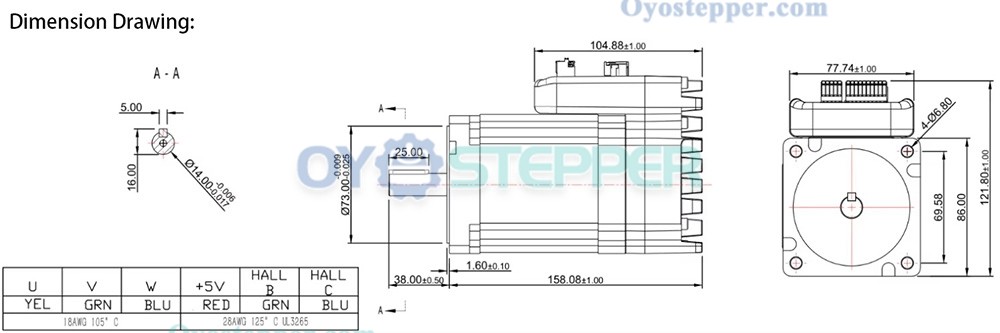

Physical Specifications:
Frame Size: 86 x 86mm
Body Length: 158mm
Shaft Length:38 mm
Shaft Diameter: Φ14 mm
Keyway Length: 25 mm
Weight: 3.57kg;

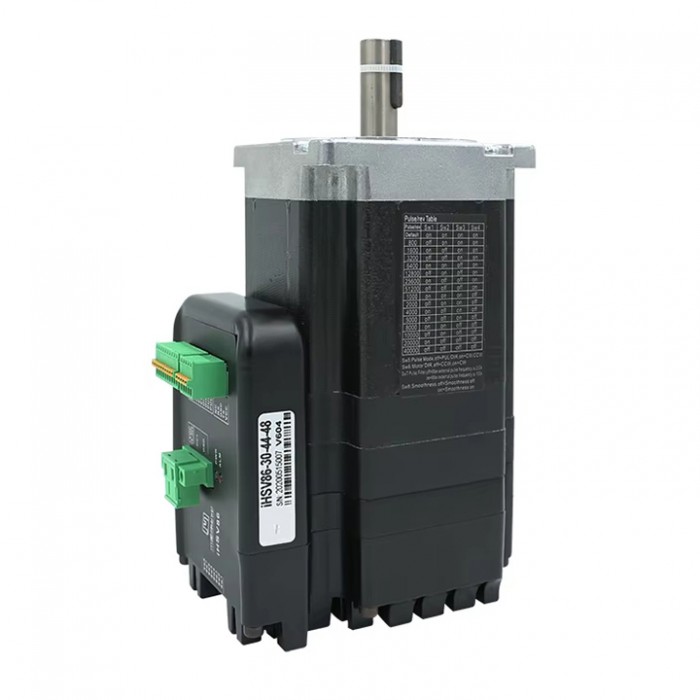

.jpg "JMC Nema34 Integrated AC Servo Motor 440W 48V 1.4N.m 3000RPM for CNC Milling Lathe Machine")
.jpg "JMC Nema34 Integrated AC Servo Motor 440W 48V 1.4N.m 3000RPM for CNC Milling Lathe Machine")

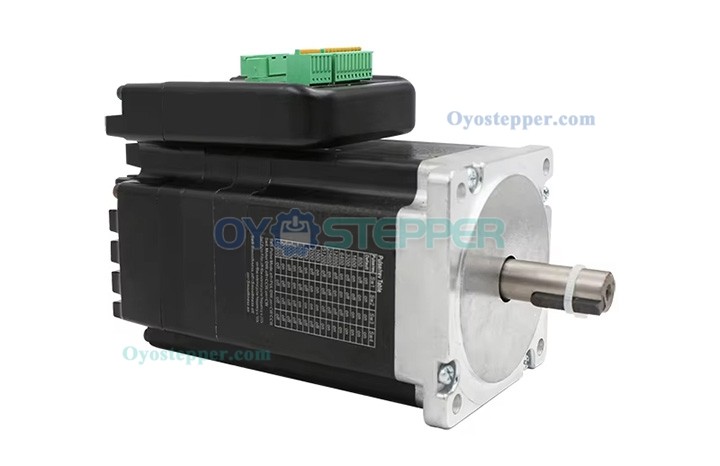

(1).jpg "JMC Nema34 Integrated AC Servo Motor 440W 48V 1.4N.m 3000RPM for CNC Milling Lathe Machine")

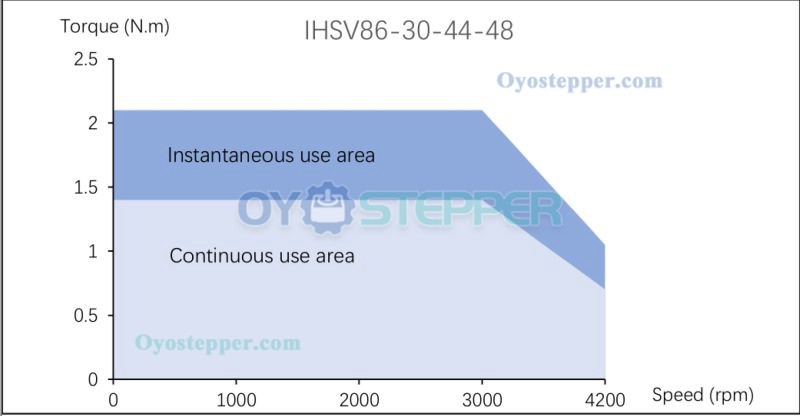

Torque diagram:
.jpg "JMC Nema34 Integrated AC Servo Motor 440W 48V 1.4N.m 3000RPM for CNC Milling Lathe Machine")
Datasheet:DS_iHSV86en_210622_rock.pdf
Manual:ihsv_v6_2020_manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Servo Motor Specification | |
|---|---|
| Rated Voltage | 48 |
| Rated Current | 13.1 |
| No-load Speed | 4200 |
| Number of Phase | 3 Phase |
| Rated Power(W) | 440 |
| Rated Speed(rpm) | 3000 |
| Rated Torque(Nm) | 1.4 |
| With Brake | Without brake |
| Physical Specification | |
| Body Length(mm) | 158 |
| Frame Size(mm) | 86 x 86 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 38 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 3.57 |
