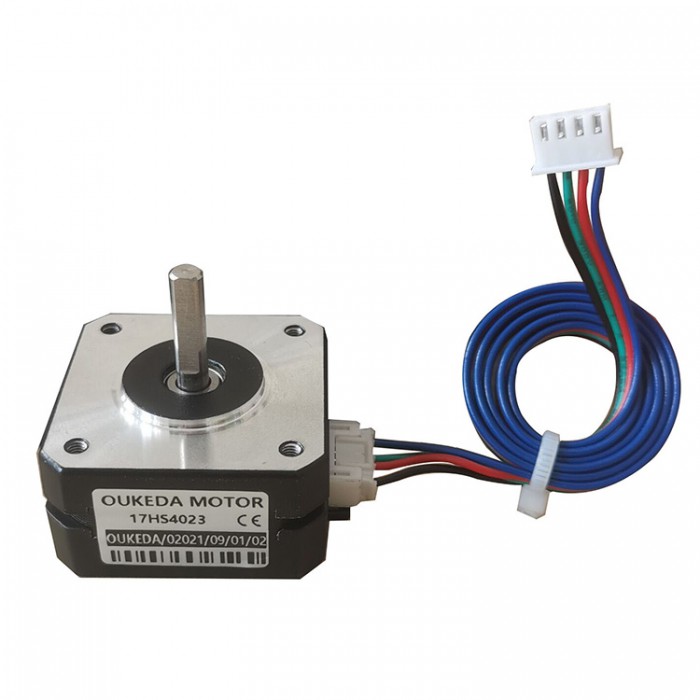

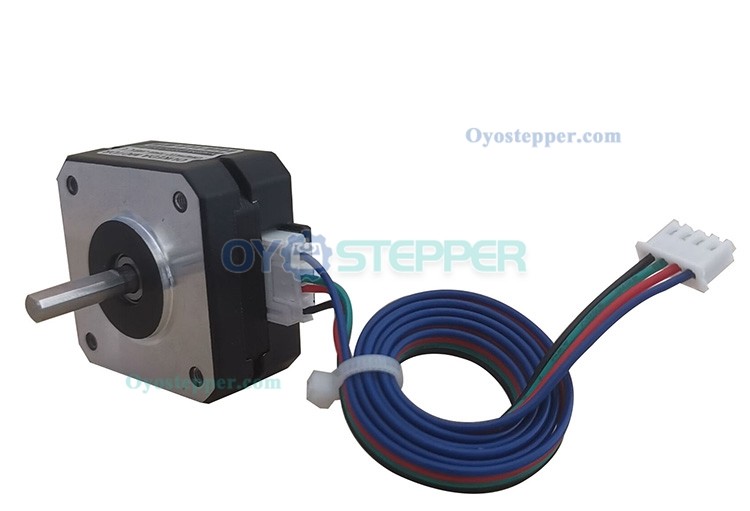

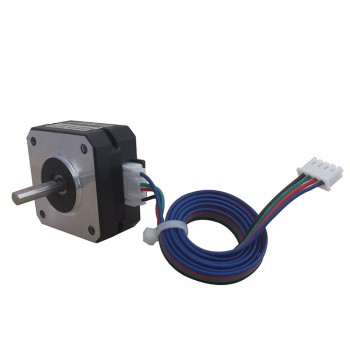

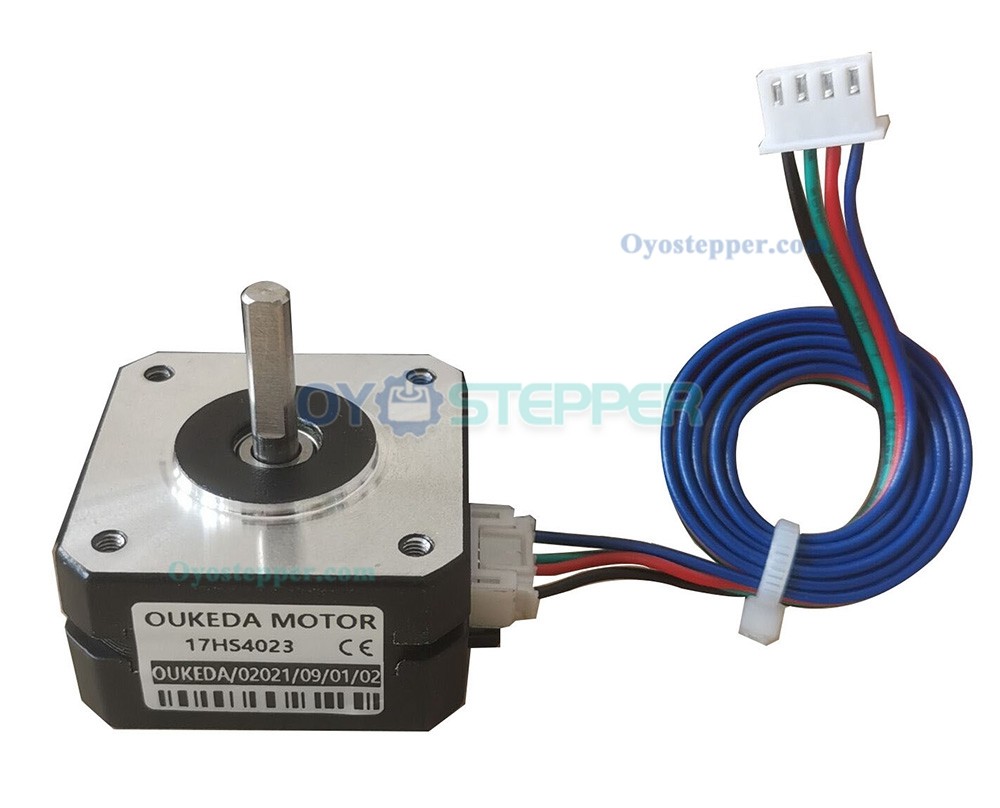

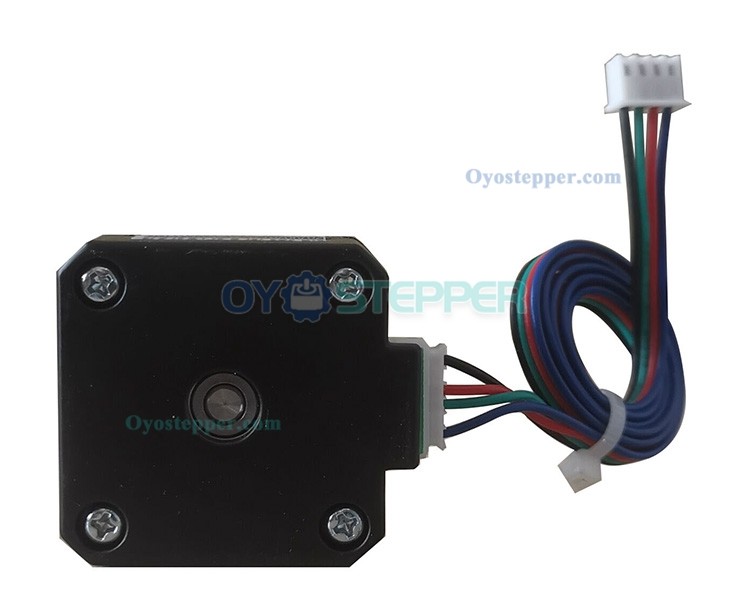

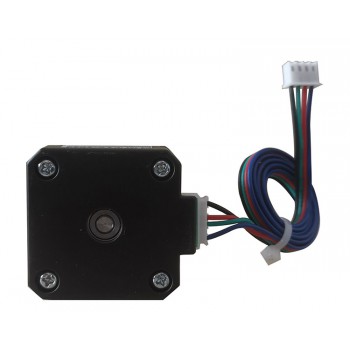

OUKEDA NEMA17 Stepper Motor 1.8 Deg 14 Ncm 1A For 3D Printer & Titan Extruder
OUKEDA NEMA17 Stepper Motor 1.8 Deg 14 Ncm 1A For 3D Printer & Titan Extruder
Electrical Specification
Manufacturer Part Number: 17HS4023
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Static torque:14 Ncm(19.82 oz.in)
Phase Voltage:4.1V
Phase Current:1.0 A
Use Voltage:12-36V
Phase Resistance: 4.1 ohms
Inductance: 3.6mH ± 20%(1KHz)

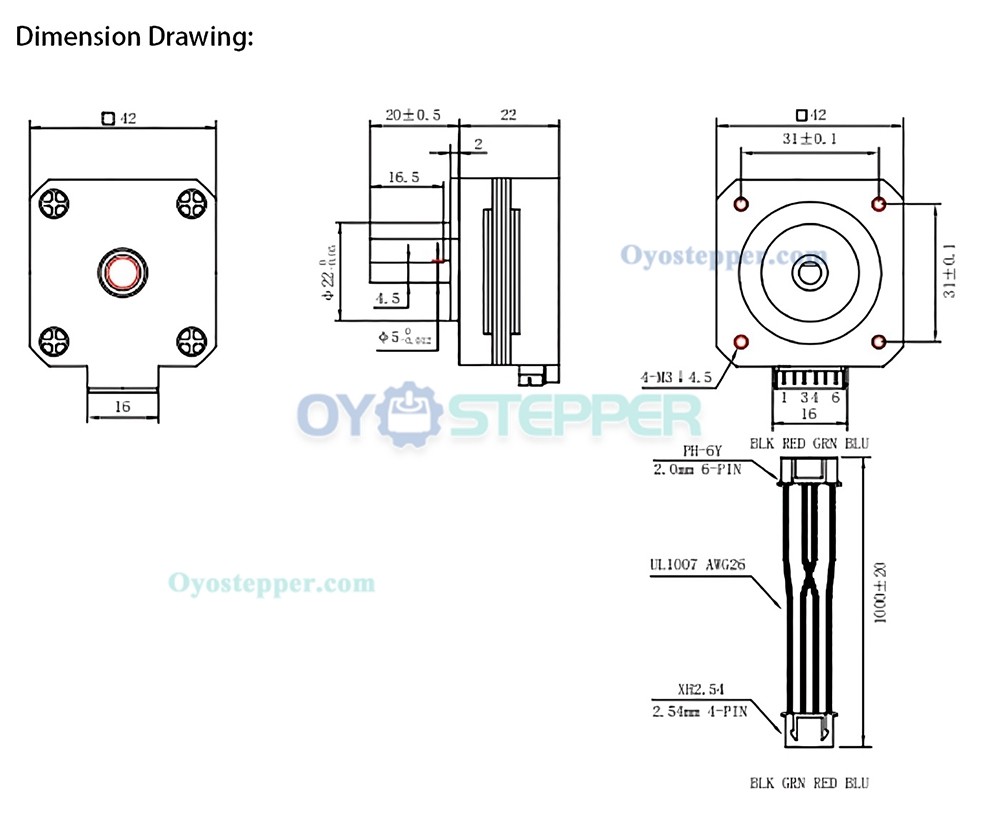

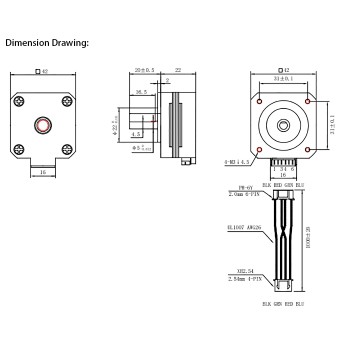

Physical Specification
Frame Size: 42 x 42mm
Body Length: 22mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 16.5mm
Number of Leads: 4
Weight:200g;
.jpg "OUKEDA NEMA17 Stepper Motor 1.8 Deg 14 Ncm 1A For 3D Printer & Titan Extruder")
.jpg "OUKEDA NEMA17 Stepper Motor 1.8 Deg 14 Ncm 1A For 3D Printer & Titan Extruder")
.jpg "OUKEDA NEMA17 Stepper Motor 1.8 Deg 14 Ncm 1A For 3D Printer & Titan Extruder")
(2).jpg "OUKEDA NEMA17 Stepper Motor 1.8 Deg 14 Ncm 1A For 3D Printer & Titan Extruder")
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 22mm |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5mm |
| Shaft Length(mm) | 20mm |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 200g |
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.6mH ± 20%(1KHz) |
| Phase Resistance(ohm) | 4.1 ohms |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 deg |
| Open-loop/Closed-loop | Open-loop |
