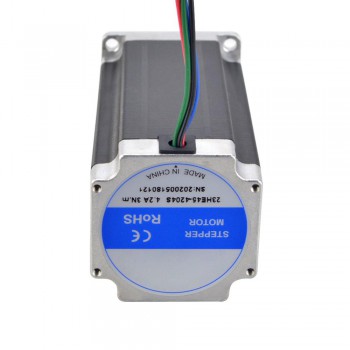

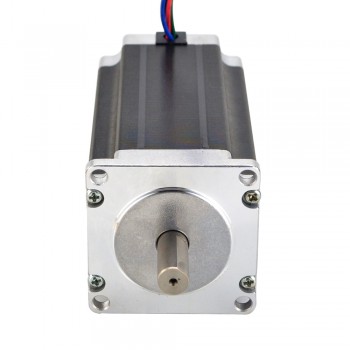

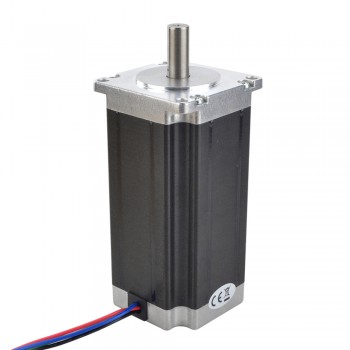

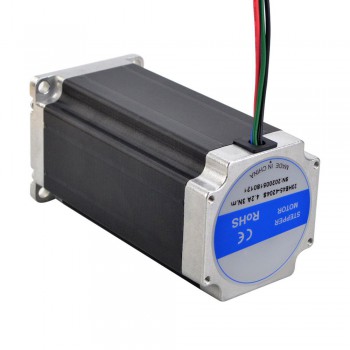

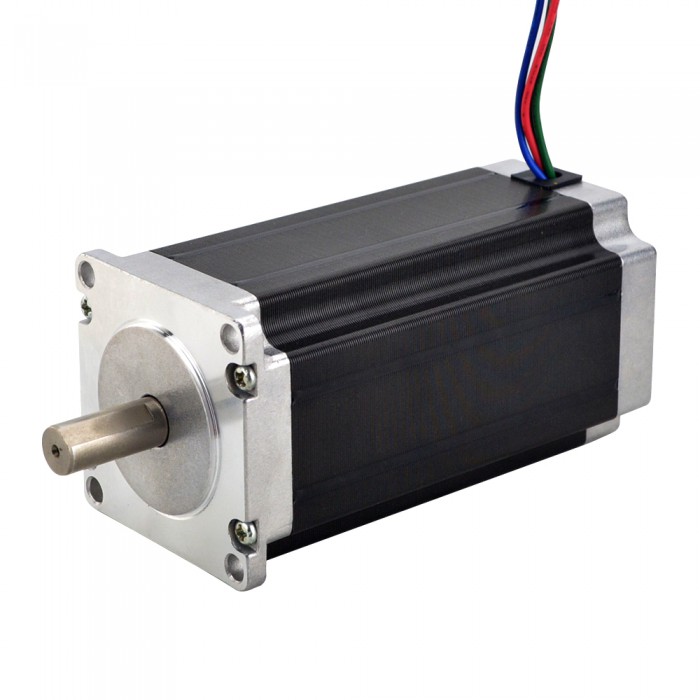

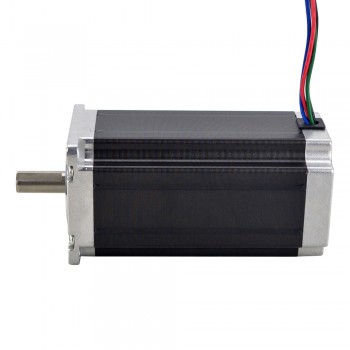

E Series Nema 23 Stepper Motor Bipolar 4 Wires 1.8 Degree 3.0 Nm(425oz.in) 4.2A 57x57x113mm
E Series Nema 23 Bipolar 1.8deg 3.0 Nm(425oz.in) 4.2A 57x57x113mm 4 Wires
Electrical Specification
Manufacturer Part Number: 23HE45-4204S
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 3.0 Nm(425oz.in)
Rated Current/phase: 4.2 A
Phase Resistance: 0.9 ohms± 10%
Inductance: 3.8 mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57 mm
Body Length: 113 mm
Shaft Diameter: Φ10 mm
Shaft Length: 24 mm
D-cut Shaft Length: 20 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 1.8 kg
Connection
| A+ | A- | B+ | B- |
| BLK | GRN | RED | BLU |
Resources
Full Datasheet:23HE45-4204S.pdf
Torque Curve:23HE45-4204S_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 113 |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 24 |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 1800 |
| Output Shaft Type | D-Cut |
| Electrical Specification | |
| Inductance(mH) | 3.8 |
| Holding Torque (Ncm) | 300 |
| Holding Torque (oz.in) | 425 |
| Phase Resistance(ohm) | 0.9 |
| Rated Current (A) | 4.2 |
| Step Angle(°) | 1.8 |
