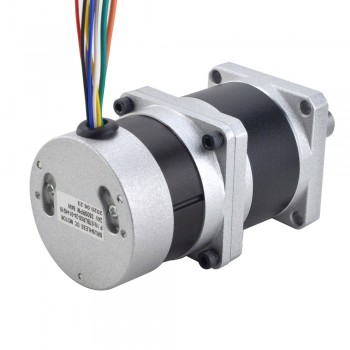

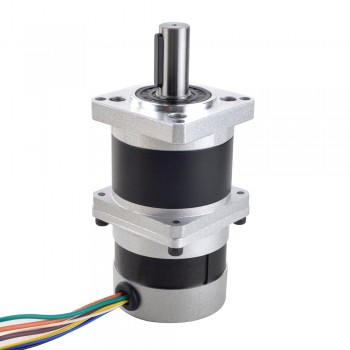

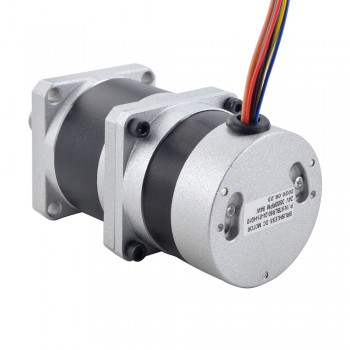

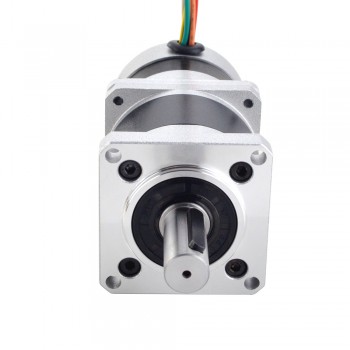

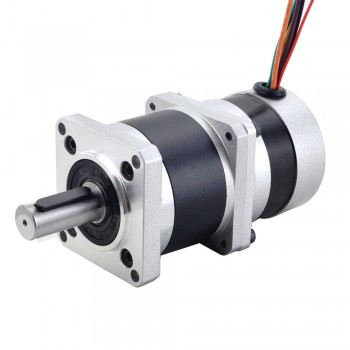

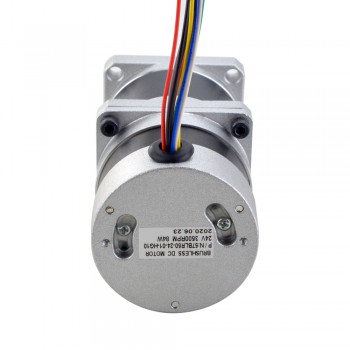

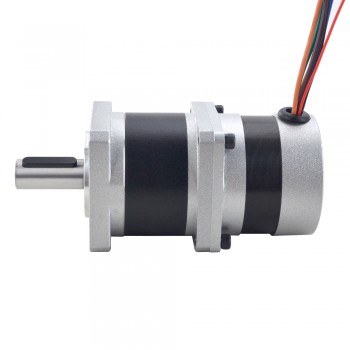

Geared Brushless DC Motor 24V 84W 350RPM 10:1 3 Phase BLDC Gear Motor with Gearbox
Geared Brushless DC Motor 24V 84W 350RPM 10:1 3 Phase BLDC Gear Motor with Gearbox
Electrical Specification
Manufacturer Part Number: 57BLR50-24-01-HG10
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 3500±10%RPM
Rated Torque: 0.23Nm(32.57oz.in)
Rated Current: 5±10%A
Rated Power: 84W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ57mm
Body Length: 49.1mm
Gearbox Length: 54mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 1.11kg
Gearbox Specifications
Gearbox Type: Planetary
Gear Ratio: 10 : 1
Efficiency: 85%
Backlash at No-load: <=0.8 deg
Max. Permissible Torque: 6Nm(849.7oz.in)
Moment Permissible Torque: 12Nm(1699.68oz.in)
Max. Radial Load: 250N
Insulation Class: B
Noise: <=50 dB
Ambient Temperature: 0 - 50℃
Connection
| U | V | W | +5V | GND | A | B | C |
| ORG | GRN | BRW | RED | BLK | YEL | WHT | BLU |
Resources
Full Datasheet57BLR50-24-01-HG10.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Rated Current (A) | 5 |
| No. of Phase | 3 |
| Rated Power(W) | 84 |
| Rated Torque(Nm) | 0.23 |
| Rated Voltage(V) | 24 |
| Physical Specification | |
| Body Length(mm) | 49.1 |
| Frame Size(mm) | Round 57 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Gear Ratio | 10 |
| Backlash at No-load | <=0.8 deg |
| Product Type | BLDC MOTOR |
| IP Rating | 20 |
