NEMA 11 External Ball Screw Stepper Motor Linear Actuator Bipolar 1.8 Deg 0.1Nm 1.0A Lead Revolution 2mm(0.07874") Lead Screw 150mm
NEMA 11 External Ball Screw Linear Stepper Motor 1.0A 46mm Stack Screw Lead 2mm(0.07874") Lead Length 150mm

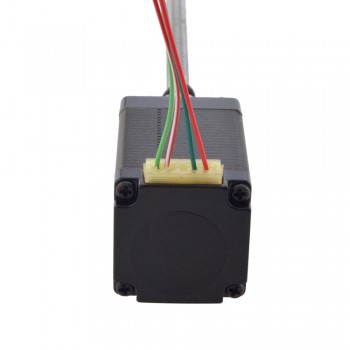

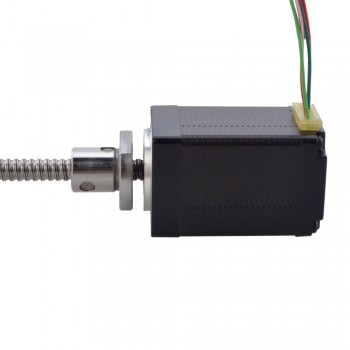

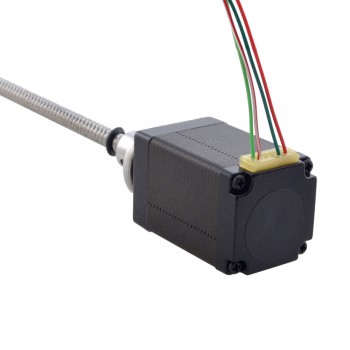

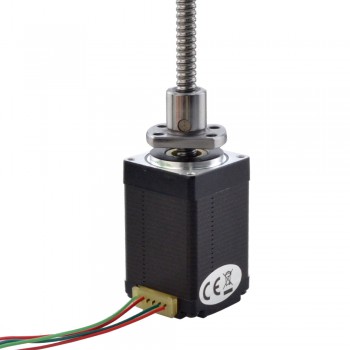

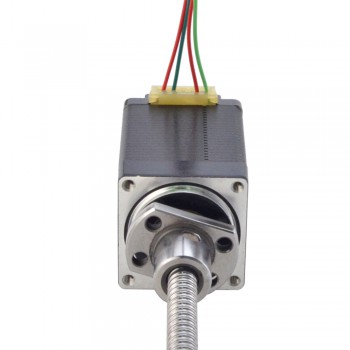

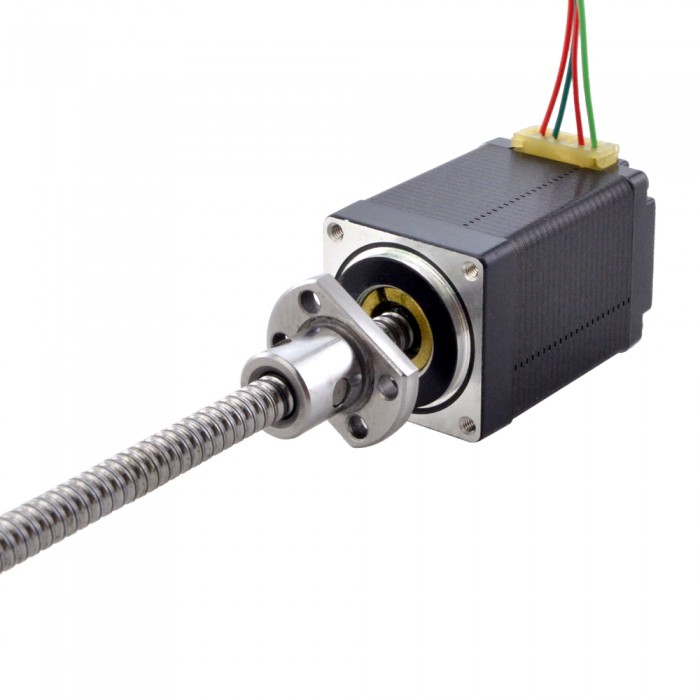

This model is a Nema 11 ball screw linear stepper motor with a 46mm body length, 1.8 degree step angle and 1A rated current. It is integrated with a 6mm(0.2362") diameter 150mm (5.9055") length ball screw length and a steel screw nut, the linear travel is 2mm(0.07874") per revolution.
Electrical Specification
Manufacturer Part Number: 11E18S1004BAM5-150RS
Motor Type: External (Ball Screw)
Step Angle: 1.8°
Holding Torque: 0.1Nm(14.16oz.in)
Rated Current/phase: 1A
Phase Resistance: 3ohms
Inductance: 2mH±20%(1KHz)
Accuracy Grade: C7
Physical Specification
Frame Size: 28 x 28mm
Body Length: 46mm

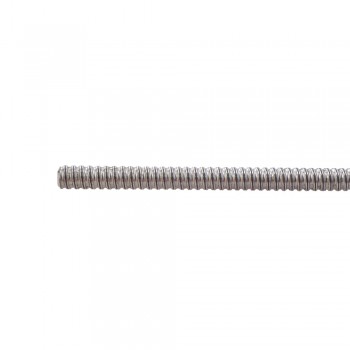

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6mm(0.2362")
Lead/Step: 0.01mm(0.0003937")
Lead Travel/Revolution: 2mm(0.07874")
Number of Leads: 4
Lead Length: 300mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
11E18S1004BAM5-150RS_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 2 |
| Phase Resistance(ohm) | 3 |
| Rated Current (A) | 1.0 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Ball Screw) |
| Physical Specification | |
| Body Length(mm) | 46 |
| Frame Size(mm) | Nema 11 (28 x 28) |
| Lead Length(mm) | 300 |
| Lead Screw Diameter(mm) | 6 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
| IP Rating | 40 |
