Dual Shaft Nema 23 Stepper Motor Unipolar 1.8 Deg 1.35Nm (191.2oz.in) 3A 3V 57x76mm 6 Wires

NO.:23HS30-3006D
Post a review

Special Offer in May 2024:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till May 20th, 2024
Note:No coupon code needed, please place order directly!

Our Price:$28.17

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$26.76	5%
10	$26.20	7%
50	$25.35	10%
100	$24.51	13%

Affiliate Link

Description Specification Custom Options Review

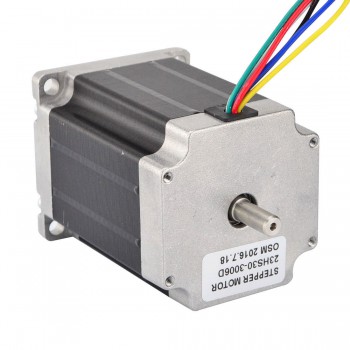

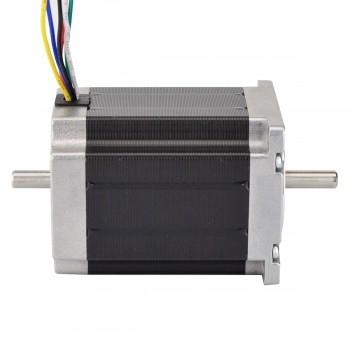

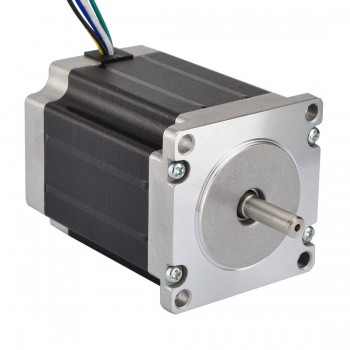

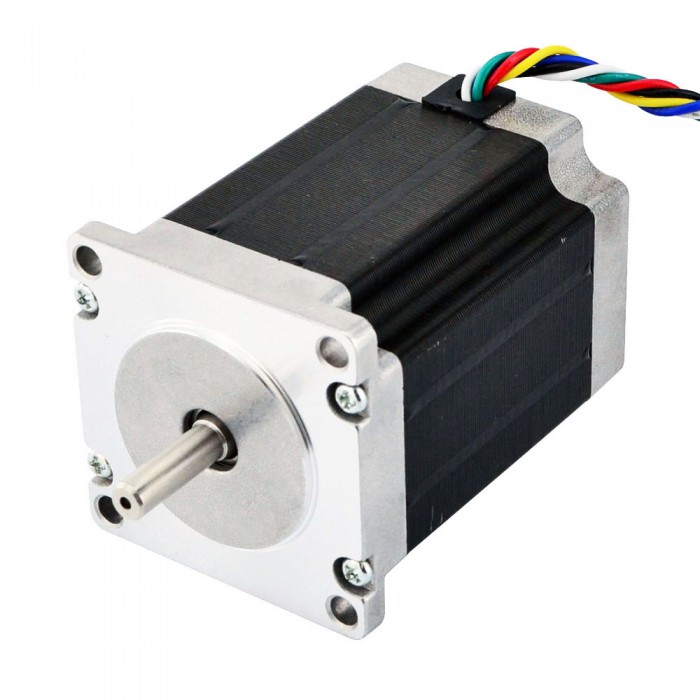

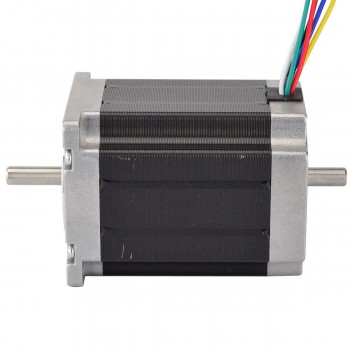

This unipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x76mm. It has 6 wires, each phase draws 3.0A, with holding torque 1.35Nm (191.2oz.in). A rear shaft can mount encoder, hand wheel or equals.

Electrical Specification

Manufacturer Part Number: 23HS30-3006D
Motor Type: Unipolar/Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque(Unipolar): 1.35Nm(191.2oz.in)
Holding Torque(Bipolar): 1.9Nm(269oz.in)
Rated Current/phase(Unipolar): 3.0A
Rated Current/phase(Bipolar): 2.12A
Voltage(Unipolar): 3V
Voltage(Bipolar): 4.24V
Phase Resistance(Unipolar): 1.0 ohms
Phase Resistance(Bipolar): 2.0 ohms
Inductance(Unipolar): 1.6mH ± 20%(1KHz)
Inductance(Bipolar): 6.4mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ6.35mm
Front Shaft Length: 21mm
Rear Shaft Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 1kg

Connection

A+	O+	A-	B+	O-	B-
BLK	YEL	GRN	RED	WHT	BLU

Resources

Full Datasheet: 23HS30-3006D.pdf
Torque Curver: 23HS30-3006D Torque Curve.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Hybrid Stepper Motor Bipolar 1.9Nm (269oz.in) 2.8A 3.2V 57x57x76mm 4 Wires
Next: Nema 23 Stepper Motor Bipolar 1.8 Deg 1.9Nm (269oz.in) 3A 3.36V 57x57x76mm 4 Wires CNC Stepping Motor

Electrical Specification
Bipolar/Unipolar	Unipolar
Holding Torque (Ncm)	135
Holding Torque (oz.in)	191.2
Inductance(mH)	1.6
Phase Resistance(ohm)	1
Rated Current (A)	3
Step Angle(°)	1.8
Physical Specification
Body Length(mm)	76
Frame Size(mm)	57x57
Single Shaft/Dual Shaft	Dual Shaft
Shaft Type	O
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
No. of Lead	6
Lead Length(mm)	500
Weight(g)	1000

Connectors: Molex, Harwin, Tyco/AMP, JST etc.
Lead wires & cables: Special lengths, Protective hose
Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Winding: Resistance, Inductance, Rated Current, etc.
